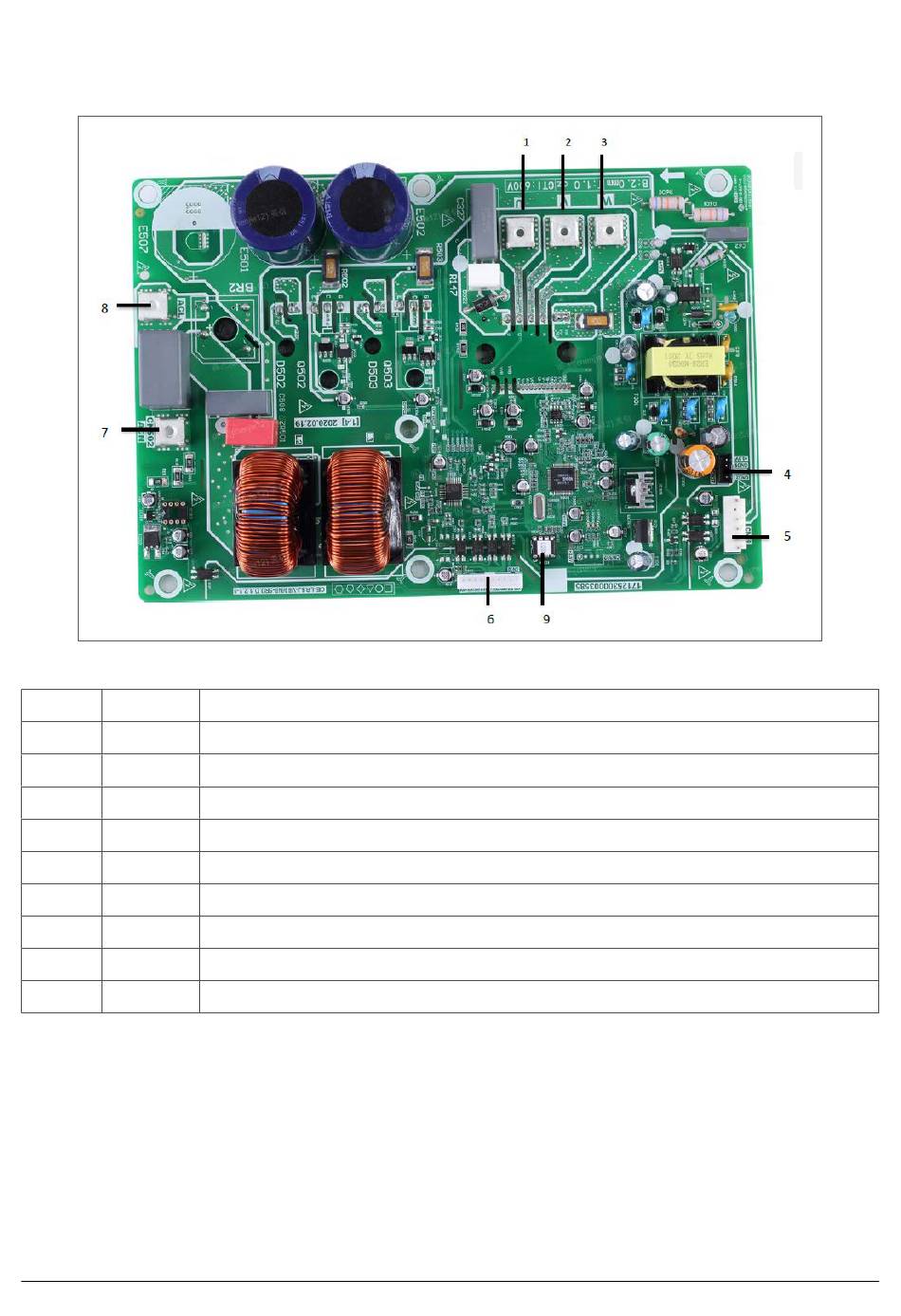

LAYOUT OF PCB BOARDS
Inverter module - 2.1. - 3.1
6.6
Rif
Sign
1
U
2
V
3
W
4
CN20
5
CN19
6
CN32
7
CN502
8
CN501
9
1C320
Description
Compressor connection port U
Compressor connection port V
Compressor connection port W
Output port for +12V/9V
Port for fan
Port for communication with main PCB for filter board
Input port L for rectifier bridge
Input port N for rectifier bridge
EEPROM
44
