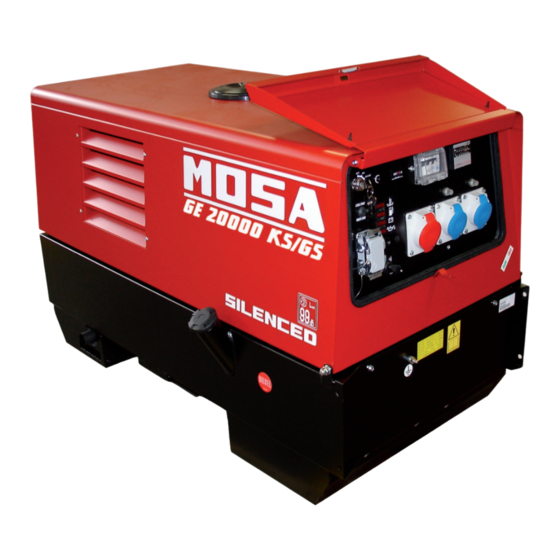

Mosa GE 20000 KS Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. Mosa Manuals
  4. Inverter
  5. GE 20000 KS
  6. Use and maintenance manual

Mosa GE 20000 KS Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USE AND MAINTENANCE MANUAL
GE 20000 KS/GS
M A D E
I N
I T A L Y
Codice
Code
250309003
Codigo
Kodezahl
Edizione
Edition
06.2014
Edición
Ausgabe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE 20000 KS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mosa GE 20000 KS

Summary of Contents for Mosa GE 20000 KS

  • Page 1 USE AND MAINTENANCE MANUAL Codice Code 250309003 Codigo GE 20000 KS/GS Kodezahl Edizione Edition 06.2014 Edición Ausgabe M A D E I T A L Y...

  • Page 3: Vibration Damper

    DESCRIPTION OF THE MACHINE GE 20000 KS/GS REV.0-06/14 The generating set GE is a unit which transforms the mechanical energy, generated by endothermic engine, into electric energy, through an alternator. Is meant for industrial and professional use, powered by an endothermic engine; it is composed of various main parts such as: engine, alternator, electric and electronic controls, the fairing or a protective structure.
  • Page 5 · Competent support in the solution of problems; ofthe International Certification Network IQNet, · Information and training in the correct applicatio- awarded the official approval to MOSA after an- nand use of the products to assure the security examination of its operations at the head office ofthe operator and protect the environment;...
  • Page 6 INDEX REV.3-04/14 M 01 QUALITY SYSTEM M 1.01 COPYRIGHT M 1.1 NOTES M 1.4 CE MARK M 1.4.1 DECLARATION OF CONFORMITY M 1.5 TECHNICAL DATA M 1.6 TECHNICAL DATA ENGINE DRIVEN WELDER ADVICE M 2.1 SYMBOLS AND SAFETY PRECAUTIONS M 2.6 INSTALLATIONS AND ADVICE M 2.7 INSTALLATION...
  • Page 7 (see page M1.1). All rights are reserved to said Company.  It is a property logo of MOSA division of B.C.S. S.p.A. All other possible logos contained in the documen- tation are registered by the respective owners.

  • Page 8: Notes About The Manual

    Notes REV.1-03/14 INFORMATION INFORMATION OF GENERAL TYPE In the envelope given together with the machine and/or Dear Customer, set you will find: the manual for Use Maintenance and We wish to thank you for having bought a high quality set. Spare Parts, the manual for use of the engine and the tools (if included in the equipment), the guarantee (in the Our sections for Technical Service and Spare Parts will...
  • Page 9 CE MARKING REV.7-02/14 Any of our product is labelled with CE marking attesting its conformity to appliable directives and also the fulfillment of safety requirements of the product itself; the list of these directives is part of the declaration of conformity included in any machine standard equipment. Here below the adopted symbol: CE marking is clearly readable and unerasable and it can be either part of the data-plate.

  • Page 10: Dichiarazione Di Conformita

    Konformitätserklärung Dichiarazione conformità Declaration of conformity Declaración de conformidad 1.4.1 Déclaration de conformité Declaração de conformidade REV.2-10/13 BCS S.p.A. Stabilimento di Cusago, 20090 (Mi) - Italia V.le Europa 59 Sede legale: Tel.: +39 02 903521 Via Marradi 1 Fax: +39 02 90390466 20123 Milano - Italia DICHIARAZIONE DI CONFORMITA' Déclaration de Conformité...
  • Page 11 Technical data GE 20000 KS/GS REV.0-06/14 Technical data GE 20000 KS/GS GENERATOR Stand-by three-phase power 20 kVA (16 kW) / 400 V / 28.9 A PRP three-phase power 18 kVA (14.4 kW) / 400 V / 26 A PRP single-phase power 9 kVA / 230 V / 39.1 A...
  • Page 12 WARNINGS REV.1-02/14 The installation and general warnings regarding operations are aimed achieving correct use of the machine and/or apparatus in the place where it is used as a genset and/or motor welder. - Advice to the User about the safety: + NB: The information contained in the manual can be changed without notice.

  • Page 13: Symbols And Safety Precautions

    SYMBOLS AND SAFETY PRECAUTIONS REV.2-06/10 SYMBOLS PROHIBITIONS No harm for persons Use only with safety clothing - STOP - Read absolutely and be duly attentive It is compulsory to use the personal protection means given in equip- ment. Use only with safety clothing - Read and pay due attention It is compulsory to use the personal protection means given in equipment.

  • Page 14: Gasoline Engines

    INSTALLATION AND ADVICE REV.1-06/07 Check that the air gets changed completely and the hot INSTALLATION AND ADVICE BEFORE USE air sent out does not come back inside the set so as to cause a dangerous increase of the temperature. GASOLINE ENGINES Use in open space, air swept or vent exhaust gases, which contain the deathly carbone oxyde, far from the work area.
  • Page 15 Installazione Luftzirkulation Installation Instalación GE 20000 KS/GS Installation GE 10 KSX REV.0-06/14...
  • Page 16 Dimensioni Abmessungen Dimensions Dimensiones GE 20000 KS/GS 2.7.1 Dimensions GE 10 KSX REV.0-06/14...
  • Page 17 UNPACKING REV.1-02/04 NOTE + Be sure that the lifting devices are: correctly mounted, adequate for the weight of the machine with it’s pack- aging, and conforms to local rules and regulations. When receiving the goods make sure that the product has not suffered damage during the transport, that there has not been rough handling or taking away of parts contained inside the packing or in the set.
  • Page 18 TRANSPORT AND DISPLACEMENTS COVERED UNITS REV.1-06/10 NOTE Transportation must always take place with the engine off, electrical cables and starting battery disconnected and fuel tank empty. Be sure that the lifting devices are: correctly mounted, adequate for the weight of the machine with it’s packaging, and conform to local rules and regulations.
  • Page 19 CTL400 ASSEMBLY REV.0-06/00 ATTENTION The CTL accessory cannot be removed from the machine and used separately (actioned manually or following vehicles) for the transport of loads or anyway for used different from the machine movements. TRAILERS The machines provided for assembling the CTL accessory (slow towing trolley) can be towed up to a maximum speed of 40 Kms/hour on asphalted surfaces.

  • Page 20: Grounding Connection

    Set-up for operation (Engine diesel) Air cooled systems REV.1-09/05 OIL BATH AIR FILTER BATTERY WITHOUT MAINTENANCE Connect the cable + (positive) Fill the air filter using the same engine oil up to the to the pole + (positive) of the level indicated on the filter.
  • Page 21 ENGINE STARTING AND USE (DIESEL ENGINES) REV.0-06/99 ENGINES WITHOUT ACCELERATOR LEVER Check daily lnsert the electric protection device (D-Z2-N2) lever towards above and, where mounted, check the isolation monitor (A3) see page M37 – NOTE Introduce the key (Q1), turn it clockwi- START se completely, leaving it as soon as Do not alter the primary conditions of regulation...
  • Page 22 ENGINE STARTING AND USE (DIESEL ENGINES) 21.1 REV.0-06/99 ENGINE WITH PREHEATING GLOW PLUGS Turn the starter key (Q1) on the position "prehea- ting glow plugs" (the glow plugs light will be on I4), when the light is off, turn the starter key completely clockwise until the engine begins to fire.
  • Page 23 STOPPING THE ENGINE (DIESEL ENGINE) REV.0-10/00  Before stopping the engine it is compulsory to Remove the key (Q1) turning it counter clockwise, OFF position, then take it out. effect the following operations: START - stop to draw three/single-phase current from the auxiliary sockets.
  • Page 24 CONTROLS LEGENDE REV.3-04/13 Hydraulic oil level light Exclusion indicating light PTO HI Selection push button 30 l/1' PTO HI Welding socket ( + ) Auxiliary current push button Battery voltmeter Welding socket ( - ) Fuel level light Remote control socket Earth terminal E.A.S. PCB Button indicating light 20 l/1' PTO HI A.C. socket Control unit for generating sets QEA Commutator/switch, serial/parallel Accelerator lever Thermal-magnetic circuit breaker Ground fault interrupter ( 30 mA ) Feed pump Selection push button 20 l/1' PTO HI Engine control unit and economiser 48V D.C. socket Water temperature indicator Engine air filter Ammeter Oil level dipstick Frequency meter Engine oil reservoir cap Frequency rpm regulator 24A Hydraulic oil reservoir cap Voltmeter regulator 24B Water filling cap Fuse Fuel prefilter Stop switch Fuel tank cap Warning light, high temperature Muffler...
  • Page 25 Comandi Controls GE 20000 KS/GS Commandes REV.0-06/14 Q1 F Schuko version (SR) (SR)
  • Page 26 Using the generator REV.3-11/11 are the same. WARNING + In the absence of a load, the values for voltage and frequency can be greater than their nominal values. See It is absolutely forbidden to connect the unit sections on VOLTAGE and FREQUENCY. to the public mains and/or another electrical power source .
  • Page 27 Using the generator REV.1-09/05 The frequency, and therefore the number of motor SINGLE-PHASE LOADS revolutions, is maintained constant by the motor’s speed Power to monophase utilities by means of three-phase regulation system. generators requires some operating limitations. Generally, this regulator is of a mechanical type and - In single-phase operation, the declared voltage presents a droop from no-load to nominal load which tolerance can no longer be maintained by the regulator...

  • Page 28: Differential Switch

    Using the generator REV.1-09/05 DIFFERENTIAL SWITCH USAGE WITH EAS AUTOMATIC START-UP PANEL The differential switch or differential relay guarantee The electricity-generating group in combination with the protection against indirect contacts due to malfunction EAS automatic start-up panel forms a unit for distributing currents towards the ground.
  • Page 29 TCM 22 - 40 REMOTE CONTROL 38.5. REV.1-02/03 MAKE SURE  When the TCM 22-40 is used, it is not possible to connect the E.A.S automatic intervention unit.  The selector LOCAL START/REMOTE START (I6) of the generating set must be switched on REMOTE START.
  • Page 30 USE OF THE PROTECTION ENGINE PROTECTION 39.4 ES - EV REV..1-04/03 ENGINE PROTECTION (ES - EV) The devices ES or EV ensure the protection of the engine in case of low oil pressure or engine high temperature. The system consist of electronic card of control High temperature and check, and of an engine stop device: solenoid (ElettroStop), electrovalve (ElettroValvola)

  • Page 31: Troubleshooting

    Diesel engine 40.2 Troubleshooting REV.3-07/06 Problem Possible cause Solution ENGINE The motor does not start up 1) Start-up switch (I6) (where it is assembled) in 1) Check position incorrect position 2) Emergency button (L5) pressed 2) Unblock 3) Preheating (where it is assembled) 3) Lacking or insufficient preheating phase for sparkplugs.
  • Page 32 Troubleshooting Diesel engine 40.2. REV.4-03/11 Problem Possible cause Solution GENERATOR Absence of output voltage Voltage switch in position 0 Check position Voltage switch faulty Check connections and working of the switch, repair or replace Protection tripped due to overload Check the load connected and diminish Differential protection device tripped.
  • Page 33 MAINTENANCE REV.1-01/13 WARNING ● Have qualified personnel do maintenance and troubleshooting work. ● Stop the engine before doing any work inside the machine. If for any reason the machine must be operated while working inside, pay at- tention moving parts, hot parts (exhaust manifold and muffler, etc.) electrical parts which may be unprotected when the machine is open.

  • Page 34: Maintenance

    43.1 MAINTENANCE REV.0-09/05 ATTENTION Maintenance operations on the electricity-generating group prearranged for automatic operation must be carried out with the panel in RESET mode. Maintenance operations on the installation’s electrical panels must be carried out in complete safety by cutting off all external power sources: ELECTRICAL POWER, GROUP and BATTERY.

  • Page 35: Gasoline Engine

    STORAGE REV.0-06/07 In case the machine should not be used for more than 30 days, make sure that the room in which it is stored presents a suitable shelter from heat sources, weather changes or anything which can cause rust, corrosion or damages to the machine.
  • Page 36 CUST OFF REV.0-06/07 Have qualified personnel disassemble the In case of necessity for first aid and fire prevention, machine and dispose of the parts, including the see page M2.5. oil, fuel, etc., in a correct manner when it is to be taken out of service.
  • Page 37 ELECTRICAL SYSTEM LEGENDE REV.10-05/13 A : Alternator E3 : Open circuit voltage switch I6 : Start Local/Remote selector N9 : UP/DOWN button mast B : Wire connection unit F3 : Stop push-button L6 : Choke button O9 : Hydraulic unit solenoid valve C : Capacitor G3 : Ignition coil M6 : Switch CC/CV P9 : Hydraulic unit engine D : G.F.I. H3 : Spark plug N6 : Connector – wire feeder Q9 : Ignitor E : Welding PCB transformer I3 : Range switch O6 : 420V/110V 3-phase transformer...
  • Page 38 Stromlaufplan Schema elettrico Electric diagram Esquema eléctrico GE 20000 KS/GS 61.1 Schemas electriques REV.0-06/14...
  • Page 39 Stromlaufplan Schema elettrico Electric diagram Esquema eléctrico GE 20000 KS/GS 61.2 Schemas electriques REV.0-06/14...
  • Page 40 Stromlaufplan Schema elettrico Electric diagram Esquema eléctrico GE 20000 KS/GS 61.3 Schemas electriques REV.0-06/14...
  • Page 42 WWW.MOSA.IT MOSA div. della BCS S.p.A. Stabilimento di Viale Europa, 59 20090 Cusago (MI) Italia Tel. + 39 - 0290352.1 Fax + 39 - 0290390466...
