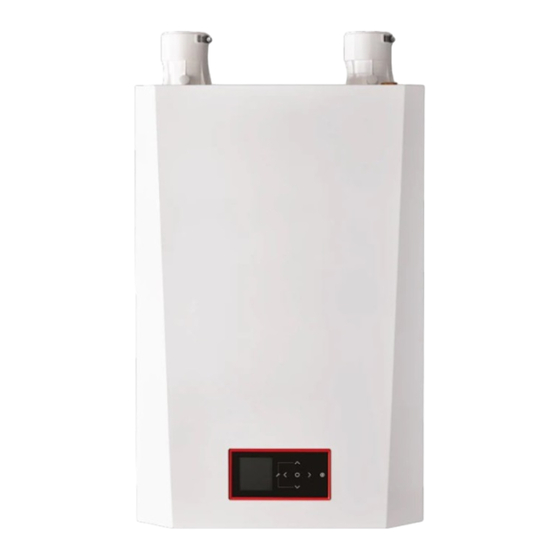

Instinct
Propane to Natural Gas Conversion
Kit Part Number
INSRKIT135
INSRKIT136
INSRKIT137
Kit Part Number
•
Natural Gas Venturi
•
Venturi Inlet Seal
•
Venturi/Blower O Ring
•
Venturi/Blower Screws
•
Gas Pipe Gaskets
•
Rating Label
•
Conversion Label
WARNING
!
Indicates a potentially hazardous situation which,
if ignored, can result in serious injury or substan-
tial property damage.
WARNING
!
For your safety, turn off electrical power supply
at service panel and allow unit to cool before pro-
ceeding to avoid possible electrical shock and
scald hazard. Failure to do so can cause severe
personal injury or death.
NOTICE
Upon completion of the conversion from Natural to Pro-
pane, Remove the Propane rating label
2019-41 Instinct LP to NG Conversion
Revision Date: 9/12/2022
Description
LP to NG Conversion
LP to NG Conversion
LP to NG Conversion
Recommended Tools
•
Adjustable Wrench / 10 mm Socket & Ratchet
•
Phillips Head Screwdriver
•
Flat Head Screwdriver
•
Calibrated Combustion Analyzer
NOTICE
Indicates special instructions on installation, operation
or maintenance, which are important to equipment
but not related to personal injury hazards.
WARNING
!
Failure to follow instructions below can result in
severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/ ser-
vice technician only.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
NOTICE
These instructions cover LP to NG conversion for Instinct
boilers only. Each kit is supplied with one venturi suitable
for use with that particular boiler model.
Model
Instinct 110 Solo
Instinct 155 Solo & Combi
Instinct 199 Solo & Combi
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TriangleTube INSRKIT135
Summary of Contents for TriangleTube INSRKIT135
- Page 1 Instinct Propane to Natural Gas Conversion Kit Part Number Description Model INSRKIT135 LP to NG Conversion Instinct 110 Solo INSRKIT136 LP to NG Conversion Instinct 155 Solo & Combi INSRKIT137 LP to NG Conversion Instinct 199 Solo & Combi Kit Part Number Recommended Tools •...
- Page 2 INSTINCT PROPANE TO NATURAL CONVERSION INSTRUCTIONS 1. Preliminary Instructions: 1. Verify that the venturi replacement kit is correct for the model of boiler. See page 1. 2. Turn off electrical power supply to the boiler. 3. Close the manual gas shut off valve to the unit. 4.
- Page 3 INSTINCT PROPANE TO NATURAL CONVERSION INSTRUCTIONS WARNING WARNING Failure to retain the O-ring gasket between the ventu- Do not check for gas leaks with an open flame. Use a ri and the blower will cause an improper seal resulting bubble test. Failure to test for gas leaks can result in in a potential risk of a gas leak.
- Page 4 INSTINCT PROPANE TO NATURAL CONVERSION INSTRUCTIONS 5. Scroll down to highlight Appliance Setting then Manual Operation press the center button. Released 6. Enter the Natural Gas (NG) appliance code from the rating label by using the LEFT and RIGHT but- tons to select a character and the UP and DOWN buttons to change the character.
- Page 5 INSTINCT PROPANE TO NATURAL CONVERSION INSTRUCTIONS 9. Press the CENTER button while the fan icon is high- 11. Replace the front panel and put the boiler back lighted to shutdown the burner. into operation. 10. Press the LEFT or RIGHT button to highlight the home screen icon to exit the service mode.
