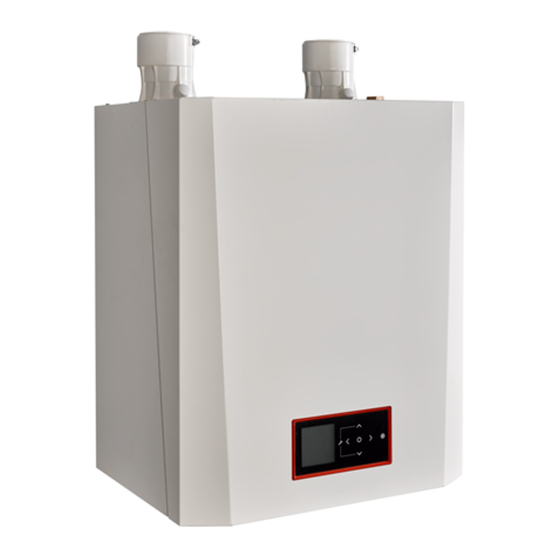

TriangleTube Instinct Solo Series Instructions Manual

TriangleTube Instinct Solo Series Instructions Manual

Natural gas (ng) to propane gas (lp) conversion
Hide thumbs Also See for Instinct Solo Series:

Advertisement

Quick Links

Natural Gas (NG) to Propane Gas (LP) Conversion Instructions
These instructions shall be kept with the appliance literature for future reference.
Do not use the appliance with Propane Gas (LP) unless these Conversion Instructions have
This conversion kit shall be installed by a qualified installer, service agency, or the gas
supplier in accordance with the manufacturer's instructions and all applicable codes and
If the information in these instructions is not followed exactly, a fire, an explosion, or
production of carbon monoxide can result causing property damage, personal injury, or loss
The qualified installer, service agency, or the gas supplier is responsible for the proper
installation of this kit. The installation is not proper and complete until the operation of the
converted appliance is checked as specified in this manufacturer's instructions supplied with
Whenever possible, conversion should be carried out before installing and connecting the boiler.
When you convert the appliance from Natural Gas (NG) to Propane Gas (LP), always make sure
that all conversion work is complete before fully installing the air inlet piping.
DEFINITIONS
The following terms are used throughout this
manual to bring attention to the presence of
potential hazards or to important information
concerning the product.
Indicates the presence of a hazardous
situation which, if ignored, will result in
substantial property damage, serious
227797 A04
Revision Date: 05/2024
Instinct Solo/Combi
been fully implemented.
requirements of the authority having jurisdiction.
DANGER
injury, or death.
1
WARNING
of life.
the kit.
NOTICE
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in substantial
property damage, serious injury, or death.
NOTICE
Indicates
on
installation,
maintenance, which are important
to the equipment but not related to
personal injury hazards.
2019-18 Instinct Natural Gas (NG) to Propane Gas (LP) Conversion
special
instructions
operation
or

Advertisement

loading
Need help?

Need help?

Do you have a question about the Instinct Solo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TriangleTube Instinct Solo Series

  • Page 1 Instinct Solo/Combi Natural Gas (NG) to Propane Gas (LP) Conversion Instructions These instructions shall be kept with the appliance literature for future reference. WARNING Do not use the appliance with Propane Gas (LP) unless these Conversion Instructions have been fully implemented. This conversion kit shall be installed by a qualified installer, service agency, or the gas supplier in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 2 Instinct Natural Gas to Propane Conversion Instructions ATTENTION PROPANE GAS GAZ PROPANE Installer Conversion Label (A) This appliance was converted on (day/month/year) --------/------/--------- To be filled in by the installer with Cet appareil a été converti le (année/mois/jour) (gas type) relevant information and affixed ----------------------- (type de gaz)
  • Page 3 Instinct Natural Gas to Propane Conversion Instructions The Propane Rating Label (D) must be placed on top of the original rating label on the boiler case. Propane Rating Label (D) To be overlayed on top of the existing rating label.
  • Page 4 Instinct Natural Gas to Propane Conversion Instructions GENERAL • Follow instructions in proper order. • Make sure that the correct gas type is used. • Contact the local Propane Gas (LP) supplier for Scope: recommended sizing of piping, tanks and 100 % These instructions cover Natural Gas (NG) to Propane Gas lockup gas regulator.
  • Page 5 Instinct Natural Gas to Propane Conversion Instructions To Install the front panel - lower the front panel to engage the 4. Insert the new section of acoustic foam into the 7-inch keyhole slots and re-fit the panel. Rotate the pod downwards long section of pipe.
  • Page 6: Propane Gas

    --------- --------- ------- Valeurs de combustion Instinct Natural Gas to Propane Conversion Instructions DRG.No. FIRST THIS DRAWING REFERENCES A 3D FILE OF THE SAME THIS DOCUMENT IS COPYRIGHT PROTECTED BY IDEAL BOILERS. SB27638B ANGLE NAME AND UIN. ADDITIONAL DETAIL CAN BE GAINED IT MUST NOT BE COPIED, REPRODUCED OR COMMUNICATED PROJECTION FROM THIS 3D FILE...
  • Page 7 Instinct Natural Gas to Propane Conversion Instructions Changing the Appliance Code WARNING 1. Refer to Figure 7. Press, and hold, the UP and DOWN Failure to correctly install the air inlet elbow coupling buttons together. and attach the air reference hose can affect combustion of the boiler.
  • Page 8 Instinct Natural Gas to Propane Conversion Instructions WARNING WARNING Failure to comply with the requirements of this warning Do not adjust or attempt to measure gas valve outlet may cause injuries to personnel and substantial property pressure. The gas valve is factory-set for the correct damage.
  • Page 9 Instinct Natural Gas to Propane Conversion Instructions 8. If the combustion levels during high fire are outside the Table 2 - Combustion Settings recommended combustion settings (refer to Table 2), Propane 110, 155 Propane 199 use a flat-blade screwdriver to adjust the throttle screw (refer to Figure 9).
  • Page 10 Instinct Natural Gas to Propane Conversion Instructions 5. Calculate Propane Gas (LP) input usingthe following equation: 3600 x 2500 / number of seconds recorded for one cubic foot of gas = BTU/H. 6. The BTU/H calculated should approximate the input rating listed on the unit rating label and in the table below.
