10.1.2 Temperature sensor locations

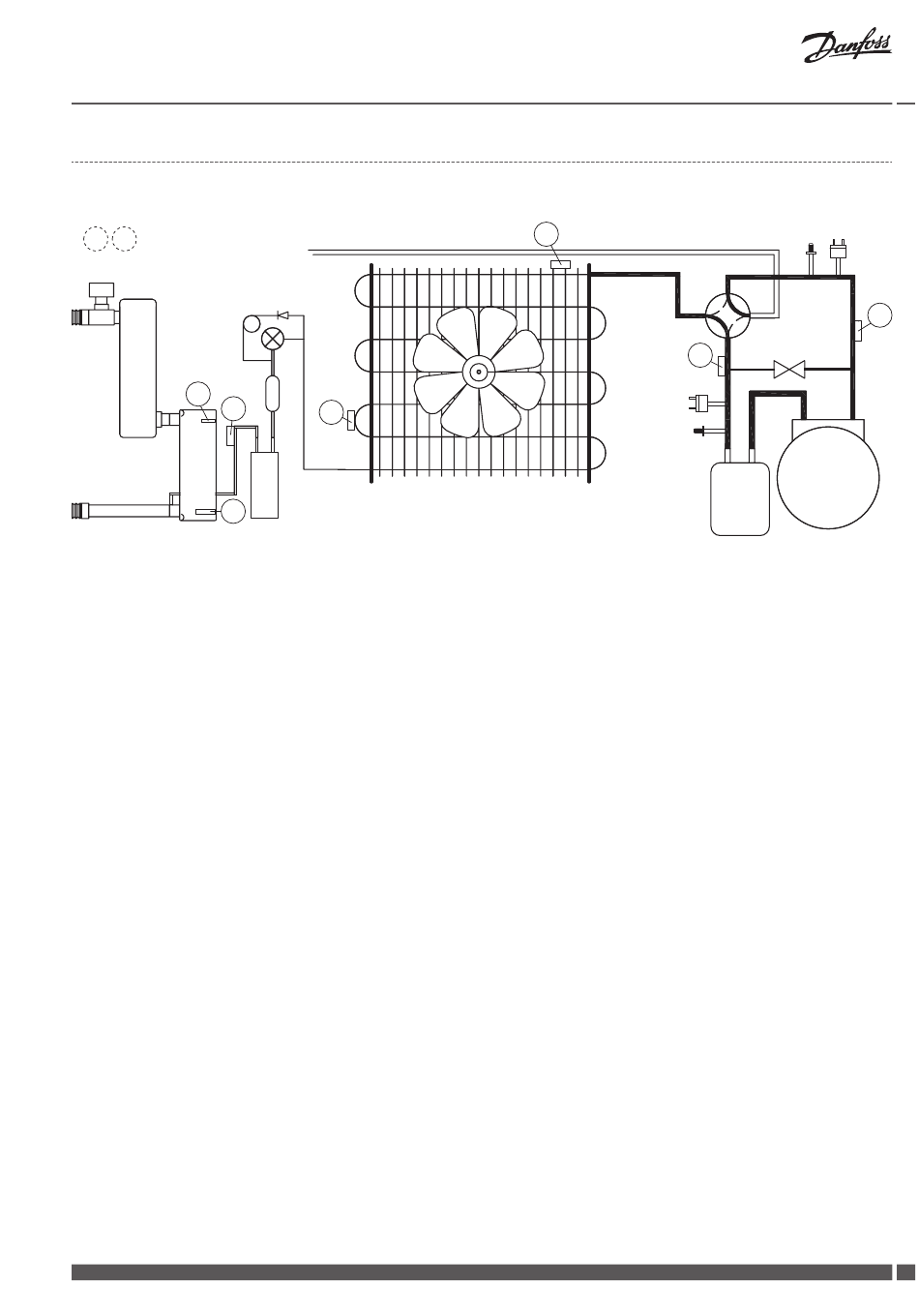

The location of the internal temperature sensors are shown in the principal diagram below:
T2 T3
T8
T6
T9
Fig. 12: Sensor locations
T1 Air temperature
T2 Buffer tank
T3 Hot water tank
T4 Exhaust gas temperature
T5 Return gas temperature
Danfoss Heating Solutions
DHP-AT
T7
T6
T7
T8
T9
T1
Cooling coil (external sensor)
Heating coil
Supply line
Return line
VMGFI302
T5
T4
