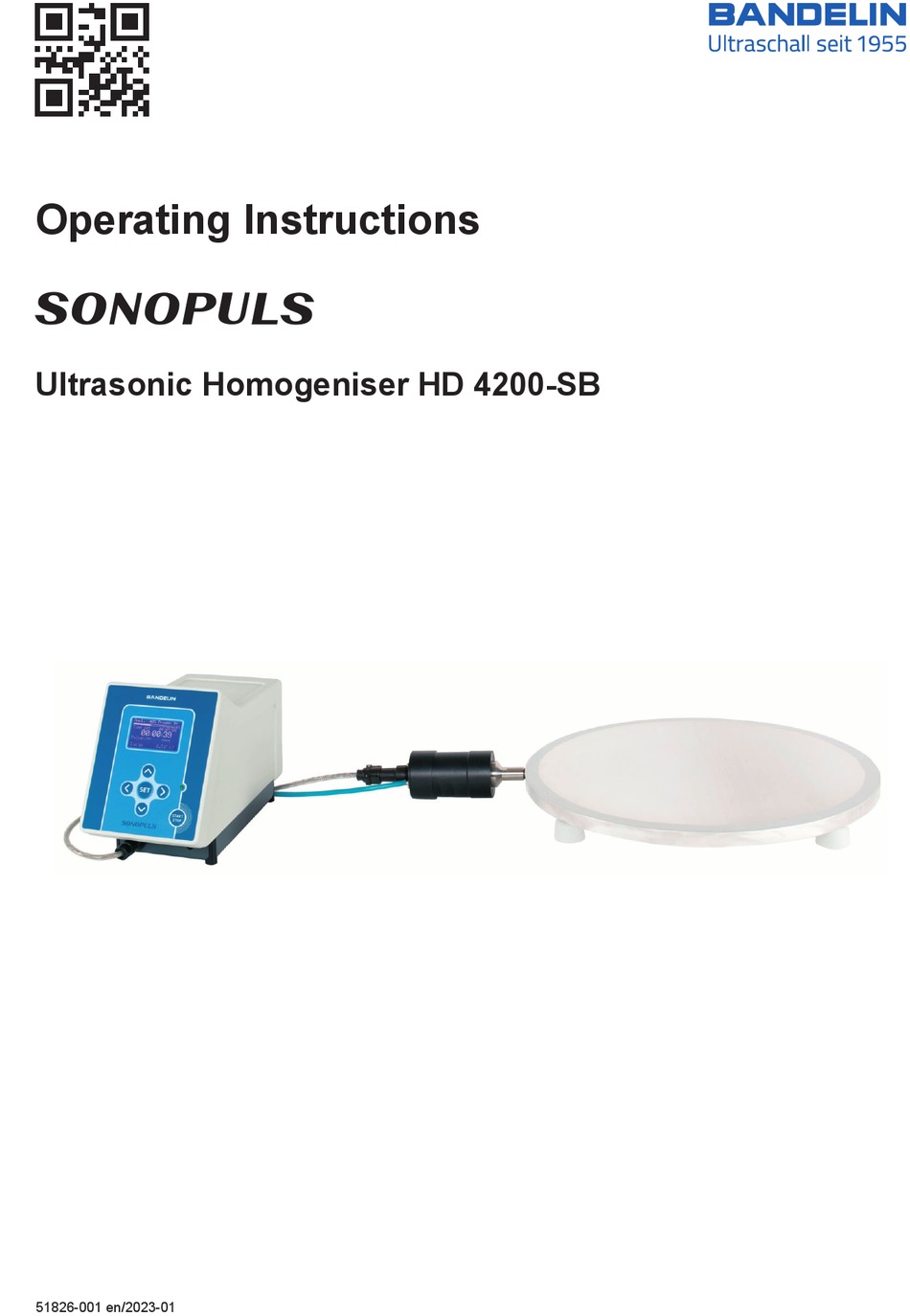

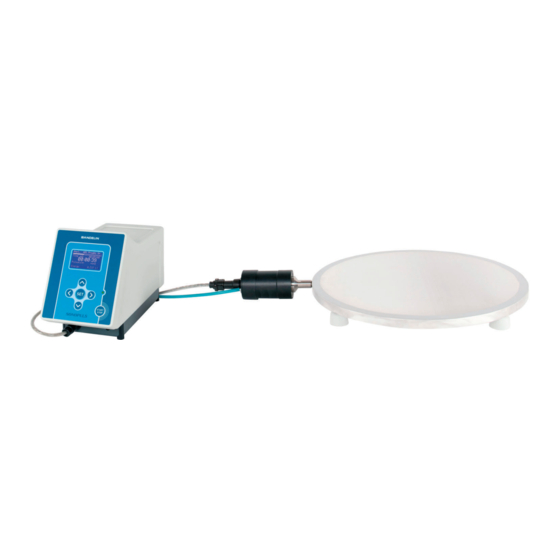

- Page 1 Operating Instructions Ultrasonic Homogeniser HD 4200-SB 51826-001 en/2023-01...
- Page 2 Copyright & limit of liability This document may not be reproduced, whether in full or in part, without the prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter “BANDELIN”. The German language original is the binding version of this document. Any diff erences in the translation are not binding and have no legal eff...
- Page 3 Identifi es instructions that must be carried out Instructions in the described sequence. 51826-001 en/2023-01 3 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Miscellaneous functions and settings ................20 Loading / saving sonication programmes ..............21 Activating / deactivating the ultrasound ................ 22 4 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 Consumable materials ....................32 Taking the unit out of service ..................32 Keyword index – not applicable – ................32 51826-001 en/2023-01 5 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Product Description
Rear side of the ultrasound generator: • Cold device socket (7) with fuse holder • Remote control connector (8) • RS 232 interface (9) 6 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Mode Of Operation
A declaration of conformity can be requested from the manufacturer by providing the serial number. 51826-001 en/2023-01 7 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Technical Data
In the case of highly-viscous media, this can also result in the desired amplitude not always being reached. The power depends on the ultrasonic converter connected. 8 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Ultrasonic Converter (Uw)
Suitable for use in institutions and other areas that are directly connected to a public low-voltage power supply, e.g., laboratory facilities. 51826-001 en/2023-01 9 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 10: Remote Operation
• When connecting a changeover contact (toggle function) to connector 1, the make time must be > 100 ms. 10 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 11 The inputs and outputs of the remote control connector and RS-232 interface may only be connected with devices of protection class I that are connected to the same mains supply circuit. 51826-001 en/2023-01 11 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 12: Warnings And Safety Precautions
• Liquids must not penetrate the inside of the ultrasonic converter or ultrasound generator. 12 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 13 • Repairs must only be conducted by authorised skilled personnel or by the manufacturer. • Defective parts must only be replaced with original parts or parts of the same quality! 51826-001 en/2023-01 13 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 14: Preparation
Putting into service Connect the ultrasound generator to the mains ( earthed socket) and switch on. Adjust the sieve. 14 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: Operation
Ultrasound emission Blinking green: Remote operation through the RS 232 interface Solid red: Error messages Blinking red: Warning messages 51826-001 en/2023-01 15 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: Switching The Ultrasonic Homogeniser On/Off
Energy 0.000 kJ Default value Pulsation time OFF Energy applied (specifi cation omitted with continuous operation) to the medium 16 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 17: Setting The Operating Parameters
• Default values for the pulsation of the ultrasound (turn-on and turn-off time) (Pulsation [s]) The operating parameters “Energy” and “Elapsed sonication time” cannot be edited. 51826-001 en/2023-01 17 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 18: Sonication Time [Time Set]
0.000 kJ Energy 0.000 kJ START STOP back to stand-by mode proceed to next set value or operating parameter 18 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 19: Pulsation
The pulse period duration is the sum of the turn-on and turn-off time t = t 51826-001 en/2023-01 19 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Miscellaneous Functions And Settings
The default value is 22. probe check scan frequency contrast operating mode Power display Energy batch mode 03.01 - 2016-08-085 20 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Loading / Saving Sonication Programmes
Pulsation Temp alarm at 0° Temp control load []* store []* load []* store []* quit [start] quit [start] 51826-001 en/2023-01 21 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 22: Activating / Deactivating The Ultrasound
fl uctuating display, may occur. 22 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 23: Use
All saved data and settings will be loaded. Check the settings and load a diff erent program if necessary, see chapter 3.3. 51826-001 en/2023-01 23 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 24: Mounting The Ultrasonic Converter On The Sieve
- Liquids must not penetrate the inside of the ultrasonic transducer. 4.2.2 Sieve groups Sieve ring Group Outer diameter (mm) GM 4200-SB (3718) 390, 490, 690, 590, 790 24 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 25: Special Notes
• Check the mains power consumption at regular intervals and after changing the sieve and/or ultrasonic converter. A commercially available wattmeter can be used to measure the mains power. 51826-001 en/2023-01 25 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 26: Cleaning And Maintenance Of The Ultrasonic Homogeniser
During extended periods without use, the ultrasonic homogeniser should be stored in a cool, dry place. The ultrasonic converter should be covered in order to protect the electronics from outside contamination. 26 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 27: Maintenance And Repair
After successful completion, the monitor display switches back to stand-by mode. Otherwise, an error message will appear again. 51826-001 en/2023-01 27 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 28: Conducting A Frequency Scan (Scan Frequency) - Error 002/011/012
The frequency scan is completed once fi ne-tuning has been successful, and the display switches back to stand-by mode. Otherwise, an error message such as Error 012 appears again. 28 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 29: Troubleshooting
Unknown type (e.g. probe) Check the sieve, UW, standard/booster horn, and probe for compatibility. 51826-001 en/2023-01 29 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 30 If it is not possible to rectify the error using these short instructions, please contact your local specialist dealer or write to us at the address below. 30 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 31: Repairs And Service
03.01 - 2016-08-085 The software version provided here is illustrative; the actual specifi cations may diff er. 51826-001 en/2023-01 31 / 33 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 32: Accessories
• Metal accessories such as probes or standard horns should be decontaminated and disposed of as metal waste. • The packaging is recyclable. Keyword index – not applicable – 32 / 33 51826-001 en/2023-01 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 33 BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com ISO 9001 12207 Berlin +49 30 768 80-0 ISO 13485 Deutschland +49 30 773 46 99...
