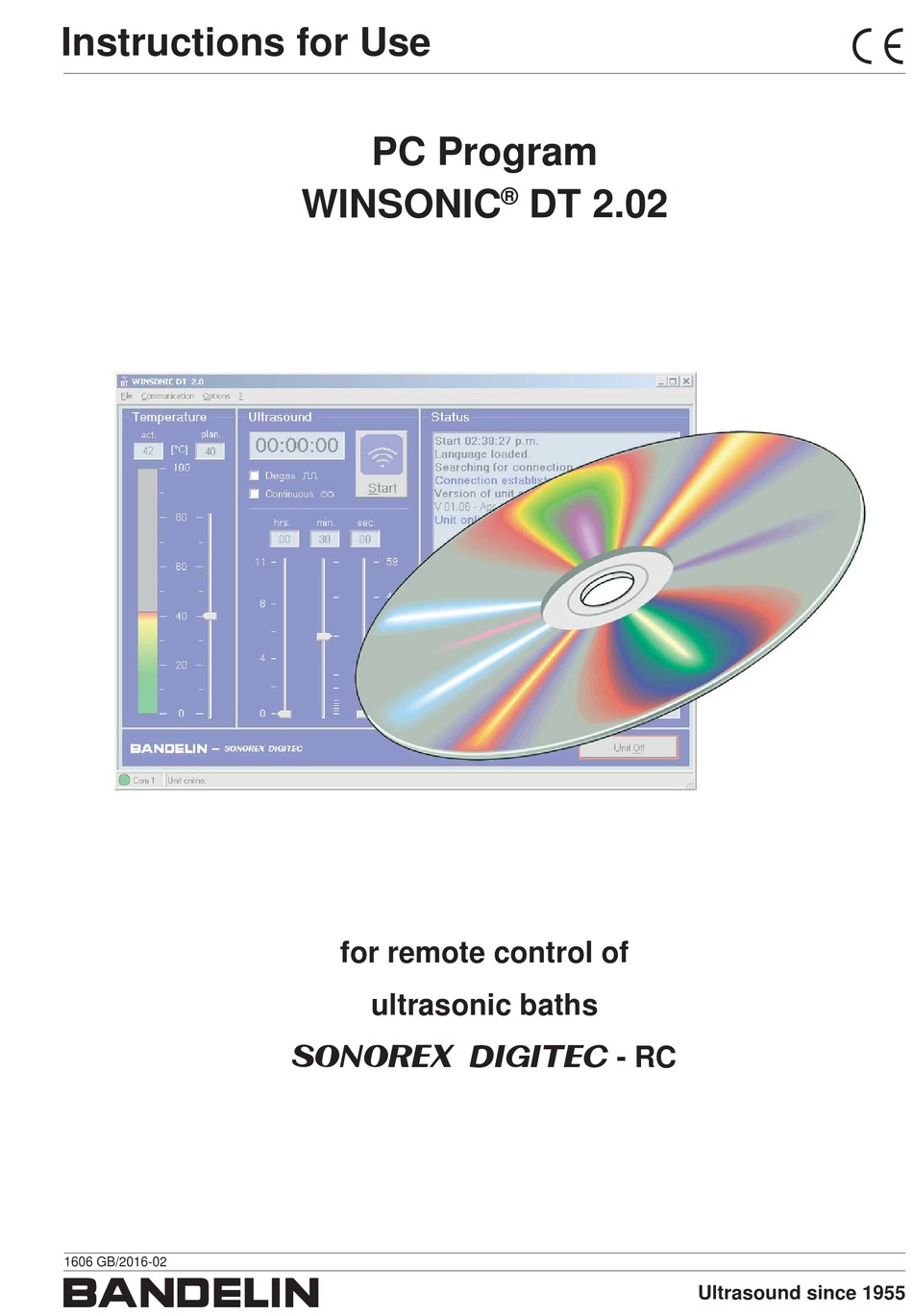

Instructions for Use
1606 GB/2016-02
1
PC Program
WINSONIC
for remote control of
ultrasonic baths
3 D - RC
®
DT 2.02
!
Ultrasound since 1955

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONOREX DIGITEC RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BANDELIN SONOREX DIGITEC RC

Summary of Contents for BANDELIN SONOREX DIGITEC RC

  • Page 1 Instructions for Use PC Program ® WINSONIC DT 2.02 for remote control of ultrasonic baths 3 D - RC 1606 GB/2016-02 Ultrasound since 1955...
  • Page 2 Copyright & limit of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German-language original is the binding version of this document. Any differences in the translation are not binding and have no legal effect.
  • Page 3 General The program and the accessories are to be used in accordance with the user instructions and/or the product information. Basic knowledge about personal computers (PCs) and the Windows operating system is required for the application and use of this program. Information on operation of the PC and the operating system should be found in the corresponding manuals.

  • Page 4: Table Of Contents

    Table of Contents Product description ....................6 Mode of operation ...................... 6 Purpose ........................7 CE conformity ......................7 System requirements ....................8 1.4.1 Required software components ................. 9 Warning and safety precautions ................. 9 Preparation ....................... 10 Scope of delivery ...................... 10 Installation of the program ..................
  • Page 5 4.3.3 Options ........................24 4.3.3.1 Logging the process sequence ................24 4.3.3.2 Status window functions ................... 26 4.3.3.3 Changing the program language (language setting) ....................27 4.3.4 Program information and contact ................27 Maintenance and cleaning - not applicable - ............27 Service and repair ....................

  • Page 6: Product Description

    • Status window (4) and status bar (5) to monitor the ultrasonic bath. Mode of operation The SONOREX DIGITEC RC bath and the program are connected via an infrared interface, through which a reliable potential separation is guaranteed. The program does not differentiate between remote control and remote monitoring modes, i.e.

  • Page 7: Purpose

    Purpose The WINSONIC DT remote control program is solely intended for the remote control of SONOREX DIGITEC RC ultrasonic baths. All operating sequences and settings for the following ultrasonic baths can be comfortably controlled and monitored through a graphic user interface: •...

  • Page 8: System Requirements

    The infrared adapter IR 1 is required for connection between the PC and the SONOREX DIGITEC RC ultrasonic bath. The IR 1 adapter does not require its own driver since one is already included in the WINSONIC DT program. Installation of the driver offered by the manufacturer of the IR 1 results in confl...

  • Page 9: Required Software Components

    1.4.1 Required software components The following software components should already be present or should be pre- installed, to be able to run the WINSONIC DT program: • Microsoft Framework 1.1 or higher • Microsoft Internet Explorer 5.01 or higher (approx. 40 MB); if needed, Internet Explorer 6.0 can be installed from the CD supplied.

  • Page 10: Preparation

    Preparation Carefully unpack the program CD and accessories and inspect them for completeness and/or possible transportation damages. If any damage or defects are found, these must be immediately notifi ed in writing to the transportation company and to the supplier. Scope of delivery 1 Program CD 1 Infrared adapter IR 1...

  • Page 11: Positioning Of The Infrared Adapter

     Connect the IR 1 infrared adapter to an RS 232 interface (COM 1 … COM 16) on the PC.  Next, place the adapter to the right of the SONOREX DIGITEC RC ultrasonic bath, at a distance of 1 – 10 cm.

  • Page 12: Operation

    Operation Operating elements All essential control functions are arranged on the user interface. Menu bar Call-up of additional functions, e.g. Selection of the COM port section 4.3.2 or Options e.g. logging (see also section 4.3.3). Ultrasound area Display of operating time (ultrasound emission) in hours : Minutes : Seconds (00:00:00).

  • Page 13: Signals

    Temperature area Setting the target temperature (heating control) Numerical display of the current temperature in °C Graphic display of the current temperature via a colour bar (0… 100° C, gradient: green-yellow-red). Numerical display and option to enter the target temperature in °C. Option to enter the target temperature through a slider control (0 …...

  • Page 14: Use

    Options to start the program: • Double-clicking on the symbol on the desktop. • Through the Windows start button:  Program  Bandelin electronic  WINSONIC DT • Through the program's installation directory: once there, click on "WINSONIC DT.exe" The interface (COM port) that was set the last time that the program was opened, will be tested.

  • Page 15: Program Functions

    60 °C, the ultrasound is automatically switched on for 3 seconds every minute to agitate the sonication liquid – prevention of retardation of boiling. (Please refer also to the SONOREX DIGITEC and SONOREX DIGITEC RC user instructions, under section 3.1.2.) Turning off the heating: When the target temperature is reached, the heating turns off automatically.

  • Page 16: Ultrasound Control

    If no button is pressed on the ultrasonic bath, the ultrasonic bath will run in continuous operation for a maximum of 11:59:59 hours. At the end, it will turn itself off automatically (please refer also to the SONOREX DIGITEC and SONOREX DIGITEC RC user instructions).

  • Page 17: Setting The Runtimes

    4.2.3 Setting the runtimes The duration of ultrasound emission is defi ned in the Input fi elds "Time setting" area. To do so, enter the desired runtime using the slider control or by entering it numerically in the input fi eld, and confi...
  • Page 18 By right-clicking inside the Status window, the additional functions "Delete contents" and "Undo" / "Repeat" are offered through a shortcut menu. Additional functions for the Status window are accessible through the "Options" menu (see section 4.3.3.2). Messages in the status display: Operating statuses (green): Message Explanation...

  • Page 19: Fast Shut-Down Of The Ultrasonic Bath

    Error messages (red): Message Explanation Error while loading the language e.g. language fi le not found Connection broken Connection to ultrasonic bath was broken. Ultrasonic bath not found! Connection to ultrasonic bath not found. Communication error! Disruption of serial communication between ultrasonic bath and PC.

  • Page 20: Saving, Renaming, Deleting User Settings

    4.3.1.1 Saving, renaming, deleting user settings Clicking on the menu option User settings  Save opens up the "Save user settings" window. "Save" button "New" button Selection fi eld for the saved data sets Current settings (from the main program) "Close"...
  • Page 21 "Save" button "New" button Input fi eld "Rename" button "Delete" button Saving a data set under a new name:  Select a data set.  Click the "New" button. The cursor jumps automatically to the "Name" input fi eld. The "OK" button becomes visible. ...

  • Page 22: Loading User Settings

    4.3.1.2 Loading user settings Clicking on the menu option User settings  Load opens up the "Load user settings" window. Data set Selection fi eld for the saved data sets Content of the data set selected "Import" button "Cancel" button Loading a data set: ...

  • Page 23: Communication Connection

    4.3.2 Communication connection Establishing (or restoring) the connection: The connection between the PC and ultrasonic bath can be manually established through the menu option Connection  Establish. In this process, the program attempts to establish a connection to the currently set COM port (12 attempts of 5 seconds each).

  • Page 24: Options

    4.3.3 Options 4.3.3.1 Logging the process sequence With the protocol function, the most important messages regarding the cleaning process can be saved in one fi le and can be used later on for documentation purposes. The data is stored in text format (*.txt fi les) and can be read by all current text processing programs.
  • Page 25 In order to open the protocol window, select the menu option "Protocol" from the "Options" menu. Creating a new protocol:  In the "File" input fi eld, enter or overwrite the name of the protocol.  Click the button "Save" or "Save as". A dialogue window will open. ...

  • Page 26: Status Window Functions

    4.3.3.2 Status window functions Multiple options for the status window are available through the menu Options  Status window. Hiding and showing the status window: To arrange the programs in a space-saving manner on the desktop, e.g. in cases of multiple use, the "Status"...

  • Page 27: Changing The Program Language (Language Setting)

    "?" The manufacturer's contact address can also be found here. By clicking on www.bandelin.com you will arrive at the BANDELIN website through Internet Explorer. Clicking on info@bandelin.com will open up the E-mail program.

  • Page 28: Service And Repair

    Position correctly (see chapter 2.3) or heavily soiled. or clean adapter. IR adapter not compatible. Connect compatible IR adapter, e.g. BANDELIN IR 1. IR adapter defective. Contact the manufacturer's Service department. COM port not available. Ensure that ports are not already being used by other programs.

  • Page 29: Repairs And Service

    Phone: +49-(0)-30 – 768 80 – 13 info@bandelin.com Fax: +49-(0)-30 – 76 88 0 - 2 00 13 In the case of returns, the general terms and conditions for delivery and payment of BANDELIN electronic GmbH & Co. KG shall apply.

  • Page 30: Accessories - Not Applicable

    - not applicable - If service is required, please contact your specialist dealer or write to us at the address provided. Ultrasound since 1955 BANDELIN electronic GmbH & Co. KG Heinrichstrasse 3 – 4 • 12207 Berlin www.bandelin.com Certifi cation GERMANY info@bandelin.com...
  • Page 31 Note: The user instructions in this and other languages, as well as further information, can be found on the enclosed CD.
