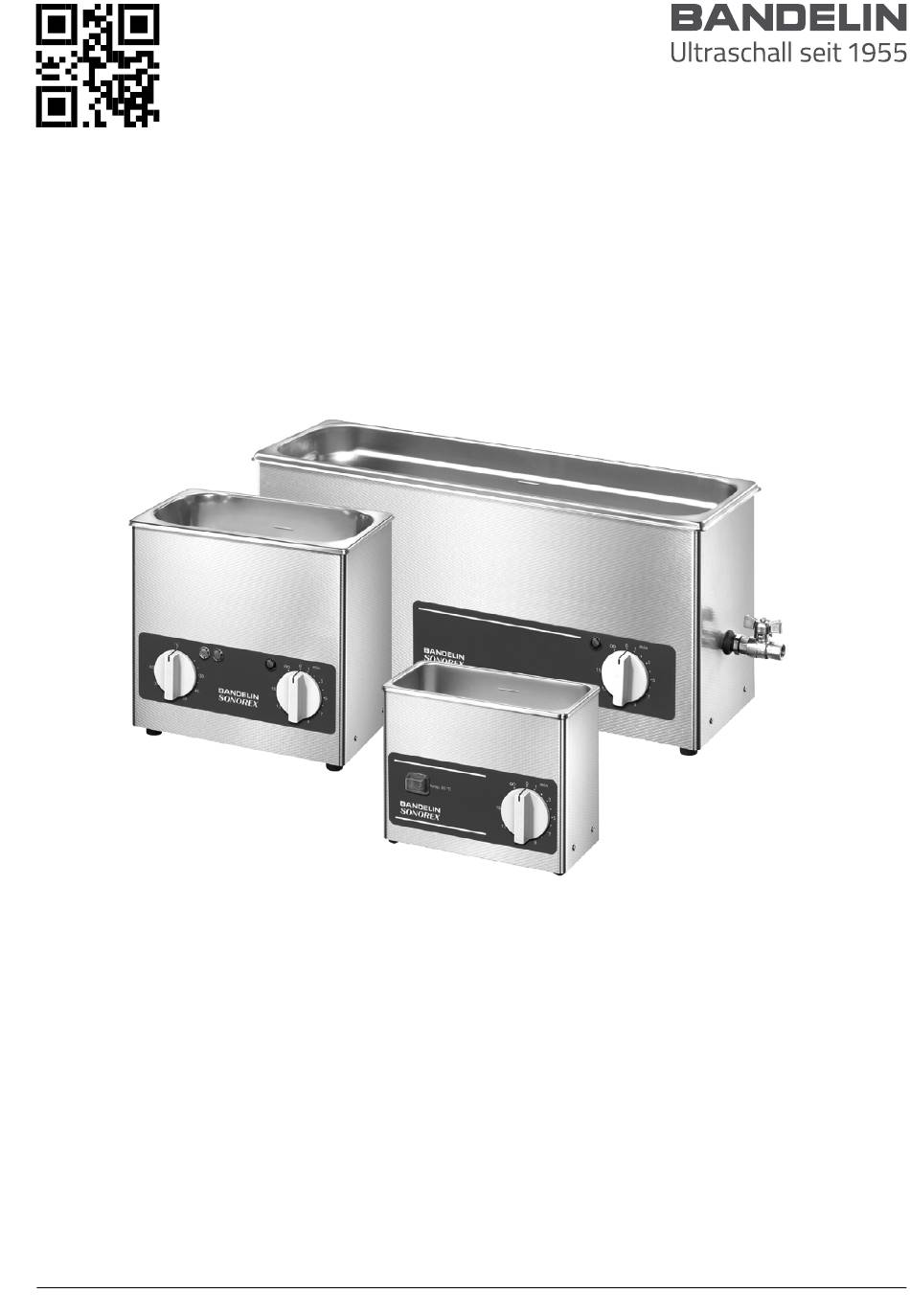

Operating Instructions
SONOREX SUPER
High-performance ultrasonic baths
Valid for:
RK 31, RK 31 H, RK 52, RK 52 H
RK 100, RK 100 H, RK 102 H, RK 103 H, RK 106
RK 156, RK 156 BH
RK 170 H
RK 255, RK 255 H
RK 510, RK 510 H, RK 512 H
RK 514, RK 514 H, RK 514 BH
RK 1028, RK 1028 H, RK 1028 C, RK 1028 CH
RK 1040, RK 1050, RK 1050 CH
1676-003 en/2024-09
Advertisement
Table of Contents
Related Manuals for BANDELIN SONOREX SUPER Series
Summary of Contents for BANDELIN SONOREX SUPER Series
- Page 1 Operating Instructions SONOREX SUPER High-performance ultrasonic baths Valid for: RK 31, RK 31 H, RK 52, RK 52 H RK 100, RK 100 H, RK 102 H, RK 103 H, RK 106 RK 156, RK 156 BH RK 170 H RK 255, RK 255 H RK 510, RK 510 H, RK 512 H RK 514, RK 514 H, RK 514 BH...
- Page 2 © 2024 1 2 GmbH & Co. KG, Heinrichstr. 3 – 4, 12207 Berlin, Germany Phone: +49-30-768 80 - 0, Fax: +49-30-773 46 99, info@bandelin.com Certified to ISO 9001 and ISO 13485 2 / 50 1676-003 en/2024-09...
-
Page 3: Table Of Contents
Table of contents About these operating instructions ................. 5 Safety ..........................6 Using the device ......................6 Use in the medical field ...................6 Avoidance of cross-contamination and infections ..........8 Keep away from children ..................8 Risk of electric shock ....................8 Damage to health due to ultrasonic noise ............9 Danger due to high temperatures ................9 Danger due to ultrasound ...................10 Danger due to the agents used .................10... - Page 4 Sonication time .......................20 Filling with sonication fluid .................21 Switching sonication on and off .................23 Switching the heating on and off ..............24 Degassing the sonication liquid – DEGAS ............26 Introducing objects to be sonicated ..............26 Removing objects to be sonicated ..............27 5.10 Emptying the oscillating tank ................28 5.11...
-
Page 5: About These Operating Instructions
• Should these operating instructions leave any questions unanswered, please contact your specialist dealer or BANDELIN. Notes on service can be found in Chapter 6.5 Repairs. In the event that the translation cannot be understood, the German original version of BANDELIN must be followed. -
Page 6: Safety
Safety Safety 2.1 Using the device You can use the device for the following applications: • Ultrasonic cleaning of objects of various shapes, types and sizes • Homogenisation, emulsification • Rapidly degassing liquids • Sonochemical applications, e.g., for generating radicals or for improved substance transport •... -
Page 7: Intended Users
The device may be used by persons who are qualified for their work, e.g., in reprocessing instruments, and have received instruction in it. Being pregnant is not a contraindication to controlling the device. Serious incidents must be reported to BANDELIN electronic GmbH & Co. KG and the competent authority. 7 / 50... -
Page 8: Avoidance Of Cross-Contamination And Infections
Safety 2.3 Avoidance of cross-contamination and infections If you use the device in the medical field, clean and disinfect the device's surfaces on a regular basis with a surface disinfectant which is at least bactericidal, levurocidal and, to a limited extent, virucidal disinfection agent to avoid cross- contamination. -
Page 9: Damage To Health Due To Ultrasonic Noise
Safety • If you discover a defect in the device, unplug it immediately. Do not connect any defective device to the mains. • Only have repairs carried out by qualified personnel or by the manufacturer. See Chapter 6.5 Repairs. • Position the device in such a way that it is possible to disconnect the mains connection at any time without difficulty. -
Page 10: Danger Due To Ultrasound
Safety 120 °C due to the energy supplied by the ultrasound. This can lead to fires and severe burns. • Do not use combustible, explosive or non-aqueous fluids (e.g., petrol, solvent) or mixtures with combustible liquids (e.g., alcoholic solutions) directly in the stainless-steel oscillating tank. -
Page 11: Disposing Of Sonication Fluid
Safety 2.10 Disposing of sonication fluid Dispose of the sonication fluid according to the instructions of the manufacturers of the ultrasonic agents used. The recommended ultrasonic agents belonging to the TICKOPUR, TICKOMED and STAMMOPUR product series from DR. H. STAMM GmbH are biodegradable in accordance with the provisions of Regulation (EC) No. -
Page 12: Preventing Damage To The Device
Safety 2.12 Preventing damage to the device • Only use aggressive agents in inset beakers or insert tubs. When working with aggressive agents, avoid splashes that get into the contact liquid or onto the stainless steel surface. Replace contaminated sonication fluid immediately. Clean surfaces and wipe them dry. -
Page 13: Safety Stickers On The Device
Safety 2.14 Safety stickers on the device • Observe all safety stickers on the device. • Keep the safety stickers in a readable state. Do not remove them. Replace them when they are no longer legible. Please contact our customer service for this. See Chapter 6.5 Repairs. -
Page 14: Construction And Function
Construction and function Construction and function 3.1 Structure ° C 1 m in Device overview 1 Handles (depending on the model) 2 Oscillating tank 3 Control panel 4 Filling level mark 5 Outlet with ball valve (depending on the model) 6 Housing 7 Device feet 14 / 50... -
Page 15: Control Panel
Construction and function 3.2 Control panel °C Operating elements for all devices with heating except RK 31 H Operating elements for all devices without heating: RK 31, RK 52, RK 100, RK 106, RK 156, RK 255, RK 510, RK 514, RK 1028, RK 1028 C, RK 1040, RK 1050 Temp. -
Page 16: Function
Construction and function 3.3 Function The device uses cavitation triggered by low-frequency ultrasound. Piezoelectric transducers are located on the underside of the oscillating tank. The ultrasound generates strong pressure fluctuations in the sonication fluid. Cavitation bubbles are formed at the pressure minima. At higher ambient pressure around the bubbles, they collapse very quickly. -
Page 17: Preparation For Operation
Preparation for operation Preparation for operation 4.1 Installation site requirements The installation site of the device must meet the following conditions: • The installation surface must be horizontal, firm and dry. • The load-bearing capacity must be sufficient for the device together with the sonication liquid. -
Page 18: Rinsing The Oscillating Tank
Preparation for operation Result " When the ultrasound is switched on, you will clearly hear a noise. If you do not hear a noise, contact servicing. A foil test should be performed before the first application. This serves to document the effect of the ultrasound. See chapter 6.4 Performing a foil test. -
Page 19: Operation
The ultrasonic agent used must be cavitation conducive, biodegradable, easy to dispose of, gentle on materials and long-lasting. BANDELIN recommends ultrasonic agents from the TICKOPUR, TICKOMED and STAMMOPUR product series from DR. H. STAMM GmbH. -
Page 20: Sonication Time
Operation Observe the instructions from the manufacturer of the ultrasonic agent regarding dosing. The necessary amount of ultrasonic agent and water can be found in the dosing table. See chapter 9 Dosing table. You can calculate the quantities yourself analogously to the following example: 10 l ready-to-use solution, 2.5%: Agent: 10 l ×... -
Page 21: Filling With Sonication Fluid
Operation 5.4 Filling with sonication fluid NOTICE Risk of damage – Do not fill the oscillating tank with hot water. – Maximum filling temperature: 50 °C. NOTICE Damage due to condensate in the device At high humidity, condensation forms inside the device when cold water is poured in. - Page 22 Operation °C 1 m in Filling the oscillating tank 1 Turning knob for adjusting the heating temperature 2 Filling level mark 3 Outlet with ball valve (depending on the model) 4 Turning knob for adjusting the ultrasound duration Requirements • In the case of devices with an outlet, the ball valve must be closed. •...
-
Page 23: Switching Sonication On And Off
Operation 5.5 Switching sonication on and off Requirements • The oscillating tank is filled. • The mains plug is plugged into an earthed wall socket. Procedure 1. If there is a lid, place it on the device. 2. Rotate the turning knob for the ultrasound duration to the desired duration or to the ∞... -
Page 24: Switching The Heating On And Off
Operation 5.6 Switching the heating on and off Relevant for the following devices: • RK 31 H • RK 52 H • RK 100 H, RK 102 H, RK 103 H, RK 156 BH, RK 170 H, RK 255 H, RK 510 H, RK 512 H, RK 514 H, RK 514 BH, RK 1028 H, RK 1028 CH, RK 1050 CH WARNING Risk of scalding... - Page 25 Operation Information - The heater is equipped with overtemperature protection. If the heating function is not working, disconnect the device from the mains and allow it to cool down to below 50 °C. Only then can the device be put back into operation. - The heating operates independently of the ultrasound.
-
Page 26: Degassing The Sonication Liquid - Degas
Operation 5.7 Degassing the sonication liquid – DEGAS Sonication liquid that has been freshly poured in or that has remained in the oscillating tank for a long time must be degassed before use. Degassing the sonication liquid increases the effect of the ultrasound. The DEGAS function allows rapid degassing of the sonication liquid. -
Page 27: Removing Objects To Be Sonicated
Operation • Remove air bubbles from cavities. Rotate the objects accordingly. Remove air bubbles under inset beakers. The ultrasound is only effective where liquid is in contact with the objects to be sonicated or the inset beaker. • Place the more contaminated side downwards. Place items with joints (e.g., scissors, tongs) in an open state so that the sonication fluid is able to optimally cover the entire surface. -
Page 28: Emptying The Oscillating Tank
Operation 5.10 Emptying the oscillating tank WARNING Danger of electric shock - Disconnect the mains plug before lifting the device. - Do not place the device in a sink to empty it. - Make sure that no liquid can enter the housing. CAUTION Hot sonication liquid and oscillating tank There is a risk of scalding when lifting the device to empty it. -
Page 29: Troubleshooting
Operation 5.11 Troubleshooting Error Possible causes Troubleshooting Too little • Sonication liquid • Degas the sonication fluid. See Chapter ultrasound contains gases. 5.7 Degassing the sonication liquid – effect, loud • There are too many DEGAS. noises objects to be sonicated •... -
Page 30: Maintenance
Maintenance Maintenance 6.1 Servicing The device is maintenance-free. Function tests can be performed for regular checks (see section 6.3 Tests.) 6.2 Cleaning and care of the device Cleaning the housing • Wipe the housing with a damp cloth. Wipe it dry with a soft cloth. •... -
Page 31: Tests
Maintenance 6.3 Tests NOTICE Damage to the device – Only carry out checks on the device when it is filled. If one of the tests does not lead to the desired result, contact the servicing team. See section 6.5 Repairs. Check the control lamps Check the function of the pilot lamps. -
Page 32: Performing A Foil Test
Maintenance Procedure 1. Fill the oscillating tank with water. 2. Switch on the ultrasound and, if present, the heating, one after the other. Take the power reading. Switch the heating and ultrasound off again. 3. Compare the readings for the nominal power with the technical specifications. See chapter 8.1 Technical specifications. - Page 33 IEC TS 63001:2019. You can download a documentation template here for documenting the test results: https:/ /bandelin.com/folientest/ You will also find an application video there. The foils can also be archived in a suitable manner (as scans, photos, etc.). This makes it possible to compare the foils at any time.
- Page 34 9. Rinse the oscillating tank thoroughly to remove loose foil particles. Suitable foil test frames can be ordered from BANDELIN electronic GmbH & Co. KG. The foil test frames are designed for a wide range of tank dimensions. Aluminium foil is also required for the test procedure;...
-
Page 35: Repairs
Maintenance 6.5 Repairs During the warranty period, contact your specialist dealer or the manufacturer. Only have repairs carried out by qualified personnel or by the manufacturer. The manufacturer assumes no liability for unauthorised interventions on the device. WARNING Health hazard due to contaminated device - Decontaminate the device before shipping if it has come into contact with hazardous substances. - Page 36 Fill out the form and attach it so it is clearly visible on the outside of the packing. Acceptance will be refused without a completed form. Send the unit to the following address: BANDELIN electronic GmbH & Co. KG Heinrichstr. 3–4 12207 Berlin...
-
Page 37: Disposal
Disposal Disposal WARNING Health hazard due to contaminated device - Decontaminate the device before disposal if it has come into contact with hazardous substances. - Also decontaminate accessories before disposal. Dispose of the device properly as electrical waste if it can no longer be used. -
Page 38: Information About The Device
Information about the device Information about the device 8.1 Technical specifications Electrical data Mains supply 230 V~ (± 10 %) 50/60 Hz Mains supply (optional) 115 V~ (± 10%) 50/60 Hz Protection class Degree of protection IP 32 Ultrasonic frequency 35 kHz Ultrasonic peak Current con-... - Page 39 Information about the device Ultrasonic peak Current con- Current con- Heating Type power/ultrasonic sumption sumption power nominal power (230 V) (115 V) RK 170 H 1520/380 1600 17.3 RK 255 640/160 – RK 255 H 640/160 RK 510 640/160 – RK 510 H 640/160 RK 512 H...
-
Page 40: Dimensions And Weight
Information about the device Dimensions and weight Internal dimensions of Connection for Operating Type the oscillating tank ball valve Weight volume (L × W × H) (outlet) [mm] [kg] RK 31 190 × 85 × 60 – RK 31 H 190 ×... -
Page 41: Ambient Conditions
Information about the device Internal dimensions of Connection for Operating Type the oscillating tank ball valve Weight volume (L × W × H) (outlet) [mm] [kg] RK 1028 500 × 300 × 200 19.0 G ½ 14.0 RK 1028 C 500 ×... -
Page 42: Dosing Table
Dosing table Dosing table Oper- Dosage Type ating Water + agent volume RK 31, 590 ml 585 ml 580 ml 570 ml 540 ml RK 31 H + 10 ml + 15 ml + 20 ml + 30 ml + 60 ml RK 52, 1.1 l 1.1 l... - Page 43 Dosing table Oper- Dosage Type ating Water + agent volume 8.6 l 8.5 l 8.4 l 8.2 l 7.8 l RK 512 H + 90 ml + 180 ml + 270 ml + 440 ml + 870 ml RK 514, 8.9 l 8.8 l 8.7 l...
-
Page 44: Approved Accessories
Approved accessories Approved accessories Insert basket K..., made from stainless steel, sieve cloth. Gentle on objects to be sonicated and avoids damage to the tank bottom. Optimal ultrasound transmission. Utensil holder GH..., made from stainless steel, mesh size 12 x 12 mm. For larger individual parts. - Page 45 Approved accessories Type Insert- Utensil Insert Basket Insert tub basket holder basket holder RK 31 /H K 08 – D 08 – – – RK 52 /H K 1 C GH 1 D 52 – – – RK 100 /H, K 3 C GH 1 D 100...
- Page 46 Approved accessories Insert baskets KD…, PD…, Sieve cloth. Suitable for inset beakers, for cleaning small parts. KD 0: stainless steel, Ø inside 75 mm; PD 04: plastic, Ø inside 60 mm. Inset beakers SD ... (glass), EB... (stainless steel), KB…, PD… (plastic). For indirect cleaning of small parts, suitable for positioning lids and beaker holders Ø...
- Page 47 Approved accessories Type Inset basket Inset beaker Position- Impres- Inset Injection Cassette ing lid/ sion basket nozzle holder beaker tray holder holder holder RK 31 /H PD 04 KB 04, SD 05 DE 08 – – – – RK 52 /H KD 0, PD 04 SD 06, SD 09, DE 52 –...
- Page 48 Approved accessories Spring clamps EK..., made of stainless steel, for laboratory flasks. Prevents floating. For screwing into hanging baskets and utensil holders. EK 10 – 10 ml, max. Ø 31 mm EK 25 – 25 ml, max. Ø 42 mm EK 50 –...
- Page 49 Approved accessories Type Spring clamps for Handle Test tube Sieve Silicone Fixing laboratory flasks adjuster holder holder base mat clamps RK 31 /H – – – – – – RK 52 /H EK 10, EK 25, EK 50, GV 3 RG 2 –...
- Page 50 1 2 GmbH & Co. KG Heinrichstrasse 3 – 4 12207 Berlin Germany Phone: +49-30-768 80 - 0 Fax: +49-30-773 46 99 info@bandelin.com www.bandelin.com...
