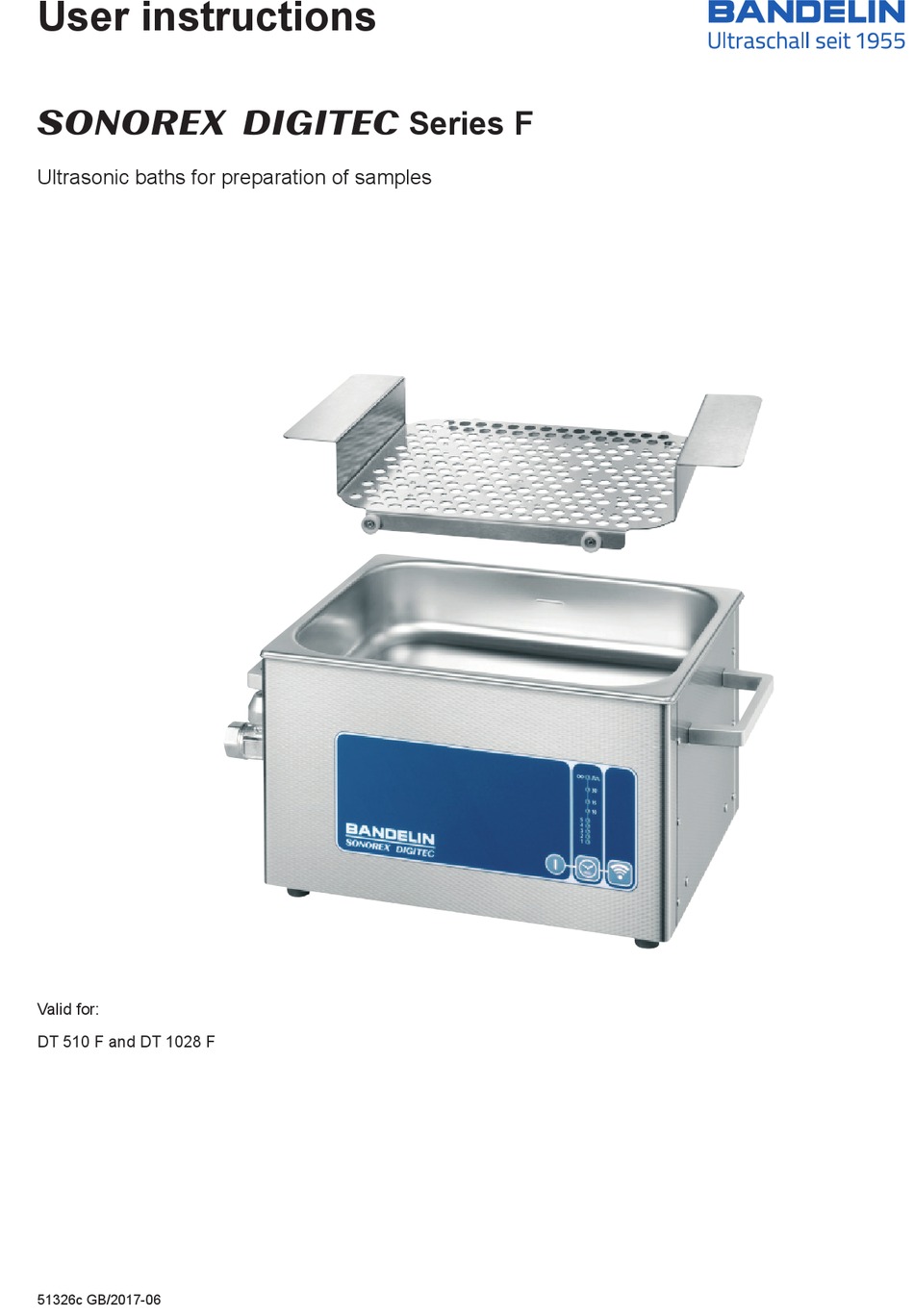

- Page 1 User instructions 3 D Series F Ultrasonic baths for preparation of samples Valid for: DT 510 F and DT 1028 F 51326c GB/2017-06...
- Page 2 Copyright & limitation of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German original is the binding version of this document. Any difference in the translation is not binding and has no legal effect.
- Page 3 Operating sequence Identifi es instructions that are to be followed in the described instructions sequence. 51326c GB/2017-06 3 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 4 Cleaning and maintenance of the ultrasonic bath ............18 Cleaning and care ......................18 Disinfection for medical applications ................18 4 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 5 Taking the unit out of service ..................22 Key words ........................22 Informative appendices Accessories Foil test Decontamination - sample copy 51326c GB/2017-06 5 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-

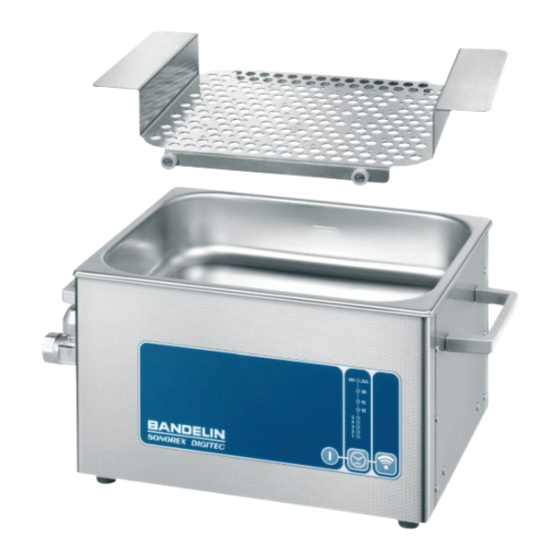

Page 6: Product Description
This produces an especially homogeneous and uniform ultrasound fi eld in the bath volume for constantly reproducible results. 6 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Purpose
A declaration of conformity can be requested from the manufacturer by providing the serial number. 51326c GB/2017-06 7 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Technical Data
Not required Technical safety controls, (STK, § 6): No specifi cations Technical measurement controls, (MTK, § 11): Not applicable 8 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Electromagnetic Ambient Conditions (Emc)
It is suitable for use in facilities and areas which are directly connected to a public low-voltage supply network, e.g. medical laboratory facilities. 51326c GB/2017-06 9 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 10: Warnings And Safety Precautions
• Repairs are only to be conducted by authorised skilled personnel or by the manufacturer. • Defective parts may only be replaced with original parts. 10 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 11: Preparation
It is recommended that a foil test be conducted as part of quality assurance prior to the fi rst use, see appendix for information. Place accessories in the ultrasonic bath as necessary. 51326c GB/2017-06 11 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 12: Operation
• While turned off, the ultrasonic bath may remain connected to the mains. It can be disconnected from the mains by pulling out the mains plug. 12 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Special Functions
The intended course is described step by step in the following sections. Contact fl uid Inset beaker Sonication fl uid Contact fl uid 51326c GB/2017-06 13 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 14: Fill Oscillating Tank
fl uid or stainless steel surfaces from being sprayed. If necessary, replace the contact fl uid, clean the surfaces and wipe dry. 14 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: Degassing The Fl Uid
Turn on the ultrasonic bath. For setting the degassing time (10 min) and starting the DEGAS function, see Section 3.3. 51326c GB/2017-06 15 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: Ultrasound Operation
• The fl uid in the oscillating tank must not exceed a maximum operating temperature of 100°C. 16 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 17: Empty The Oscillating Tank
In every case, the statutory provisions and regulations of municipal wastewater plants are to be adhered to. Information is provided by municipal wastewater plants as well as by environmental agencies. 51326c GB/2017-06 17 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 18: Cleaning And Maintenance Of The Ultrasonic Bath
During long periods of non-use, the ultrasonic bath is to be stored in a cool, dry location. VAH: Verbund für angewandte Hygiene (Alliance for Applied Hygiene)/Germany 18 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 19: Maintenance And Repair
Slight erosion visible on the bottom of the bath? Natural wear. Ultrasonic bath OK. Any malfunctions are to be communicated in writing to the manufacturer. 51326c GB/2017-06 19 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Repairs And Service
- The fuses are located on the generator circuit board. - After inspection, exchange only the defective fuses. Assembly in reverse order. 20 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Accessories
Exceptions to this rule are special baskets and basket holders (e.g., K 6 and SH 7) that have been designed by BANDELIN in such a manner that they are not located in the cavitation fi eld and do not damage the tank bottom. -
Page 22: Taking The Unit Out Of Service
Continuous operation 6, 7, 12, 13 Fluid 3, 6, 10, 11, 14, 15, 16, 17, 19 Function test 11, 19 22 / 32 51326c GB/2017-06 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 23 Operating temperature TICKOPUR 11, 14, 21 Outlet 6, 9 Timed operation Time expires Time scale 12, 13 Transport damage 51326c GB/2017-06 23 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 24 17, 19 Ultrasound frequency Ultrasound - Operation 10, 16, 18 Ultrasound output VAH-certifi ed Warning instructions BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com EN ISO 9001:2008 12207 Berlin +49 30 768 80-0...
- Page 26 Accessories Holding clamps EK ..., made of stainless steel, for laboratory fl asks. Prevent them from buoying upwards. To be screwed into insert baskets and utensil holders. EK 10 – 10 ml – max. Ø 31 mm EK 25 – 25 ml – max. Ø 42 mm EK 50 –...
- Page 27 Accessories Holding clamps for Beaker holder Shaking device laboratory fl asks Devices EK 10, EK 25, EK 50, DT 510 F GL 510 F EK 100, EK 250 EK 10, EK 25, EK 50, 2 × DT 1028 F SA 1028 EK 100, EK 250 GL 510 F...
- Page 28 Aluminium household foil is also required to conduct the test and is not included in the delivery. Film: http:/ /bandelin.com/folientest/. Investigations on test procedures for ultrasonic cleaners. IEC/TR 60886 (1987-03) 939w GB/2017-04...
- Page 29 FT 45 600 × 400 × 200 600 × 400 × 200 3204 RK 1050/CH 939w GB/2017-04 2 / 2 BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifiziert nach Heinrichstraße 3–4 info@bandelin.com EN ISO 9001 12207 Berlin + 49 30 768 80 - 0...
- Page 30 Decontamination - sample copy Certifi cate of decontamination ! ! ! CAUTION! ! ! This form must be visibly affi xed to the outside of the package! This "Certifi cate of Decontamination" is meant to provide occupational safety and health maintenance for our employees pursuant to the "Infection Protection Act" and trade association accident prevention regulations.
- Page 31 Certifi cate of decontamination ! ! ! CAUTION! ! ! This form must be visibly affi xed to the outside of the package! Legally binding statement I/we hereby assert that the device and accessories found in this package have been cleaned and/or disinfected pursuant to current laws and regulations and that the information provided in this declaration are correct and complete: Company /...
- Page 32 Note: The user instructions in this and other languages as well as further information are available on the supplied CD.
