Summary of Contents for Vivo STAND-V003M

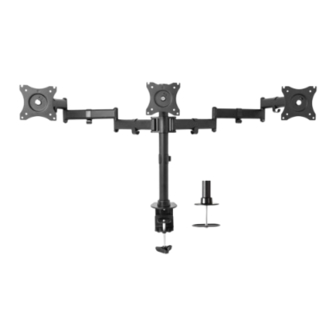

- Page 1 Triple Monitor Mount Instruction Manual SKU: STAND-V003M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v003m help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 TOOLS NEEDED WARNING! 17.6 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (7.98 kg) If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician.
- Page 3 STEP 2 STEP 3 Slide arm (A) and bracket (C) over top of pole and tighten using 5mm allen wrench (L). Attach cable management clips (F) as shown in diagram. STEP 4 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitor, making sure to leave 3mm of threads exposed.
- Page 4 STEP 5 STEP 7 Adjust tension in monitor bracket with 6mm allen wrench (M) as shown in diagram. Adjust height of monitors using 5mm allen wrench (L) as shown in diagram. +45° -45° STEP 6 Store allen wrenches (M, L) in cable management clip (G) for future adjustment.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
