General Information

ADIC FastStor 1 is a compact tape cartridge loader designed for secure, reliable,
unattended system backup. The loader can be mounted in a 19" rack. Its height is
1U.
The loader is equipped with oneLTO tape drive and has room for 8 cartridges in
two 4-cartridge magazines.
The entire system is under host control via an industry-standard SCSI interface. Its
robotic tape handling is both rugged and simple for utmost reliability.
The key features of the FastStor 1 include:
• Two removable cartridge magazines, each with space for four cartridges
• Integrated Barcode Reader
• Magazine release under system control
• Low Voltage Differential (LVD) / Single-Ended (SE) SCSI Interface
• On-board Diagnostics
• Remote management
• Operator interface with front panel display and four control buttons
• Standby functionality
FastStor 1 Installation and User Guide

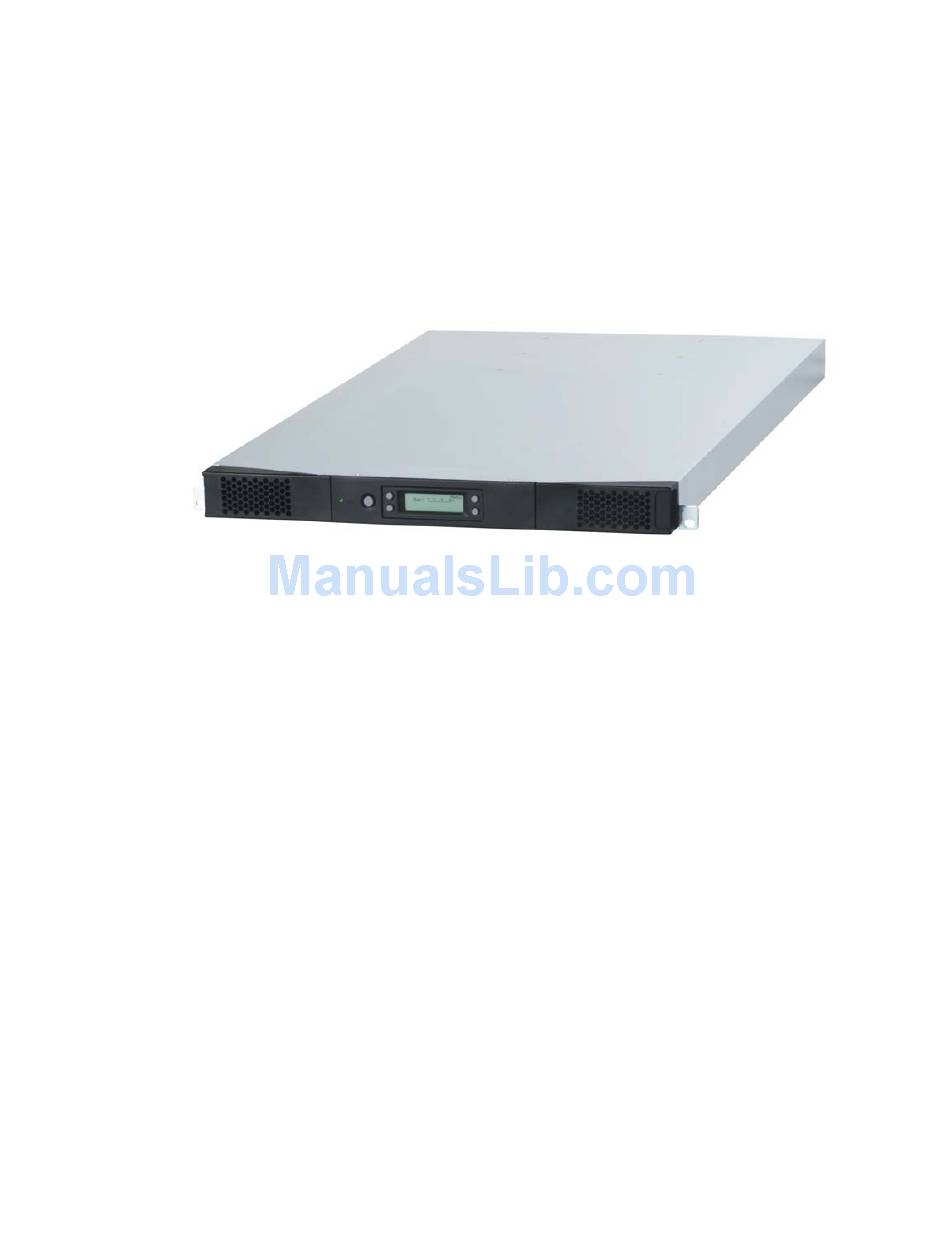

Figure 2.1 Overview of ADIC FastStor 1
