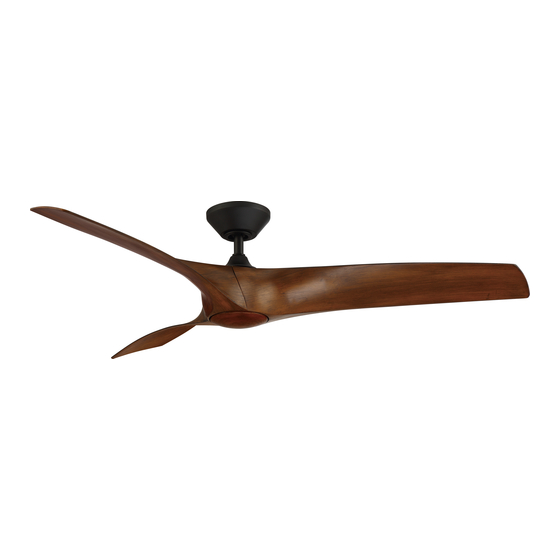

Summary of Contents for Modern Forms Zephyr 62

  • Page 1 Zephyr Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE Zephyr Instructions FR-W2006...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 0 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http://modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Get Smart... works with the Integrates Google Assistant seamlessly with: devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features: for flexible control complement high quality materials Quiet, reliable, and up to 70% more efficient than AC fans...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Attaching the Fan Blades 4. Installing the Adapter Plate 5. Hanging the Fan 6. Making the Electrical Connections 7. Installing the Optional Wall Control 8. Finishing the Installation 9. Installing the LED Luminaire Module 10.
  • Page 8 Package Contents Blade Set of 3 Adapter Plate RPL-F2006-**-BD-** 8. LED Module 2. Hanger Assembly F4IN-120V-R1-30 Mounting Bracket 9. Control Receiver Downrod Assembly w/Hardware RPL-HGR-ASM-** F-R3-2006-*** (optional for closer to ceiling mount applications) 10. Glass Shade RPL-F2006-GLA 3. Canopy w/Canopy Ring RPL-CAN-OCT-** 11.
  • Page 9 Hanging Weight: 17 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. Zephyr Instructions 9 FR-W2006...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outlet Box 3. Joist Outlet Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box Zephyr Instructions 11 FR-W2006...

  • Page 12: Installing The Mounting Bracket

    2. Installing the Mounting Bracket Remember to turn off power at the breaker. Follow the steps below to hang your fan properly: Disconnect power at the breaker to the fan location. 2. Remove 1 of 2 screws from the bottom of mounting bracket and save for use in Finishing the Installation section.
  • Page 13 120V Wires 2. cUL Listed Electrical Box Mounting Bracket 3. Mounting Bracket 2. Screw 4. Mounting Screws (supplied with outlet box) Zephyr Instructions 13 FR-W2006...

  • Page 14: Installing The Adapter Plate

    4. Installing the Adapter Plate Remove one of the three mounting plate screws from the mounting ring and loosen the other two screws (Do not remove) (Fig. 4). 2. Place the key holes in the adapter plate over the two screws previously loosened from the mounting ring.
  • Page 15 Hanger Ball/Mounting Bracket 2. Downrod 3. Canopy 4. Canopy Screw Cover 5. Coupling Cover 6. Collar Cotter Pin 8. Clevis Pin 9. Screws Zephyr Instructions 15 FR-W2006...
  • Page 16 5. Hanging the Fan Slip the coupling cover, canopy screw cover (painted side face down), and canopy (opened side up) onto the downrod (Fig. 5A). Coupling cover goes all the way to the bottom. 2. Carefully reinstall the hanger ball onto the downrod, being sure that the cross pin is in the correct position, the setscrew is tightened and wires are not twisted (Fig.
  • Page 17 Zephyr Instructions 17 FR-W2006...

  • Page 18: Making The Electrical Connections

    6. Making the Electrical Connections WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 19 Mounting Bracket 2. Receiver Outlet GREEN(Ground) Black(Hot) WHITE(Neutral) can be RED from Switch leg WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) GREEN(Hanger Bracket Ground) Hanger Receiver Bracket GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Bracket Ground) RED(to Motor) RED(to Motor) WHITE(Neutral)

  • Page 20: Installing The Optional Wall Control

    7. Installing the Optional Wall Control NOTE: Bluetooth Wall Control Optional Accessory not included. A Bluetooth Wall Control can be purchased separately. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 21 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wallplate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 27. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1...

  • Page 22: Finishing The Installation

    8. Finishing the Installation Secure all wire connections with supplied wire ties to assist in canopy installation. 2. Tuck connections neatly into ceiling outlet box. 3. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw on the hanger bracket.
  • Page 23 Zephyr Instructions 23 FR-W2006...

  • Page 24: Installing The Led Luminaire Module

    9. Installing the LED Luminaire Module WARNING: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. NOTE: If you do not plan to install the luminaire module with your fan at this time, skip to step 5. Remove 3 screws from the outer perimeter of the adapter plate and keep for future use.
  • Page 25 Zephyr Instructions 25 FR-W2006...

  • Page 26: Controlling The Fan

    10. Controlling the Fan Your fan was delivered to you with the included control already paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 27 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 28: Reset

    In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play.
  • Page 29 Pairing Unpairing Fan Wi-Fi Reset Press and hold the for 10 seconds until Press and hold buttons To purge, press and hold LED blinks green and receiver emits 2 long beeps buttons for 4 seconds for 10-15 seconds Factory Reset Receiver Factory Reset Press and hold buttons for 10 seconds until the Press the reset button on the receiver until the...

  • Page 30: Accessories

    14. Accessories personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Zephyr Instructions FR-W2006...
  • Page 31 Sloped Ceiling Kit Designed to accommodate buildings with steeper sloped ceilings up to 45° or 12/12 pitch XF-SCK Coupler Connects two downrods XF-I Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36”...

  • Page 32: Troubleshooting

    15. Troubleshooting My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. CAUTION: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
  • Page 33 My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 34 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 35 What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 36 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 37 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 38 Zephyr Instructions FR-W2006...
  • Page 39 Zephyr Instructions 39 FR-W2006...
  • Page 40 FR -W20 06 modernforms.com...
