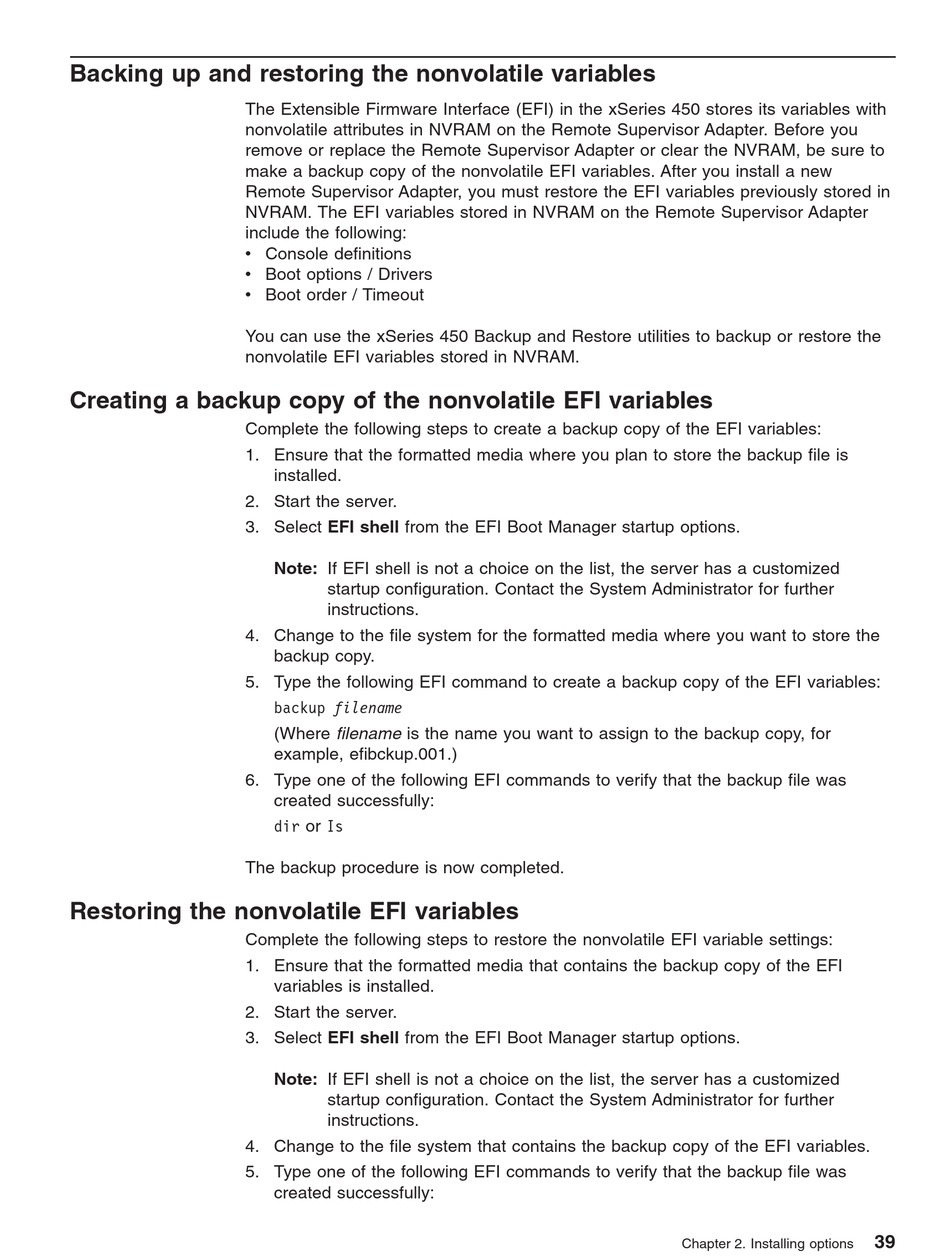

Backing up and restoring the nonvolatile variables

The Extensible Firmware Interface (EFI) in the xSeries 450 stores its variables with
nonvolatile attributes in NVRAM on the Remote Supervisor Adapter. Before you
remove or replace the Remote Supervisor Adapter or clear the NVRAM, be sure to
make a backup copy of the nonvolatile EFI variables. After you install a new
Remote Supervisor Adapter, you must restore the EFI variables previously stored in
NVRAM. The EFI variables stored in NVRAM on the Remote Supervisor Adapter
include the following:
v Console definitions
v Boot options / Drivers
v Boot order / Timeout
You can use the xSeries 450 Backup and Restore utilities to backup or restore the
nonvolatile EFI variables stored in NVRAM.

Creating a backup copy of the nonvolatile EFI variables

Complete the following steps to create a backup copy of the EFI variables:
1. Ensure that the formatted media where you plan to store the backup file is
2. Start the server.
3. Select EFI shell from the EFI Boot Manager startup options.
4. Change to the file system for the formatted media where you want to store the
5. Type the following EFI command to create a backup copy of the EFI variables:
6. Type one of the following EFI commands to verify that the backup file was
The backup procedure is now completed.

Restoring the nonvolatile EFI variables

Complete the following steps to restore the nonvolatile EFI variable settings:
1. Ensure that the formatted media that contains the backup copy of the EFI
2. Start the server.
3. Select EFI shell from the EFI Boot Manager startup options.
4. Change to the file system that contains the backup copy of the EFI variables.
5. Type one of the following EFI commands to verify that the backup file was
installed.
Note: If EFI shell is not a choice on the list, the server has a customized
startup configuration. Contact the System Administrator for further
instructions.
backup copy.
backup filename
(Where filename is the name you want to assign to the backup copy, for
example, efibckup.001.)
created successfully:
dir or Is
variables is installed.
Note: If EFI shell is not a choice on the list, the server has a customized
startup configuration. Contact the System Administrator for further
instructions.
created successfully:
