Flavel Linear Installation, Maintenance & User Instructions page 15

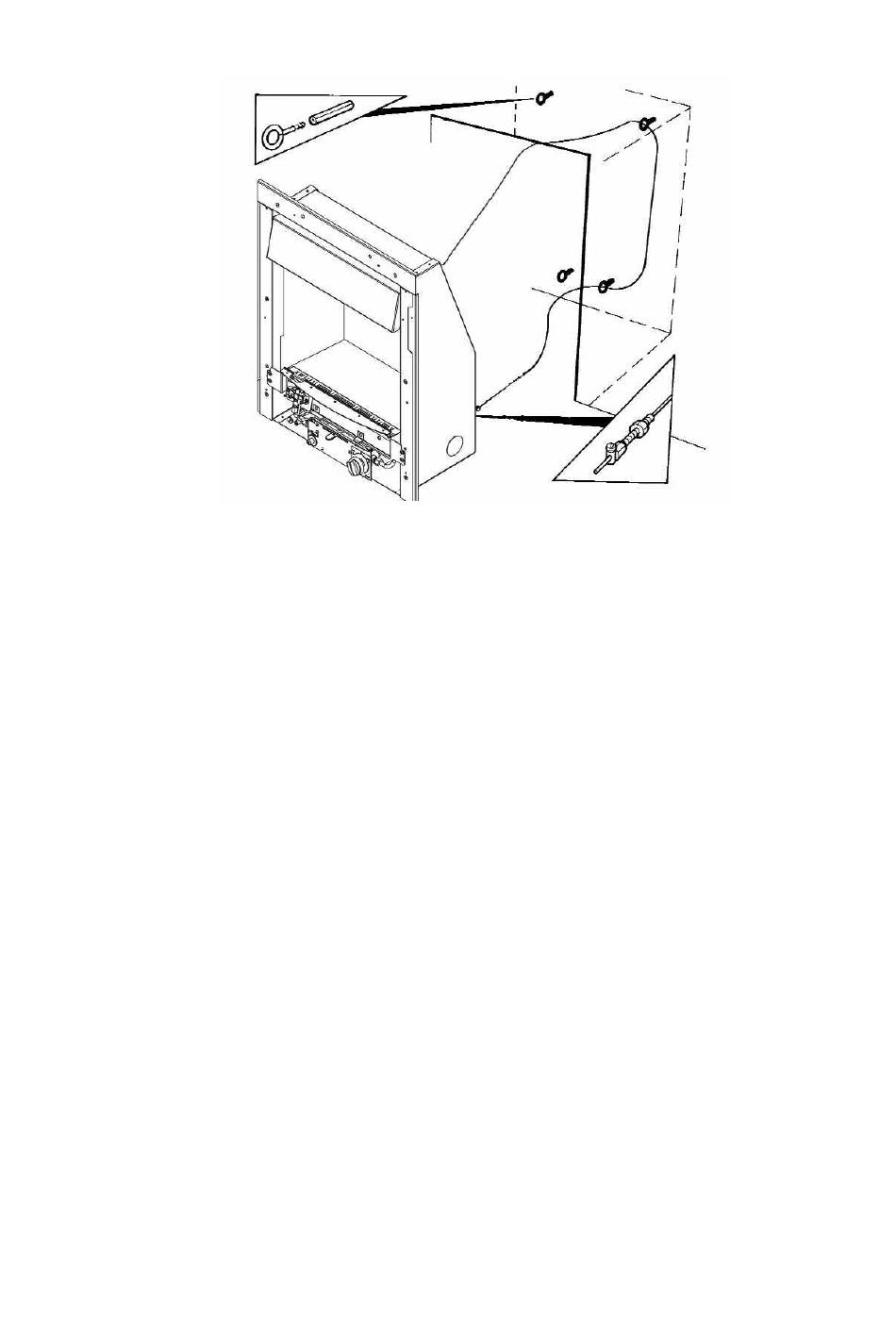

Fig. 10
2.2.12 Evenly tighten the tensioning nuts to tension both cables and pull the
fire snugly against the wall. Do not overtighten, it is only necessary to
pull the seal up against the sealing face of the wall, it does not need to
be compressed. Check that there are no gaps behind the seal.
2.2.13 With the fire securely in place, if a concealed gas connection has been
made through either of the access holes in the sides of the fire, the
holes should be closed around the pipe to prevent leakage of air
through the gap around the pipe.
2.2.14 Refit the burner. Fit the four retaining screws and check that the burner
is correctly locked into position.
2.2.15 Refit the front burner heat shield to the sides of the fire box (2 screws)
2.2.16 Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
15
