Introduction

The M&C gas coolers LGC-1 (with cooling coil for sample gas), LGC-1S (with longer cooling coil for sample gas) and
LGT-2 (with tube bundle for sample gas) are used in analytical technology to lower the dew point of humid sample
gases.
The M&C liquid coolers LC-1 (with cooling coil for liquid sample), LC-1S (with longer cooling coil for liquid sample)
and LTC-1 (with tube bundle for liquid sample) are used to reduce the temperature of liquid media.
Water, for example, is used as the coolant. The counterflow principle used ensures maximum cooling effect.

6.1 Serial number

The type plate with the serial number is located at the side panel of the cooler housing. Whenever you call M&C
regarding questions or orders for the spare parts please give us the serial number of the device.
7

Description

The M&C gas coolers LGC-1 and LGC-1S are designed with a cooling coil fully welded in the jacket tube. The LGC-
1S version is equipped with a longer cooling coil.
An integrated separation chamber in the lower part of the gas cooler ensures optimum condensate separation.
In the LGT-2 gas cooler, the sample gas flows through a tube bundle; here, too, there is a separation chamber in
the lower part of the gas cooler for condensate separation.
Coolant IN

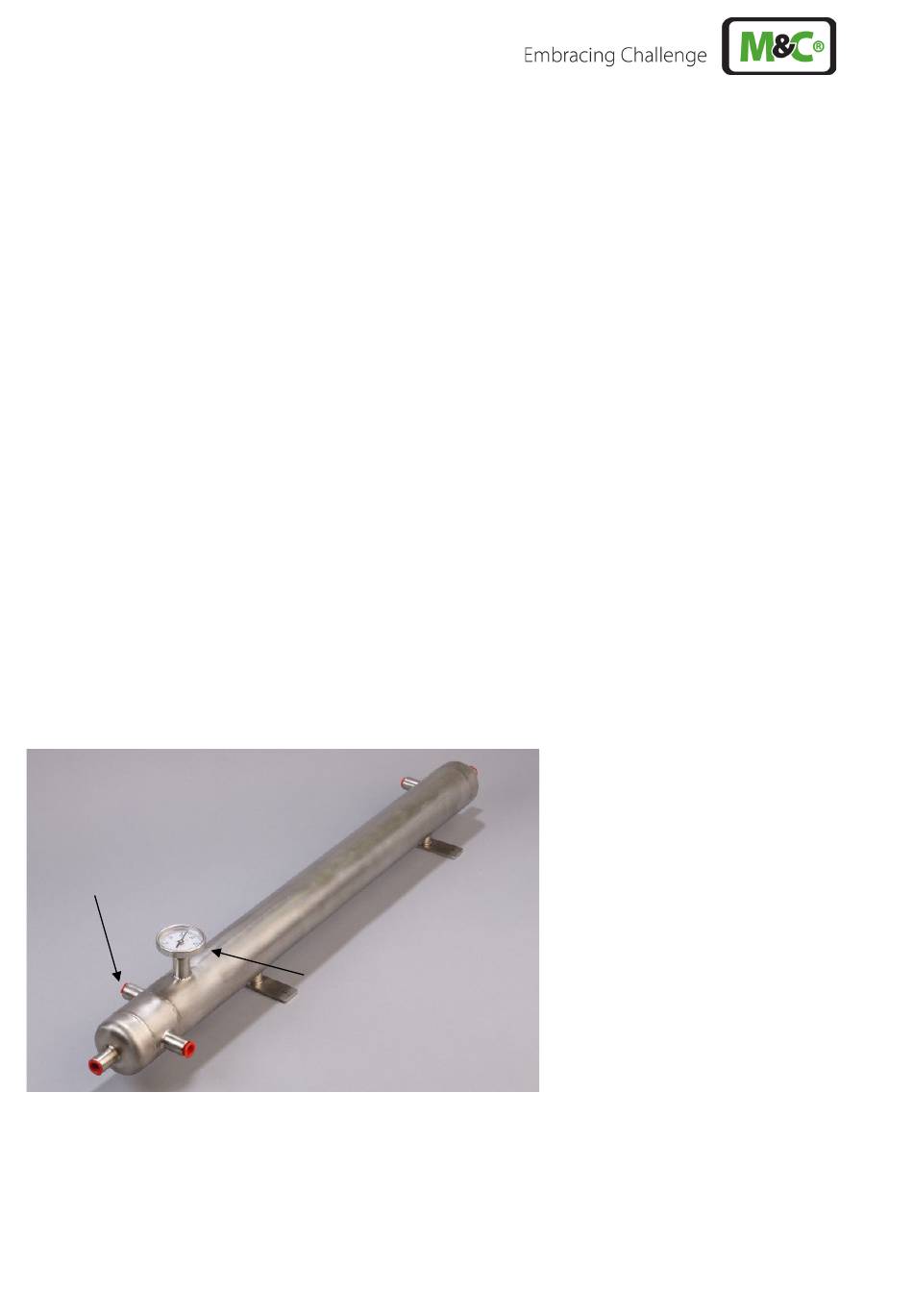

Figure 1 Gas cooler LGT-2 with tube bundle for the sample gas
A dial thermometer is positioned in the coolant inlet of the gas cooler (coolant IN), which can be used to indicate
the gas outlet dew point.
The condensate produced is discharged externally by using peristaltic pumps, traps or collecting vessels.
8
Dial thermometer
