- Page 1 PDWM 9300 DUAL UHF PLL 16CH WIRELESS SYSTEM POWER DOWN PDWM9300 OPERATION MANUAL OPERATION MANUAL PDWM 9300 DUAL UHF PLL 16CH WIRELESS SYSTEM POWER DOWN PDWM9300 OPERATION MANUAL OPERATION MANUAL...
- Page 2 Thank you for buying the PDWM9300 Wireless System. read through these operation instructions so you will know how to operate your model properly. After you read it, put it away in a safe place for future reference. Precautions Hand-held microphone...
-

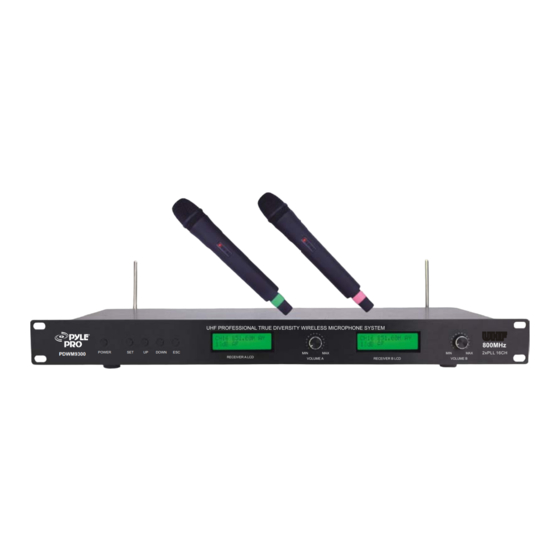

Page 3: Parts Description
1 2 3 4 FREQUENCY CHART CH00 CH01 CH02 CH03 CH04 CH05 CH06 731.2MHz 731.6MHz 732.0MHz 732.4MHz 732.8MHz 733.2MHz 733.6MHz CH08 CH09 CH10 CH11 CH12 CH13 CH14 734.4MHz 734.8MHz 735.2MHz 735.6MHz 736.0MHz 736.4MHz 736.8MHz CH A PARTS DESCRIPTION 1. Mesh: cartridge inside 2. - Page 4 UHF PROFESSIONAL TRUE DIVERSITY WIRELESS MICROPHONE SYSTEM CH00 731.2MHz 00dB AF UNBALANCED OUTPUT RISK OF ELECTRIC SHOCK DO NOT OPEN BALANCED OUT OPERATION 1. Pull out the antennas A and B. Make sure they are completely extended and vertical. 2. Insert one end of attached audio cable into "MIX" on rear panel, and the other end into MIC IN or AUX IN of amplifier or mixer.
- Page 5 Using the supplied audio cable, connect from the MIXED jack socket to the "MIC IN" / "LINE IN" socket on amplifier. Alternatively, you can connect an optional XLR cable from the "XLR MIXED" socket on the receiver to a professional mixer. Connect the mains power adaptor from "DC 15V"...
- Page 6 The wireless microphone is not turned on. The on air The microphone receiver is not indicator does turned on. not light up The microphone receiver is not connected properly. The battery in the wireless microphone is weak. The microphone receiver is not turned on .
- Page 7 1. Overall System Carrier Frequency: Frequency Stabilization Dynamic Range: Total Harmonic Distortion: Frequency Response: Audio Output Level: Separate Type: Mix Type: 2. Receiver Power Supply: Consume Power: Signal/Noise Ratio: Image & Spurious Rejection: Border Upon Channel Rejection: Receiving Sensitivity: De-emphasis: 3.
