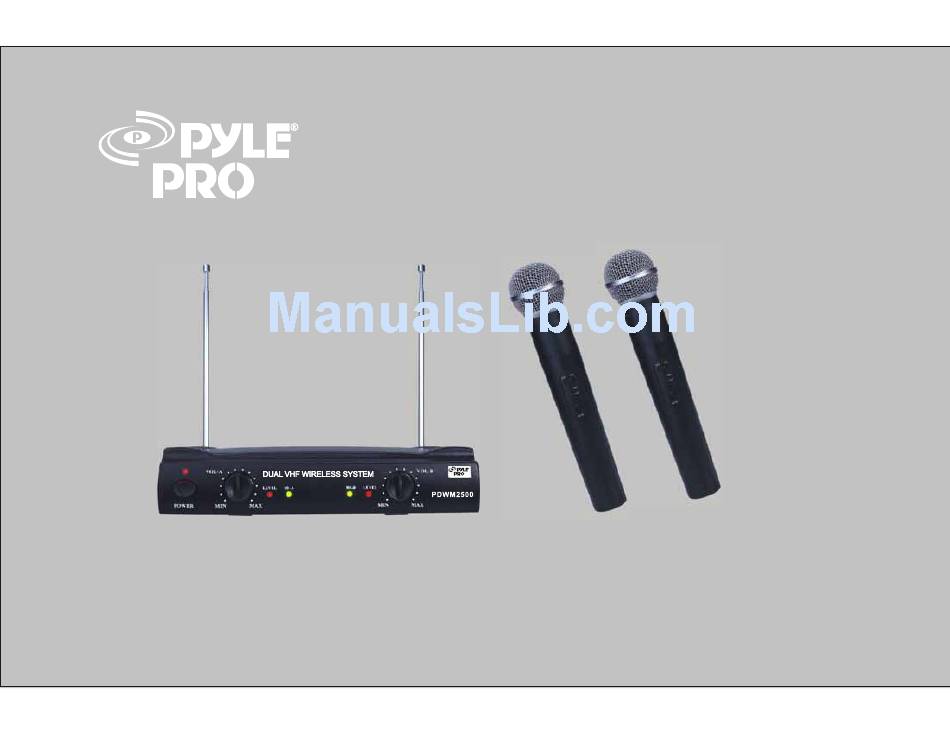

- Page 1 PDWM 2500 DUAL VHF WIRELESS SYSTEM DUAL VHF WIRELESS SYSTEM OPERATION MANUAL...
- Page 2 DUAL VHF WIRELESS SYSTEM OPERATION MANUAL Thank you for buying the PDWM2500 Wireless System. read through these operation instructions so you will know how to operate your model properly. After you read it, put it away in a safe place for future reference. Precautions Hand-held microphone Receiver unit/operation...
- Page 3 1. Unscrew the battery cover at the end of microphone, put a 9V battery into compartment with correct polarities, then close the cover. 2. Move "ON/OFF" switch to "ON" position, "PWR" indic ator comes on b lue. If it does n't come on, please check the voltage of battery or polarities.
- Page 4 1.Pull out the antennas A and B. 2.Insert one end of attached audio cable into "AF OUT" on rear panel, and the other end into "MIC IN" or "AUX IN" of amplifier or mixer. 3.Connect the power adaptor from DC 12V of receiver to a main power socket. 4.Switch on the receiver.
- Page 5 Using the supplied audio cable, connect from the AF Output jack socket to the "MIC IN" / "LINE IN" socket on amplifier. Connect the mains power adaptor from "DC 12V" jack to a suitable mains power socket. Installation Location: At least 3 ft. above ground level At Least 3 ft.
- Page 6 The wireless microphone is not turned on. The on air The microphone receiver is not indicator does turned on. not light up The microphone receiver is not connected properly. The battery in the wireless microphone is weak. The microphone receiver is not turned on .
- Page 7 A.Overall system Oscillation mode: Carrier Frequency Range: Frequency Stability: Modulation Mode: Max Deviation: Dynamic Range: T.H.D: Frequency Response: Operating range: Operating Temperature: B. Receiver Sensitivity: Image Rejection: De-emphasis: Audio output level: Audio Output Impedance: Power supply: Power Dissipation: C. Transmitter Mike capsule: Pre-emphasis: Antenna:...
