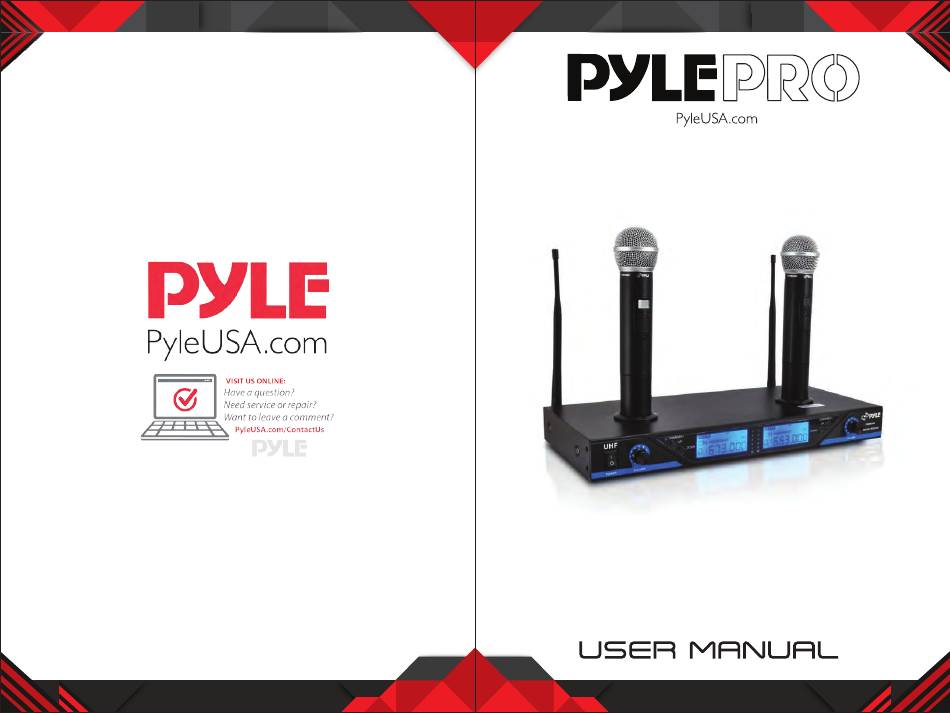

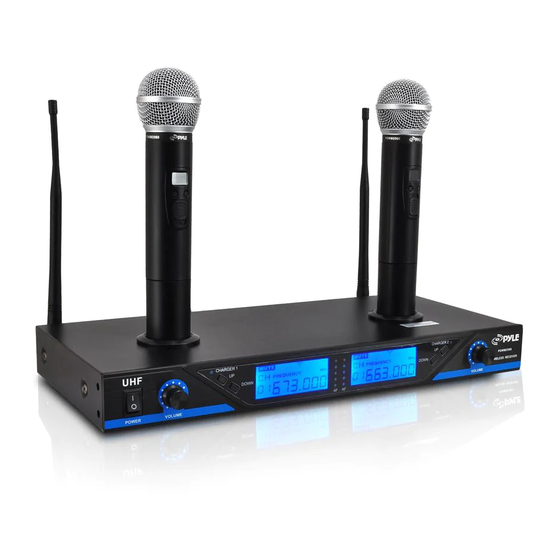

  • Page 1 PDWM2560 Wireless Microphone System...
  • Page 2 CATALOG Please read this instruction manual carefully so that you will understand how to operate the unit that you purchased correctly. Please keep and store this instruction booklet in a safe place after reading it for future reference. 1. FOREWORD This series of professional microphone system uses a super steady PLL- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Synthesized control circuit that matches a high e cient, low consumption...

  • Page 3: Transmitter Function & Features

    DUAL CHANNEL RECHARGEABLE RECEIVER FEATURES TRANSMITTER FUNCTION & FEATURES 1. Grille: Protects the cartridge and helps to reducing breath sounds and wind noise. 1. Power Switch: Power ON/OFF the receiver. 2. LCD Information Display: Show the transmitter frequency channel ect. 2.

  • Page 4: System Connections

    BODYPACK TRANSMITTER CONNECTION 1. Power and Audio Mute Switch. 2. Antenna: Transmit the RF signal of transmitter. 1. Lavaliere Microphone Connection: Connectthe connecter of supplied 3. Belt Clip: Attach the transmitter to the belt. lavaliere microphone to the connecting jack of transmitter(shown as below) 4.

  • Page 5: Transmitter Battery Installation

    TRANSMITTER BATTERY INSTALLATION TROUBLESHOOTING 1. Battery Installation of Handheld Microphone: Open the battery cover. PROBLEM INDICATOR STATUS SOLUTION Insert the supplied batteries into battery port observing polarity and close Red transmitter Slide transmitter POWER ON/OFF switch No Sound indicator is not to ON position.
  • Page 6 SYSTEM SPECIFICATIONS HAND-HELD TRANSMITTER SPECIFICATIONS • RF Carrier Frequency Range: Power Requirements 1.5VAA battery X 2 Approximately 573 to 597.8 MHZ (Available frequencies depend on Nominal Current Drain LESS THAN 100mA applicable regulations in country where system is used). Modulation Type •...
