Summary of Contents for Pyle Pro PDWM8880

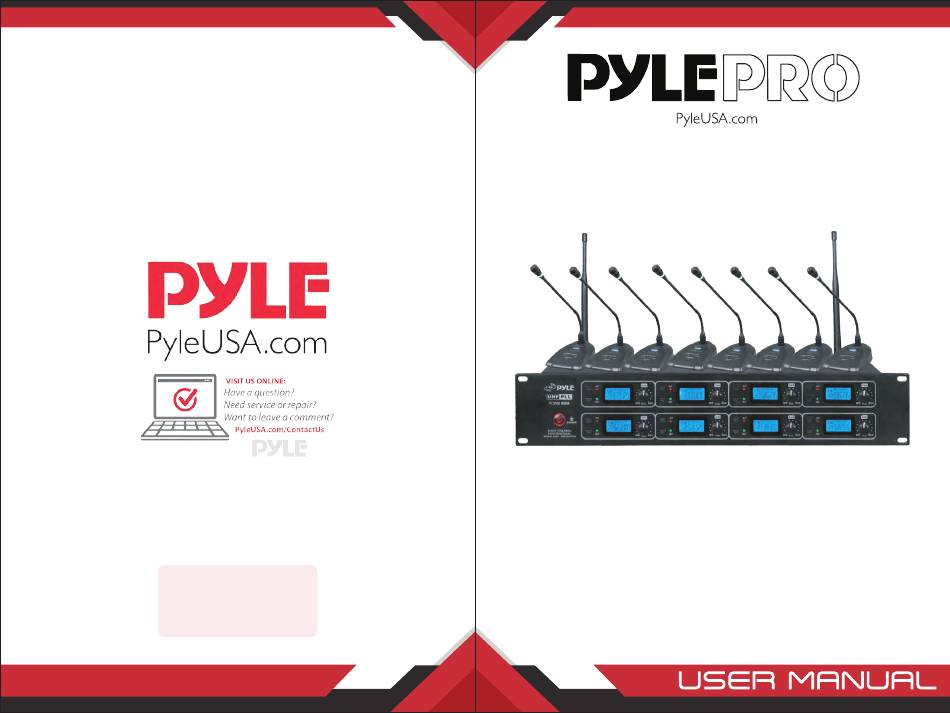

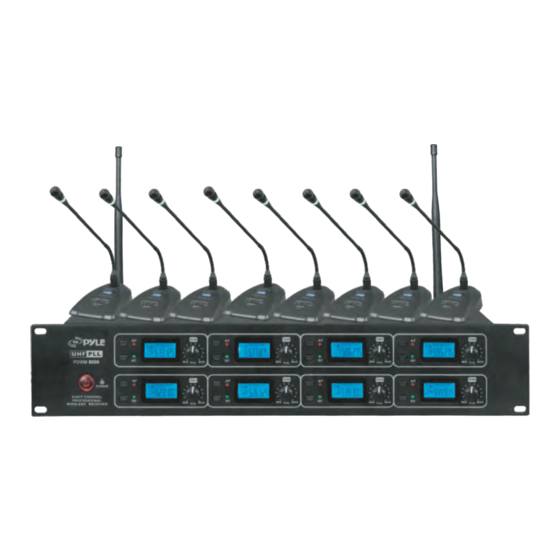

- Page 1 PDWM8880 8-Ch. Conference Microphone System Questions? Issues? We are here to help! UHF Desktop/Table Meeting Wireless Microphones Phone: (1) 718-535-1800 Email: support@pyleusa.com & Receiver with (8) Gooseneck Mics, Rack Mountable...
- Page 2 This professional wireless set provides a high quality microphone with UHF CATALOG radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
- Page 3 FOUR CHANNEL RECEIVER FEATURES CONFERENCE MICROPHONE FEATURES 1. Power Button: Power ON/OFF the receiver. 2. Down Function Button: Sets channel data. 3. "RF" Signal lndicator: lt glows when the Receiver receive RF signal from Transmitter. 4. LCD Information Display: Show the receiver frequency channel ect. 5.
- Page 4 TRANSMITTER BATTERY INSTALLATION Locking Operation • Press and hold "UP/DOWN" button, release the button once the CH number Conference Microphone Battery Installation: begins to ash Push open the battery cover,Insert the supplied batteries into battery jar in • When ashing, continue to press "UP/DOWN" button to increase/decrease polarity and close the battery cover.
-
Page 5: Troubleshooting
SYSTEM CONNECTIONS TROUBLESHOOTING 1. Receiver Power Connection: Connect the DC connector of supplied AC/DC PROBLEM INDICATOR STATUS SOLUTION adapter Into the DC power input of receiver. Plug the AC Input connecter Slide transmitter POWER ON/OFF switch into an AC120/60Hz or AC220V/50Hz outlet. (Shown as below) Red transmitter to ON position. - Page 6 SYSTEM SPECIFICATIONS System Features: • RF Carrier Frequency Range: • Professional UHF Conference Microphone System Approximately 523 to 597.8 MHZ (Available frequencies depend on • Desktop, Tabletop O ce Microphone Style applicable regulations in country where system is used). • Includes (8) Tabletop Goosenecks Mics •...
- Page 7 Gooseneck Microphone Transmitters: • Universal Desktop Conference Meeting Mics • Digital LCD Display with Frequency Readout • Adjustable Transmitter Volume Control • Convenient Flexible Gooseneck Positioning • Battery Level Indicators • Mute Button Function • Battery Operated Table Mics, Require (2) x ‘AA’ Batteries Each, Included •...
