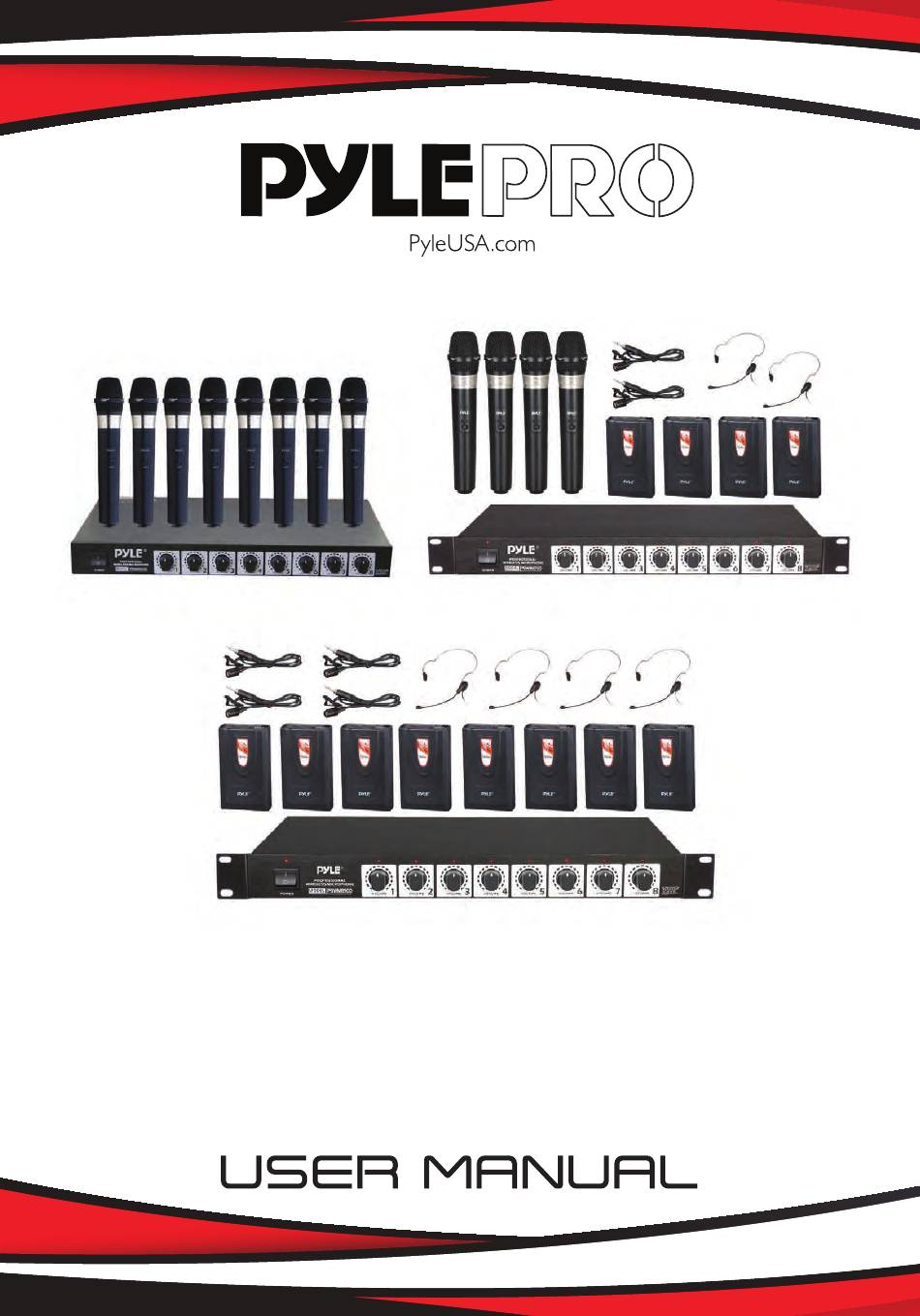

- Page 1 PDWM8400 PDWM8700 PDWM8900 PDWM8400 - PDWM8700 - PDWM8900 8 Mic Professional Handheld VHF Wireless Microphone System...
-
Page 2: Main Features
FOREWORD Please read these instructions carefully before operating this product and retain them for future reference. MAIN FEATURES • Uses multilevel high frequency and midfrequency narrowband lters to avoid interference. • Quartz crystal oscillating circuits guarantee a steady frequency. • Audio compression and expansion technology to increase the dynamic range and lower feedback. - Page 3 TECHNICAL PARAMETERS UNIT SPECIFICATION Modulation T.H.D -0.8% Distance 50-100M Temperture 14-131°F RECEIVER Sensitivity 10UV/40DB emf Removing weight 50ms Audio output 0-0.35Vp-p 5k Output connection 6.3 mm plug Power supply DC:12-17V HANDHELD TRANSMITTER Radio output power >20mW Antenna Hide inside Pre-weight 50 uS Cartridge Moving dynamic coil...
-
Page 4: Technical Parameters
TECHNICAL PARAMETERS WIRELESS MEETING MICROPHONE The light on the microphone indicates that the battery has power and that the microphone is functioning. DC9V Power Supply <35mA Power Consumption >90dB S/N Ratio >80dB Channel Interference Ratio >80dB Dynamic Range <3% T.H.D Condenser noise proof Cartridge Uni-direction... -
Page 5: Handheld Transmitter
TECHNICAL PARAMETERS HANDHELD TRANSMITTER 1. Grill 2. Power switch 3. Power light 4. Low voltage indicator 5. 9V Battery 6. Battery cover LAVALIER TRANSMITTER OPERATION 1. Please put the battery in the battery case correctly with right poles 2. Switch ON 3. -
Page 6: Front Panel
TECHNICAL PARAMETERS FRONT PANEL 1. Power Switch 2. Power Indicator 3. Volume Control 4. Receiving Indicator BACK PANEL 1. Antenna 2. Audio Output 3. Mixed-Balance Output 4. Balanced Output 5. DC Power www.PyleUSA.com... - Page 7 SYSTEM OPERATION 1. Please take note of the following work ow diagram for reference on connecting this machine. 2. Make sure your system is set to the correct power (110 V). Then set the volume of your sound equipment. 3. Adjust the mix so that the users of MIC 1 and MIC 2 sounds good together. 4.
-
Page 8: Troubleshooting
TROUBLESHOOTING Some common problems and their solutions are printed below. PROBLEM SOLUTION • Make sure the transmitter No sound; • POWER switch is ON and the receiver is plugged into a RF light(s) not power source glowing • Check battery. •...
