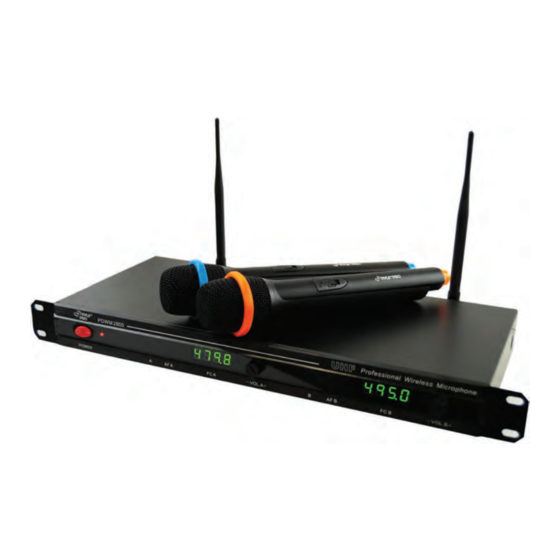

PDWM2800
Professional UHF Wireless Microphone System
with (2) Handheld Wireless Mics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDWM2800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle Pro PDWM2800

Summary of Contents for Pyle Pro PDWM2800

  • Page 1 PDWM2800 Professional UHF Wireless Microphone System with (2) Handheld Wireless Mics...

  • Page 2: Table Of Contents

    CONTENTS GENERAL DESCRIPTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - FEATURES - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CAUTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ILLUSTRATION OF RECEIVER...

  • Page 3: General Description

    INTRODUCTION This wireless microphone system uses the UHF band. It’s perfect for use on performance stages, assembly halls, and karaoke bars. You can use this product with lapel mics or handheld microphones. Please read this manual carefully for proper operation. FEATURES •...

  • Page 4: Receiver Remark

    RECEIVER RECEIVER REMARK 1. Power Switch 4. Antenna 2. Audio Volume Control 5. Mixed Audio Outlet & Separate Outlet 3. RF & Audio Signal Display 6. DC Power Input 490.0 505.8 1. Power Switch 5. Audio Volume 2. Switch orer of RF and Antenna indicator 6.

  • Page 5: Using The Receiver

    USING THE RECEIVER 1. Draw out the antennas and form them in a V shape. 2. Connect one end of the audio cable with the DC input jack of the receiver and the other to the microphone input port of an audio mixeror power ampli er. 3.

  • Page 6: Using The Handheld Transmitter

    USING THE HANDHELD TRANSMITTER 1. Open the handheld microphone battery cover and put in two batteries - make sure the polarity is correct. 2. Turn ON the power switch of the microphone. The power indicator on the micro phone and the RF indicator should be lit. 3.

  • Page 7: Using Body-Pack Transmitter

    USING THE BODY-PACK TRANSMITTER 1. Open the transmitter battery compartment and insert a fresh 9V battery. Observe proper battery polarity ( “ +/–” ). 2. Turn ON the microphone power switch and the power indicator will be lit. The transmitter will send the signal to the receiver and the RF indicator is lit. 3.
  • Page 8 TROUBLESHOOTING BREAK DOWN REASONS SOLUTION The distance between 1. Do not draw out the 1. Draw out the the receiver and antenna fully. antenna fully. transmitter is not far 2. The power of the 2. Replace new enough battery is not enough. battery.

  • Page 9: Specs And Features

    PDWM2800 Professional UHF Wireless Microphone System with (2) Handheld Wireless Mics Receiver: • UHF audio band transmission • Rack mountable • Independent volume control for each microphone • LCD display for operating frequency readout • Foldable antennas • Sensitivity: <2UV (12dB SINAD) •...
