PDWM9000 User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDWM9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle Pro PDWM9000

Summary of Contents for Pyle Pro PDWM9000

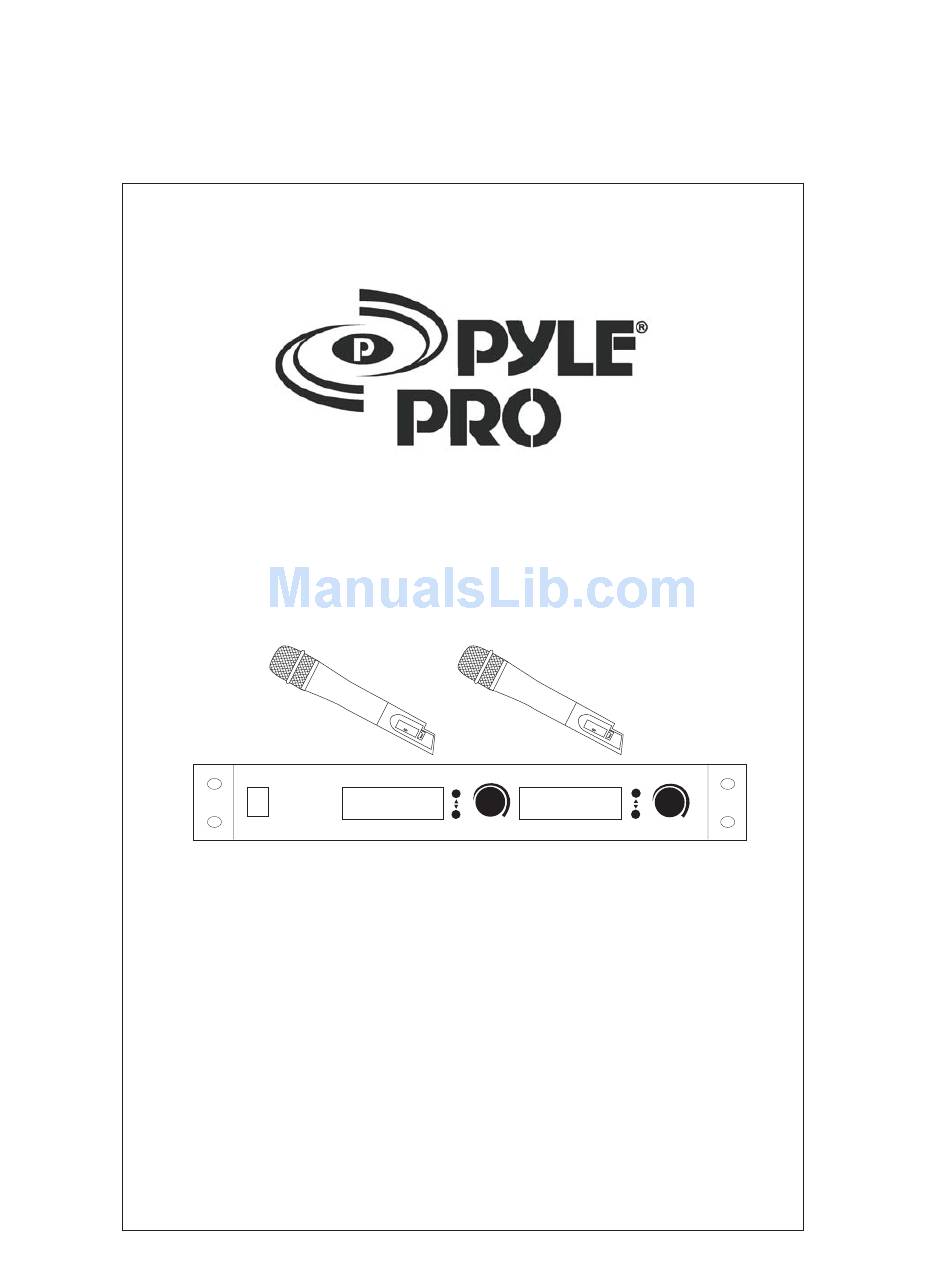

  • Page 1 R E C E I V E R L C D C H . A M I N M A X R E C E I V E R L C D C H . A M I N M A X PDWM9000 User’s Manual...

  • Page 2: Parts Name And Functions

    Introduction Thank you for selecting th e PDWM9000 Dual UHF Synthesized Diversity System. Before operating please read this instruction manual carefully and thoroughly in order to understand the correct operating procedures and achieve the best results. The PDWM9000 is an advanced PLL synthesized system.

  • Page 3: Installation Of The Receiver

    2. Installation of the Receiver ANT B OUT B MIX OUT OUT A 1. Power Connection Connect the AC power cable to the 110/220V AC jack (9) and the other end into an AC outlet. Check the voltage selector (10) as shown in Fig. 4. DC12 AC: 110/220V 50/60Hz 2.
  • Page 4 • The receiver should be placed more than 3 ft. above the floor and 3 ft. away from the wall. • Antennas should be fully extended for best reception. 3. Parts Name And Function (Microphone) 1. Grill 2. Three position switch (on top).
  • Page 5 1. Screw the battery box cover counter clockwise. Insert a 9v battery (check the polarity). 2. Turn on the microphone. 3. The microphone features a three position switch. Place the switch in Stand By (middle position) to mute the sound without turning off the mic. Frequency & Channel Listing...

  • Page 6: Troubleshooting

    5. Troubleshooting 1. Unit does not turn on. • Make sure the power cable is connected properly. • Check the fuse. • Check the voltage selector 2. AF display moves, but there is no sound output. • Check volume level. •...

  • Page 7: Microphone Specifications

    Microphone Specifications Transmitter Power: ..8.5mW Modulation Type: ..FM, F3F Max Deviation: ..+25Khz Spurious Emission: ..
