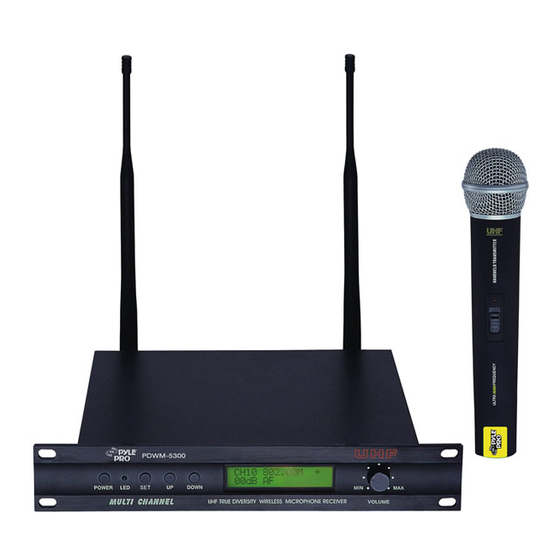

PDWM 5300
UHF PLL Diversity Wireless
UHF PLL Diversity Wireless
Microphone System w/ LCD
Microphone System w/ LCD
PDWM5300
OPERATION MANUAL
OPERATION MANUAL
PDWM 5300
UHF PLL Diversity Wireless
UHF PLL Diversity Wireless
Microphone System w/ LCD
Microphone System w/ LCD
PDWM5300
OPERATION MANUAL
OPERATION MANUAL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pyle Pro PDWM5300
Summary of Contents for Pyle Pro PDWM5300
- Page 1 PDWM 5300 UHF PLL Diversity Wireless UHF PLL Diversity Wireless Microphone System w/ LCD Microphone System w/ LCD PDWM5300 OPERATION MANUAL OPERATION MANUAL PDWM 5300 UHF PLL Diversity Wireless UHF PLL Diversity Wireless Microphone System w/ LCD Microphone System w/ LCD...
- Page 2 Thank you for buying the PDWM5300 Wireless System. read through these operation instructions so you will know how to operate your model properly. After you read it, put it away in a safe place for future reference. Precautions Hand-held microphone...
-
Page 3: Parts Description
1 2 3 4 FREQUENCY CHART CH00 CH01 CH02 CH03 CH04 CH05 CH06 795.2MHz 795.8MHz 796.4MHz 797.0MHz 797.6MHz 798.2MHz CH08 CH09 CH10 CH11 CH12 CH13 800.0MHz 800.6MHz 801.2MHz 801.8MHz 802.4MHz 803.0MHz PARTS DESCRIPTION 1. Mesh: cartridge inside 2. Tube 3. Power LED indicator 4. - Page 4 CH00 795.2MHz 00dB AF PARTS DESCRIPTION 1. Power Switch: Turn on power switch, the display of LCD will illuminate. 2. Power LED indicator: Turn on power switch, this indicator will illuminate. 3. SET: Press once to adjust frequency by UP/DOWN buttons. Press again to exit. 4.
- Page 5 Using the supplied audio cable, connect from the AF OUT jack socket to the LINE IN socket on amplifier. Alternatively, you can connect an XLR cable to the XLR balanced output. Connect the mains power adaptor from "DC 12V" jack to a suitable mains power socket. Installation Location: At least 3 ft.
- Page 6 The microphone receiver is not turned on . No sound The connected audio equipment is not turned on. The speakers/headphones. are not connected to the audio equipment. The battery in the wireless microphone is weak. The sound is distorted The AUDIO OUT on the receiver is not set correctly.
- Page 7 A. Overall System arrier Frequency: UHF 795~805MHz Frequency Stabilization: less than 30ppm Dynamic Range: more than 90dB Total Harmonic Distortion: less than 0.5% Frequency Response: 40hz~15khz 3dB Audio Output Level: separate type:0~ 400mV Mix Type: 0~ 200mV B. Receiver Power Supply: DC 12V Consume Power: Signal/Noise Ratio:...
