Screen - Fluke 972A User Manual

No. Item
j
Batteries
k
Protective cover
lanyard
l
Protective cover
for external
sensor jack
m
External sensor
jack

Screen

No. Item
a
b
c
2 AAA batteries, installed
The lanyard can effectively prevent losing the interface protective cover.
One end of the lanyard is tied to a fixed point on the protective cover,
and the other end with a small clip that snaps into a slot inside the
battery compartment is threaded through a small groove in the battery
compartment cover.
See Use External Sensor
See Use External Sensor
1 2 3
13
12
11

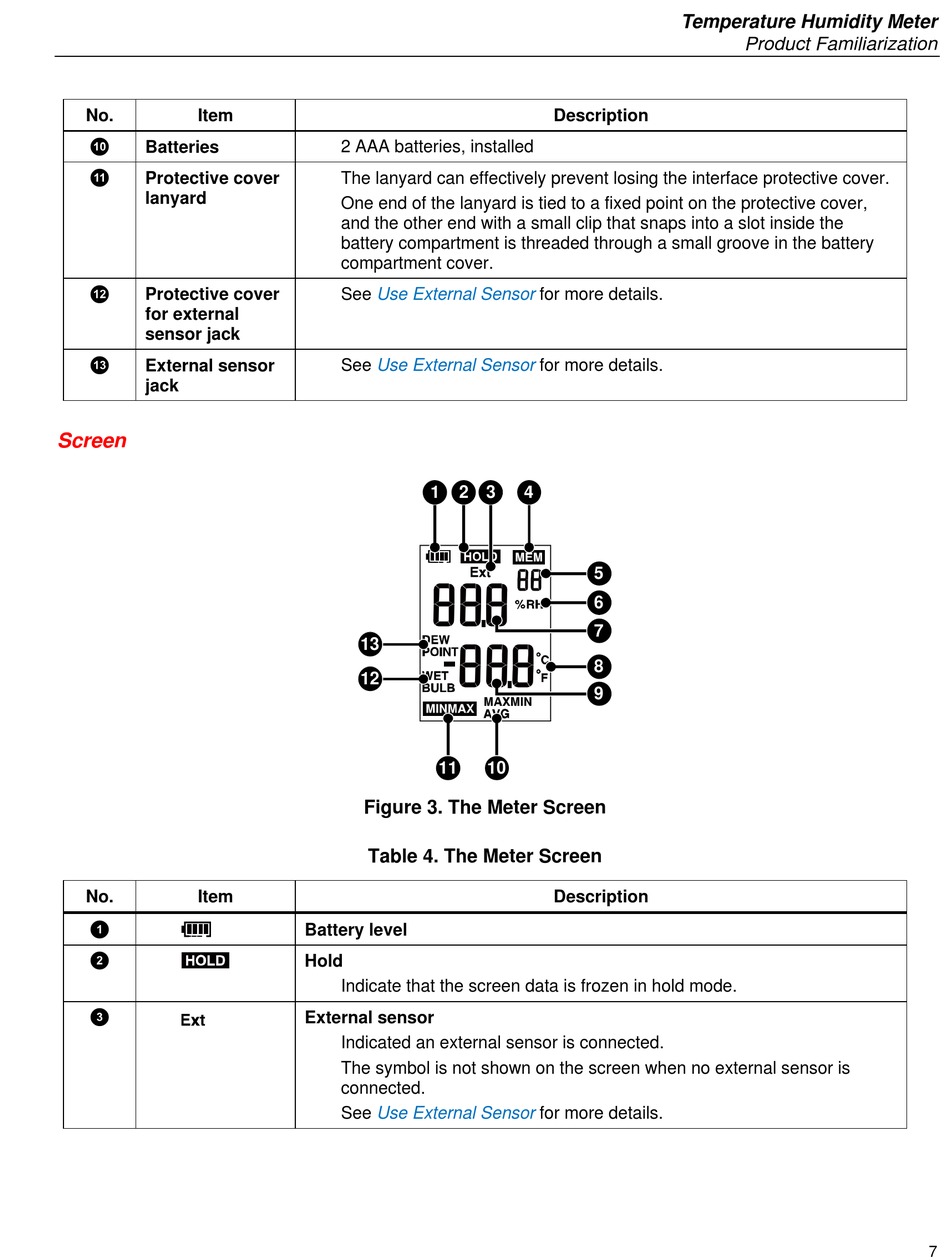

Figure 3. The Meter Screen
Table 4. The Meter Screen
Battery level
Hold
Indicate that the screen data is frozen in hold mode.
External sensor
Indicated an external sensor is connected.
The symbol is not shown on the screen when no external sensor is
connected.
See Use External Sensor
Description
for more details.
for more details.
4
5
6
7
8
9
10
Description
for more details.
Temperature Humidity Meter
Product Familiarization
7
