Overview

Overview

Introduction


To extend sensor life, keep the sensor's protective shutter closed whenever the meter is not in use.

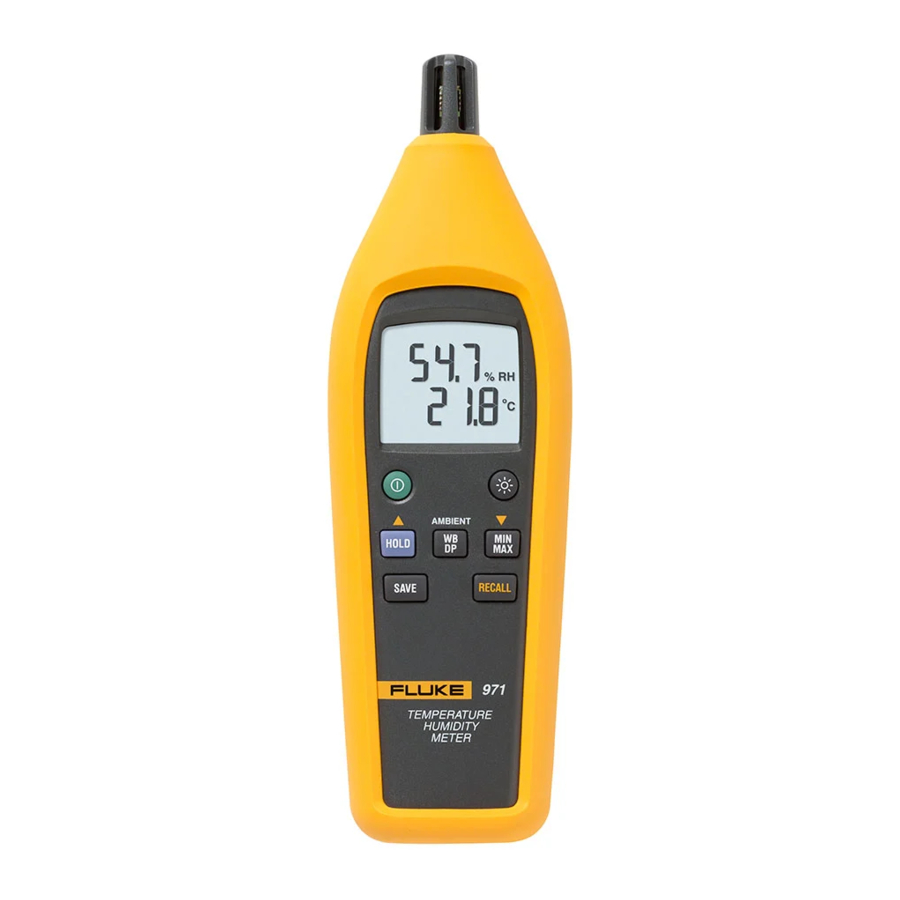

The Fluke Model 971 (hereafter referred to as "the Meter" is a battery powered meter that measures relative humidity and temperature. Through a few easy to use controls, the Meter displays three different temperature points of the air surrounding the meter's sensor: ambient, wet bulb, and dew point.

Electrical and Safety Symbols

warning Important information. See manual Low battery when shown in the display.
Conforms to European Union requirements Conforms to Australian standards.
Conforms to Canadian standards Power ON / OFF

Display

Display

No. Symbol Meaning
1 Low battery.
2 Wet bulb or dew point temperature displayed.
3
MAX, MIN, AVG
Min Max Record enabled. Maximum, minimum, or average reading displayed.
4 °F, °C Temperature measurement units.
5 % RH Relative humidity measurement unit.
6 Displayed reading is from memory. Memory location number.
7 HOLD enabled. Display freezes present reading.

Operation

Note
When moving from one temperature/humidity extreme to another, allow time for the Meter to stabilize.

After opening the sensor's protective shutter, press to turn on the Meter and start taking measurements.
Temperature readings are displayed in either the Celcius (°C) or Fahrenheit (°F) scale. To switch between °C and °F, remove the battery compartment door and position the temperature scale switch to the desired scale. See Figure 1.
Battery Compartment
Figure 1. Battery Compartment

Dew Point and Wet Bulb Temperature

The Meter displays ambient temperature when first turned on. To display dew point (DP) temperature, press once. Press again to switch to wet bulb (WB) temperature. Pressing a third time returns the Meter to ambient temperature. The display indicates when dew point and wet bulb temperatures are selected.

HOLD

Pressing causes the meter to freeze the displayed readings. It also causes the meter to stop taking measurements. is displayed when HOLD is enabled. To continue taking measurements, press again.

Min Max Record

When enabled, Min Max Record stores a new measurement when it is either higher or lower than a previously stored maximum or minimum measurement. Press to start Min Max Record. appears in the display to indicate Min Max Record mode is enabled.

Note
The temperature scale switch (°C/°F), Save, Recall, and Hold buttons, as well as the Automatic Power Off (APO) switch are all disabled when Min Max Record is enabled.

To view the stored Minimum, Maximum and Average readings, press repeatedly to cycle through all three stored sets of measurements. You must select wet bulb, dew point, or ambient before reading their respective Min Max Avg values. The display indicates which stored set of readings is displayed. Pressing a fourth time displays the present measurement.
To exit Min Max Record mode and resume normal operation, press and hold for two seconds.

Saving and Recalling Measurements

The Meter stores up to 99 readings for later recall. Each memory location stores relative humidity as well as ambient, dew point and wet bulb temperatures.
Pressing saves the present readings to a memory location. and the memory location number appear in the display to indicate the readings have been stored. Press W to return the display to the present reading. After all 99 memory locations are filled, each subsequent save overwrites a memory location starting with the first.
To recall the readings from memory, press . If the memory location you are looking for is not already displayed, press or until the desired memory location is displayed. To return the Meter to normal operation, press for two seconds.
By default, relative humidity and ambient temperature are displayed when a memory location is recalled. Pressing cycles through the Wet Bulb, Dew Point, and Ambient temperatures stored in the memory location displayed.
To erase all 99 memory locations, simultaneously press and for five seconds.

Automatic Power Off

To save battery life, the Automatic Power Off (APO) feature can be used to turn the meter off after 20 minutes of no activity. To enable or disable the APO feature, remove the battery cover and position the APO switch to the desired position. See Figure 1.

Maintenance

Battery Replacement

Meter power is supplied by four 1.5 V (AAA size) batteries. When appears in the display, replace the batteries as soon as possible. To replace the batteries:

  1. Back out the screw at the top of the battery door and lift the door away from the Meter.
  2. Remove the four AAA batteries from the compartment.
  3. Replace with four new AAA batteries, observing proper polarity as depicted on the bottom of the battery compartment.
  4. Replace the battery door and tighten the screw to lock it in place.

Cleaning


To avoid damage to the case, do NOT use abrasives or solvents for cleaning the meter.
Periodically wipe the case with Fluke Meter Cleaner or a damp cloth and detergent.

Specifications

Temperature Range: -20 to 60°C (-4 to 140°F)
Accuracy: ±0.5°C on 0 to 45°C
±1.0°C on -20 to 0°C, 45 to 60°C
±1.0°F on 32 to 113°F
±2.0°F on -4 to 32°F, 113 to 140°F
Resolution: 0.1°C /°F
Update rate: 500 ms
Sensor type: NTC
Relative Humidity Range: 5 to 95% RH
Accuracy: ±2.5% RH (10 to 90% RH) @23°C (73.4°F)
±5.0% RH (<10, >90% RH) @23°C (73.4°F)
Resolution: 0.1% RH
Response time: 60 seconds max.
Sensor hysteresis: ±1% RH with excursion of 90% to 10% to 90 %
Sensor type: Electronic–capacitance polymer film
Temperature Coefficient: 0.1 x (specified accuracy)/°C (< 23°C or > 23°C)
Wet Bulb Temperature Range: -20 to 60°C (-4 to 140°F)
Dew Point Temperature Range: -50 to 60°C (-58 to 140°F)
Memory: 99 data points
Power: Battery Life: 4 each AAA batteries, 24A, LR03 200 hours
Environment Storage: -20 to 60°C at <80% R.H. (Batteries removed)
Operating: Temperature: -20 to 60°C
Humidity: 0 to 55°C
Weight/Dimensions: 190 g with batteries 194 mm x 60 mm x 34 mm
Safety Approvals/ Certifications: Meets Australian requirements )
Meets CSA requirements
Meets European requirements
Meets EN61326-1, Schedule B Electromagnetic Emissions and Susceptibility

Specifications subject to change without notice
