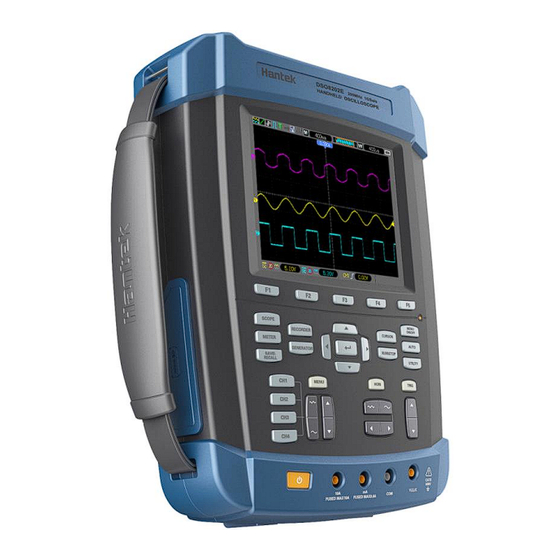

- Page 1 DSO8000E SERIES HANDHELD OSCILLOSCOPE USER’S MANUAL 8072E/8102E/8152E/8202E （V1.0.3）...
-
Page 2: Table Of Contents
Terms on Product ....................... 2 Symbols on Product ......................2 Product Scrapping ......................2 Chapter 2 Overview ........................3 Brief Introduction to DSO8000E Series ................3 Help System ........................3 Chapter 3 Getting Started Guide ....................4 Installation .......................... 4 Functional Check ....................... - Page 3 10.1 Problem Settlement ......................80 Chapter 11 Specifications ...................... 81 11.1 Technical Specifications ....................81 11.2 Accessories ........................87 Chapter 12 General Care and Cleaning ................88 12.1 General Care ........................88 12.2 Cleaning ........................... 88 DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 4 Contents Chapter 13 Services and Support ..................89 Appendix A Harmful and Poisonous Substances or Elements ..........90 DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 5: Copyright Declaration
Hantek reserves all rights to modify this document without prior notice. Please contact Hantek for the latest version of this document before placing an order. Hantek has made every effort to ensure the accuracy of this document but does not guarantee the absence of errors. Moreover, Hantek assumes no responsibility in obtaining permission and authorization of any third party patent, copyright or product involved in relation to the use of this document. -
Page 6: Chapter 1 Safety Tips
WARNING. Warning statements point out conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 7: Terms On Product
To avoid them being released outside and to minimize the waste of natural resources, we suggest you reasonably call back this device to ensure proper recovery and recycling of most materials within it. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 8: Chapter 2 Overview
5.6 TFT Table 2-1 Model List of DSO8000E Series DSO8000E Series oscilloscopes cover the bandwidths from 70MHz to 200MHz, and provide the real-time and equivalent sample rates respectively up to 1GSa/s and 25GSa/s. In addition, they have maximum 2M memory depth for better observation of the waveform details, and 5.6 inch color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation. -
Page 9: Chapter 3 Getting Started Guide
CH1 BNC and push to connect; then, turn to right to lock the probe in place; after that, connect the probe tip and reference lead to the PROBE COMP connectors. The Probe COMP: ~2V@1KHz. PROBE COMP DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 10: Observe The Waveform
Do not touch metallic portions of the probe head while it is connected to a voltage source. Connect the probe to the oscilloscope and connect the ground terminal to ground before you start any measurements. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 11: Use Of Probe Check Wizard
3. If necessary, use a nonmetallic screwdriver to adjust the variable capacity of your probe until the shape of the waveform turns to be the same as the above figure. Repeat this step as necessary. See the figure below for the way of adjustment. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 12: Probe Attenuation Setting
20 minutes until it has adequately warmed up. To compensate the signal path, disconnect any probes or cables from the front-panel input connectors. Then, push the UTILITY button, select the Self Cal option and follow the directions on the screen. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 13: Chapter 4 Main Feature Description
Slope Trigger uses the rise and fall times on the edge of signal for triggering. ➢ Overtime Trigger happens after the edge of signal reaches the set time. ➢ Alter Trigger, as a feature of analog oscilloscopes, gives stable displays of signals at DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 14: Data Acquisition
In such cases, you should use the Peak Detect mode to acquire data. Peak Detect: In this acquisition mode, the oscilloscope gets the maximum and minimum values of DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 15: Waveform Scaling And Positioning
The oscilloscope shows the horizontal scale as time per division in the scale readout. Since all active waveforms use the same time base, the oscilloscope only displays one value for all the active channels. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 16: Waveform Measurement
As this measurement uses the waveform record points, it is more precise than the graticule and cursor measurements. Automatic measurements show the measurement results by readouts which are periodically updated with the new data acquired by the oscilloscope. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 17: Chapter 5 Basic Operation
The figure below illustrates the front panel of the DSO8000E series digital oscilloscope. DSO8000E Front Panel of Series Description 1. LCD Display 2. F1~F5: Sets or switch options for the menu 3. Power light. 4. MEAS: Shows Measurement menu DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 18: Displayarea
: XY : Vectors : Dots : Gray indicates auto persistence; Green means persistence display is enabled. When the icon is set to green, the time for persistence display will be shown behind it. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 19 : If this icon lights up, it means the USB disk has been connected. : This icon lights up only when the USB slave interface is connected with the computer. Main Time Base Window Display of window’s position in data memory and data length. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 20: Xy Format
Set the horizontal scale and position Continuously set the vertical scale and CH2 VOLTS and VERTICAL POSITION controls position Reference or Math Unusable Cursors Unusable Autoset (display format reset to YT) Unusable Time base controls Unusable Trigger controls Unusable DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 21: Horizontal Controls
Next Mark interested in, and searches for these marks by right and left arrows. Then it positions the window to this mark for further observation. Set/Clear Set or Clear the current Mark. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 22 When the major window is selected, the F1 button provides the same functions as it provides in single-mode window. When the minor window is selected, press TIME/DIV button to scale the waveform whose magnification is up to 1000. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 23: Scan Mode Display (Roll Mode)
Reduce 100X bandwidth to 6MHz when using a 1X probe. 1000X Invert Inverts the waveform relative to the reference level. Set the channel vertical postion to the middle of the Reset vertical screen, DSO8000E Series HandHeld Oscilloscope User Manual... - Page 24 Hanning, Flattop, Rectangular, Bartletta and Blackman Source Use the FFT Zoom button to adjust the window FFT zoom size. Scale: x1, x2, x5, x10. dBrms Vertical Base Vrms Note: All selected menus are highlighted in orange. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 25: Math Fft
If you Click the TIME/DIV key to select a faster setting (fewer cycles), the FFT spectrum will display a larger frequency range and reduce the possibility of FFT aliasing. To set the FFT display, follow the steps below. 1. Push the M/R button; DSO8000E Series HandHeld Oscilloscope User Manual... - Page 26 Change the horizontal magnification of the FFT FFT Zoom X1, X2, X5, X10 display. For detailed information, refer to Section 5.3.1.6. dBrms, Set dBrms to be the vertical base; Vertical Base Vrms Set Vrms to be the vertical base DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 27 If the number of cycles is nonintegral, the YT waveform starts and ends at different amplitudes and transitions between the start and end points will cause discontinuities in the signal that introduces high-frequency transients. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 28 Better frequency, poorer amplitude accuracy than Hanning Periodic Waveform Flattop Better amplitude, poorer frequency accuracy than Flattop Periodic Waveform Hanning Special-purpose window applicable to Rectangular Pulse or Transient Waveform discontinuous waveforms. This is actually the same as no windows. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 29 You magnifies the FFT spectrum to the center graticule line when you change the zoom factor. That is, the axis for horizontal magnification is the center graticule line. Click the Horizontal Position Key to move the FFT spectrum to the right. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 30: Trigger Controls
Pulse Width, Alter, Slope and Overtime. Refer to the following tables to find a different set of options for each type of trigger. TRIG MENU Push this button to display trigger menus. The edge trigger is in common use. See the table below for details. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 31 Set the vertical trigger postion to the channel zero level postion. NOTE: Trigger coupling only affects the signal passed through the trigger system. It does not affect the bandwidth or coupling of the signal displayed on the screen. Video Trigger DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 32 > Pulse Width 20ns to 10.0sec With Set Pulse Width highlighted, set the pulse width. Trigger When: The pulse width of the source must be ≥5ns so that the oscilloscope can detect the pulse. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 33 Adjust the vertical window by setting two trigger levels. Vertical Select this option and press F3 to choose V1 or V2. ≠ When Select the trigger condition. < > Time 20ns to 10.0sec With this option highlighted, set the time span. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 34 Select the trigger condition. < > Set PW Pulse Width Set the pulse width. Selects the components of the trigger signal applied to the Coupling Noise Reject trigger circuitry. HF Reject LF Reject Type O.T. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 35 During the holdoff time, the oscilloscope will not trigger. For a pulse train, the holdoff time can be adjusted to let the oscilloscope trigger only on the first pulse in the train. Acquisition Interval Acquisition Interval Trigger Level Indicates Trigger Points Holdoff Holdoff DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 36: Menu And Option Buttons
Save Complete the saving operation. Recall the oscilloscope settings stored in the location selected in Recall the Setup field. Push the Default Setup button to initialize the oscilloscope to a known setup. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 37: Measure
Measure the time between 90% and 10% of the first falling Falling edge of the waveform. Measure the time between the first rising edge and the next + Width falling edge at the waveform 50% level. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 38 The time between the first falling edge of source 1 and the first rising edge of source 2. The time between the first rising edge of source 1 and the first falling edge of source 2. Do not take any measurement. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 39: Utility
Record Record and play back. Filter Set Filter function. Display Refer to 5.5.6 Acquire Refer to 5.5.3 Tun on/off DMM fuction. Frequency Turn on/off frequency counter More.. Sys Status,System Features, Flash and Waveform Color. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 40: Display
Grid Intensity 0-15 16 ranks adjustable. Auto 50 Frames Refresh Rate 40 Frames 30 Frames Wave Bright 0-15 16 ranks adjustable. BL Keep 5s,10,30s,60s,Unlimited Menu Keep 5s,10,30s,60s,Unlimited DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 41: Acquire
(4, 16, 64 or 128) to average for the waveform. Stopping the Acquisition: When you are running the acquisition, the waveform display is live. Stop the acquisition (press the RUN/STOP button) to freeze the display. In either mode, the DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 42: Cursor
Display the measurement in the box under this option. (delta) between the cursors. Moving Cursors: Press the key F3 to select a cursor and move it with the Arrow key. Cursors can be moved only when the Cursor Menu is displayed. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 43: Fast Action Buttons
Display Format Set to YT Display Type Set to Vectors for an FFT spectrum; otherwise, unchanged Horizontal Position Adjusted TIME/DIV Adjusted Trigger Coupling Adjusted to DC, Noise Reject or HF Reject Trigger Holdoff Minimum DSO8000E Series HandHeld Oscilloscope User Manual... - Page 44 Set the horizontal scale to display about one cycle of the Single-cycle waveform. The oscilloscope displays Min, Mean and Positive Width automatic measurements. Rising Display the rising edge. Falling Display the falling edge. Cancel Let the oscilloscope recall the previous setup. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 45: Signal Connectors
The probe compensation ground and BNC shields connect to earth ground and are considered to be ground terminals. To avoid damages, do not connect a voltage source to any of these ground terminals. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 46: Chapter 6 Application Examples
Set the switch on the oscilloscope probe to 10X; Push the CH1 MENU button and set the Probe option attenuation to 10X; Connect the CH1 probe to the test point of the circuit; Press the AUTO button. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 47 Repeat Step 2 and Step 3. Then select other measure items. Totally 4 measure items can be displayed. Note: All readouts change with the measured signals. The figure below shows three measure items as an example. The boxes under them display the measurements in large fonts. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 48: Example 2: Taking Cursor Measurements
Put Cursor S on the highest peak of the ring. 10. Put Cursor E on the lowest point of the ring. The amplitude of the ring will be displayed at Delta. See figures below for better understanding. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 49 Place Cursor S on the rising edge of the pulse and Cursor E on the falling edge. Thus at Delta displays the measured time and at Cursor S and Cursor E displays the time relative to the trigger. See the figure below for better understanding. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 50 Select Cursor E and place it at the 90% level of the waveform. 10. The Delta readout in the Cursor Menu is the rise time of the pulse. See the figure below for better understanding. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 51: Example 3: Analyzing Input Signals To Eliminate Random Noise
Push the Type option button and select Real Time. Push the Peak Detect option button. If necessary, enter the DISPLAY menu and set the Contrast option to view the noise more clearly. See the figure below for better understanding. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 52: Example 4: Capturing Single-Shot Signal
Note: Averaging reduces random noise and let you view the signal details more easily. See the figure below for better understanding 6.4 Example 4: Capturing Single-shot Signal You may refer to the following example to easily capture some aperiodic signals like pulses and glitches. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 53: Example 5: Using X-Y Mode
Push the CH1 MENU button and set the Probe option attenuation to 10X; push the CH2 MENU button and set the Probe option attenuation to 10X. Connect the CH1 probe to the input of the network, and connect the CH2 probe to the output. Push the AUTO button. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 54: Example 6: Triggering On Pulse Width
Or even if the edge triggering shows that your signal has the same pulse width with the specific signal, you still doubt about the result. Then you can follow the steps below. Set the Probe option attenuation to 10X. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 55: Example 7: Triggering On Video Signal
NTSC system. You can get a stable display by using the video trigger. Triggering on Video Fields To trigger on the video fields, follow the steps below. Push the TRIG MENU button to see the Trigger menu. Push F1 to select Video for the Type option. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 56 Adjust the line number (NTSC: 0-525 lines). Click the horizontal TIME/DIV and the vertical VOLTS keys to display on the screen a complete video signal triggering on a video line. See the figure below. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 57: Example 8: Using Slope Trigger To Capture Particular Slope Signal
Click the ‘Next Page’ button and select Vertical. Adjust V1 and V2 to proper locations. Select the When option button and set it to ‘=’. Select ‘Time’ and adjust the time until you get a stable display of waveforms. See the figure below. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 58: Example 9: Using Overtime Trigger To Measure Long Pulse Signal
Adjust the line number (NTSC: 0-525 lines). Clck the horizontal TIME/DIV and the vertical VOLTS keys to display on the screen a complete video signal triggering on a video line. See the figure below. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 59: Example 10: Using Math Functions To Analyze Waveforms
Note: You should compensate both probes before performing the math operation; otherwise, differences in probe compensation will appear as errors in the differential signal. As illustrated in the above figure, input a 1KHz sine wave from CH1 and a 1KHz square wave DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 60: Example 11: Measuring Data Propagation Delay
Push the Type option button and select Time. Select Cursor S and place it on the active edge of the enable signal. Select Cursor E and place it on the data output transition (See the figure below). DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 61: Example 12: Back Light Control
3. After reaching the page four, then press F3 to enter the Display menu. 4. Press F5 button to page 3 of display menu, press F3. 5. Set backlight time using the direction button. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 62: Example 13: Auto Shut Down
2. Select Device IP or Device Port you want to set and press ENTER key. Then push up the Input panel dialog. 3. Modify the parameter by the soft keyboard. 4. If user observe signal on software, please set connect type “LAN” simultaneously. Click DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 63: Example 15: Charging
Utility->System->Pc Set->Mode->USB. If user observe signal on software, please set connect type “USB” simultaneously. Click in toolbar. 6.15 Example 15: Charging Your battery has been partially charged at the factory, but you may need to recharge it before you DSO8000E Series HandHeld Oscilloscope User Manual... - Page 64 Note: The oscilloscope can be charged whatever it is on or off. It needs 5 hours for charging the battery when the oscilloscope is off. It needs about 12 hours for charging the battery when the oscilloscope is on.The length of the charging time depends on the different battery. Battery Type: 7.4V DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 65: Chapter 7 Multimeter
Multimeter Chapter 7 Multimeter About this chapter This chapter provides an introduction to the multimeter functions of DSO8000E Series. The introduction gives guides to show how to use the menus and perform basic measurements. Connecting the Meter Use the 4-mm safety banana jack inputs for the Meter functions: 10A , mA, COM,V/Ω/C. - Page 66 3) Connect the red and black leads to the diode and the voltage value of the diode is displayed on the screen in volt. Then, the screen will look like the following figure 7-3. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 67 3) Connect the red and black leads to the tested points. If the resistance value of the tested points is less than 30 Ω, you will hear beep sound from the test tool. Then, the screen will look like the following figure 7-4. Figure 7-4 On-off Measurement DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 68 2. Insert the black lead into the COM banana jack input and the red lead into the V/O/C banana jack input. 3.Connect the red and black leads to the measured points and the voltage value of measured points is displayed on the screen. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 69 4) Connect the red and black leads to the measured points and the AC voltage value of measured points will be displayed on the screen. Then, the screen will look like the following figure 7-7. Figure 7-7 AC voltage Measurement DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 70 4) Connect the red and black leads to the measured points and the DC current value of the measured points will be displayed on the screen. 5) Press F2 to return to 600 mA measurement. Then, the screen will look like the following figure 7-9. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 71 4) Connect the red and black leads to the measured points and the AC current value of measured points will be displayed on the screen. Then, the screen will look like the following figure 7-10. Figure 7-10 AC Current Measurement for 600 mA DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 72 4) When the reading leveling off, press F2 key and then ||/△is displayed on the top of the screen. The saved reference value is displayed beside. Then, the screen will look like the following figure 7-12. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 73 3) Press F3 key to switch back to the automatic range mode and then Auto is displayed on the top of the screen. Attention: capacitance measurement without manual range mode. Then,the screen will look like the following figure 7-13. Figure 7-13 The Manual Range Mode DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 74: Chapter 8 Recorder
Recorder Chapter 8 Recorder About this Chapter This chapter provides a step-by-step introduction to the recorder functions of DSO8000E series Handheld Digital Oscilloscope. The introduction gives basic examples to show how to use the menus and perform basic operations. The recorder mainly includes the following functions: Trend Plot: Trend plot is to save the measurements in the memory and then plot a graph of Scope or Meter measurements as a function of time. -
Page 75: Multimeter Trend
6. The parameter measurement value of the cursor point 7. Vertical scale 8. Vertical scale Multimeter Trend Function Menu Function Setting Instruction Restart Quilt the current data and start to record afresh. 10Sa…0.005Sa Sa Rate Set sampling rate DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 76: Oscilloscope Trend
Scope Trend Function Menu Option Setting Instruction Restart Quilt the current data and start to record afresh. Source Select the source CH1, CH2 Param Choose the Mean, Pk-Pk, Frequency, Period, Minimum, Maximum parameter to be DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 77: Waveform Recorder
8. Data analysis: move cursor, analyzing data over time. 9. Press Return to exit trend plot. 8.3 Waveform Recorder Press 【Recorder】to enter recorder main menu under scan time base, then press 【F2】 choose ScopeRec. Waveform Recorder Function Menu DSO8000E Series HandHeld Oscilloscope User Manual... - Page 78 Pause playing waveform automatically, you can change the time base to observe the waveform in the memory. Pause Continue playing waveform automatically, you can change the time base to observe the waveform in the memory. Restart Replay the waveform Mode Continuous: DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 79 You can pause or stop at any time. Waveform replay 5. Press 【F2】to replay waveform. You can replay the recorded waveform for several times and you can Prev or Next at any time. 6. Press 【F5】to exit the waveform recorder. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 80: Chapter 9 Waveform Generator
Waveform Generator Chapter 9 Waveform Generator DSO8000E Series oscilloscope is equipped with waveform generator function, with one channel of arbitrary waveform output, 8 Bits output, synchronized signal out puts. User can edit the waveform by the mouse or choose the regular waveforms such as Sine, Ramp, Square, Trapezia, DC, Exponent, AM/FM. - Page 81 Set the output wave phase. Time: Set the ouput wave Tao param. Exp Type: Set the output wave slope. Sync Out: Turn on or turn off synchronous output. OutPut: Select waveform output type, Continuous, single or trun off. DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 82: Edit Arb Waveform
After DDS_ARB software installed successfully, you can see DDS_ARB icon on desktop. Double-click the icon, user can select "Wave Parameter - > Arb" to edit arbitrary waveform. You can download DDS_ARB software from website. http://www.hantek.com/en/ProductDetail_1_159.html DSO8000E Series HandHeld Oscilloscope User Manual... - Page 83 Waveform Generator 3. Click “Wave Parameter->Parameter” to sewaveform frequency. 4. Click “Edit->Points Edit” to set pointindex and voltage. Also user can drag left mouse to edit points. DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 84 Waveform Generator 5. Click “Wave Parameter ->Download”, use a scope to test the signal output terminal, observe the output waveform figure as follows: DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 85: Chapter 10 Troubleshooting
3） Check the trigger mode to confirm it is a right choice for the input signal. The default trigger mode is edge trigger. However, it is not suitable for all kinds of input signals. DSO8000E Series HandHeld Oscilloscope User Manual... -
Page 86: Chapter 11 Specifications
Specifications Chapter 11 Specifications 11.1 Technical Specifications All specifications herein mentioned apply to the DSO8000E series oscilloscopes. Before checking an oscilloscope to see if it complies with these specifications, make sure it meets the following conditions: ➢ The oscilloscope must have been operating continuously for twenty minutes under the specified operating temperature. - Page 87 Note: Bandwidth reduced to 6MHz when using a 1X probe. Trigger Coupling Sensitivity DSO8072E DSO8152E Source DSO8102E DSO8202E Trigger Sensitivity 1.5div from 10MHz 1div from DC to (Edge Trigger Type) 10MHz; to 100MHz; 1.5div from 10MHz to 2div from 100MHz Full to Full DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 88 Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Pulse Width Range Selectable from 20ns to 10s DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 89 Single Sequence Acquisition Mode Acquisition Stop Time Upon single acquisition on all channels Normal, Peak Detect simultaneously After acquisitions channels Average simultaneously, N can be set to 4, 8, 16, 32, 64 or 128 DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 90 Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃) +104℉ or below (+40℃ or below): ≤90% relative humidity Humidity 106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity Altitude 3,000m (10,000 feet) Mechanical Size 260 x 220 x 75(mm) DSO8000E Series HandHeld Oscilloscope User Manual...
- Page 91 60.00V 10mV 600.0V 100mV DC Current 60.00mA ± 1%± 5digit 10uA 600.0mA 100uA ± 1.5%± 5digit 6.000A 10.00A 10mA AC Current 60.00mA ± 1%± 5digit 10uA 600.0mA 100uA ± 1.5%± 5digit 6.000A 10.00A 10mA DSO8000E Series HandHeld Oscilloscope User Manual...
-
Page 92: Accessories
Attention: The smallest capacitance value that can be measured is 5nF. Diode 0V~2.0V On-off Test < 10Ω 11.2 Accessories All the following accessories are available by contacting your local HANTEK distributor. Standard Accessories ◆ Two passive probes ◆ A Power Adapter ◆ A USB cable ◆ Two Multimeter Probes ◆... -
Page 93: Chapter 12 General Care And Cleaning
2） Use a soft cloth dampened with water to clean the oscilloscope. For more efficient cleaning, you may use an aqueous solution of 75% isopropyl alcohol. Note: To avoid damage to the surface of the oscilloscope or probes, do not use any corrosive or chemical cleaning agents. DSO8000E Series HandHeld Oscilloscope User Manual... - Page 94 Service and Support Chapter 13 Services and Support Thank you for choosing HANTEK. Please contact us through the following ways should you have any inquiry regarding our products. We shall do our best to help you. 1． Contact your local HANTEK distributor;...
- Page 95 ‘0’ indicates that the content of this poisonous and harmful substance in all homogeneous materials of this component is refrained under the limit stated in the SJ/T 11363-2006 standard. This component list contains components approved in the file ‘Management Measures’. DSO8000E Series HandHeld Oscilloscope User Manual...
