Summary of Contents for Hantek DSO1000S Series

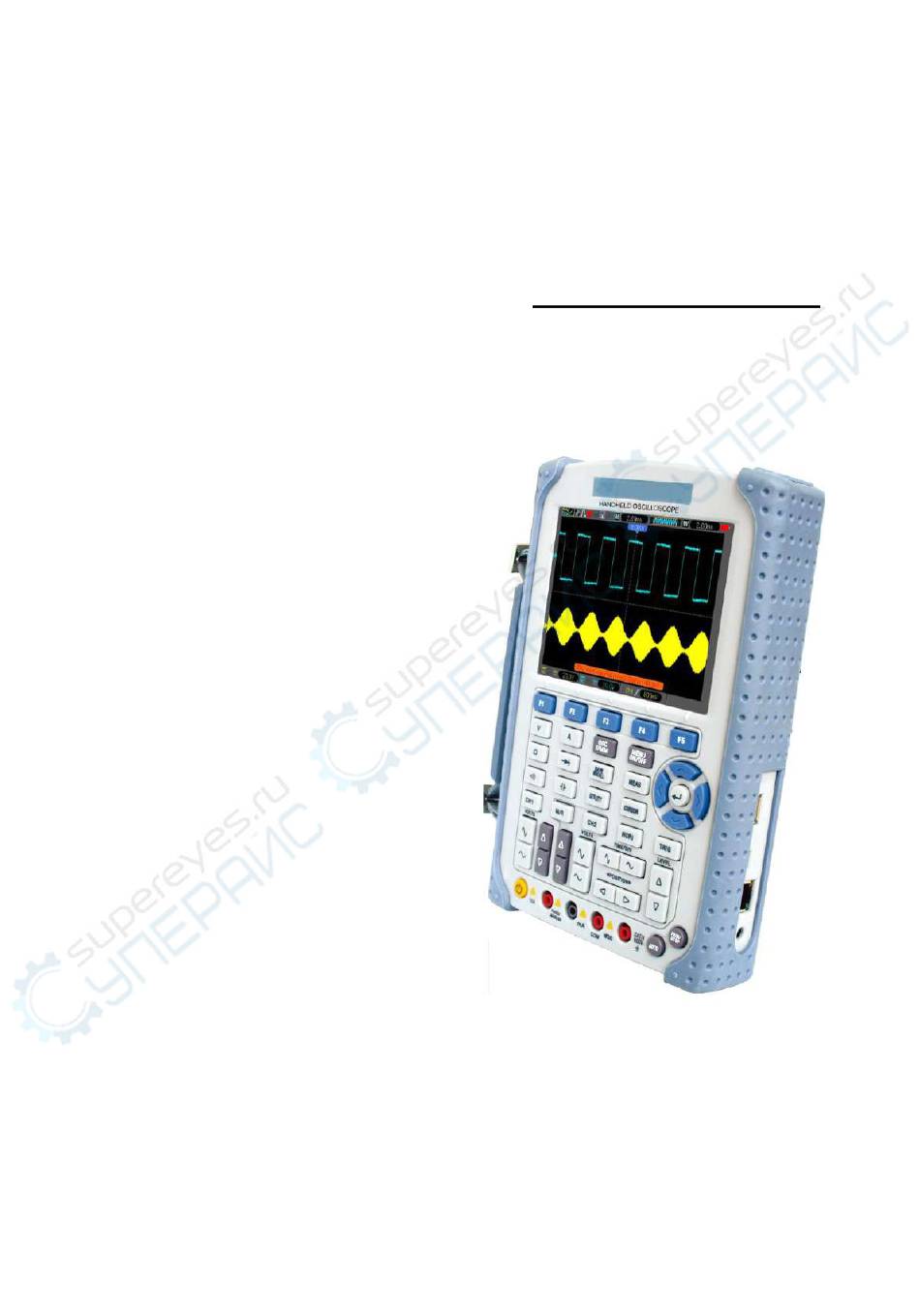

- Page 1 DSO1000S SERIES HANDHELD OSCILLOSCOPE USER’S MANUAL 1062S/1122S/1202S （V 2.01.1）...
-
Page 2: Table Of Contents
CHAPTER 5 BASIC OPERATION ......................13 ............................15 ISPLAY 5.1.1 XY Format ..........................17 ........................18 ORIZONTAL ONTROLS 5.2.1 Scan Mode Display (Roll Mode) ....................20 ........................... 20 ERTICAL ONTROLS 5.3.1 Math FFT ..........................22 DSO1000S Series HandHeld Oscilloscope User Manual... - Page 3 ......................... 60 XAMPLE UTO SHUT DOWN CHAPTER 7 MULTIMETER ........................61 CHAPTER 8 TROUBLESHOOTING ...................... 71 ........................71 ROBLEM ETTLEMENT CHAPTER 9 SPECIFICATIONS ......................72 ........................72 ECHNICAL PECIFICATIONS 9.2 A ............................78 CCESSORIES DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 4 Contents CHAPTER 10 GENERAL CARE AND CLEANING ................79 10.1 ........................... 79 ENERAL 10.2 ............................79 LEANING CHAPTER 11 SERVICES AND SUPPORT ..................... 80 APPENDIX A HARMFUL AND POISONOUS SUBSTANCES OR ELEMENTS........81 DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 5: Copyright Declaration
Hantek reserves all rights to modify this document without prior notice. Please contact Hantek for the latest version of this document before placing an order. Hantek has made every effort to ensure the accuracy of this document but does not guarantee the absence of errors. Moreover, Hantek assumes no responsibility in obtaining permission and authorization of any third party patent, copyright or product involved in relation to the use of this document. -
Page 6: Chapter 1 Safety Tips
The following terms may appear in this manual: WARNING. Warning statements point out conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 7: Terms On Product
To avoid them being released outside and to minimize the waste of natural resources, we suggest you reasonably call back this device to ensure proper recovery and recycling of most materials within it. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 8: Chapter 2 Overview
What’s more, available in 2 channels versions, the DSO1000S Series with isolated channels technology provides isolation from ground and isolation between channels allowing you to take measurement with less worry about damaging circuitry. -
Page 9: Help System
General information about understanding and using the oscilloscope, such as Using the Menu System. Information about specific menus and controls, such as the Vertical Position Control. Advice to problems you may come across while using an oscilloscope, such as Reducing Noise. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 10: Chapter 3 Getting Started Guide
PROBE COMP connectors. The Probe COMP: ~2V@1KHz. CH1: to connect with the PROBE COMP probe DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 11: Observe The Waveform
Do not touch metallic portions of the probe head while it is connected to a voltage source. Connect the probe to the oscilloscope and connect the ground terminal to ground before you start any measurements. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 12: Use Of Probe Check Wizard
3. If necessary, use a nonmetallic screwdriver to adjust the variable capacity of your probe until the shape of the waveform turns to be the same as the above figure. Repeat this step as necessary. See the figure below for the way of adjustment. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 13: Probe Attenuation Setting
20 minutes until it has adequately warmed up. To compensate the signal path, disconnect any probes or cables from the front-panel input connectors. Then, push the UTILITY button, select the Do Self Cal option and follow the directions on the screen. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 14: Chapter 4 Main Feature Description
Slope Trigger uses the rise and fall times on the edge of signal for triggering. Overtime Trigger happens after the edge of signal reaches the set time. Swap Trigger, as a feature of analog oscilloscopes, gives stable displays of signals at DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 15: Data Acquisition
In such cases, you should use the Peak Detect mode to acquire data. Peak Detect: In this acquisition mode, the oscilloscope gets the maximum and minimum values of DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 16: Waveform Scaling And Positioning
The oscilloscope shows the horizontal scale as time per division in the scale readout. Since all active waveforms use the same time base, the oscilloscope only displays one value for all the active channels. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 17: Waveform Measurement
As this measurement uses the waveform record points, it is more precise than the graticule and cursor measurements. Automatic measurements show the measurement results by readouts which are periodically updated with the new data acquired by the oscilloscope. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 18: Chapter 5 Basic Operation
The figure below illustrates the front panel of the DSO1000S series digital oscilloscope. DSO1000S Front Panel of Series DSO1000S Series HandHeld Oscilloscope User Manual... - Page 19 11. CH2: Shows the CH2 menu 12. VOLTS: Decrease or Increase the voltage/div 13. CH1: Shows the CH1 menu 14. M/R: Shows the Math or REF menu 15. DMM Buttons: The DMM control buttons DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 20: Displayarea
: XY : Vectors : Dots : Gray indicates auto persistence; Green means persistence display is enabled. When the icon is set to green, the time for persistence display will be shown behind it. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 21 : If this icon lights up, it means the USB disk has been connected. : This icon lights up only when the USB slave interface is connected with the computer. 5. Readout shows main time base setting. 6. Main Time Base Window DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 22: Xy Format
CH1 VOLTS and VERTICAL POSITION controls Set the horizontal scale and position Continuously set the vertical scale and CH2 VOLTS and VERTICAL POSITION controls position Reference or Math Unusable Cursors Unusable Autoset (display format reset to YT) Unusable DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 23: Horizontal Controls
Then it positions the window to this mark for further observation. This function is usable only in dual-window mode. It Next Mark sets marks at some waveform record locations that DSO1000S Series HandHeld Oscilloscope User Manual... - Page 24 Single-window Mode Dual-window Mode (Full Screen) Location of expanded window data in memory Major Window Minor Window (Expanded Window) 3.TIME/DIV: Used to change the horizontal time scale so as to magnify or compress the waveform DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 25: Scan Mode Display (Roll Mode)
Coarse settings. Selects a value according to the probe attenuation factor Probe so as to ensure correct vertical readouts. Reduce 100X bandwidth to 6MHz when using a 1X probe. 1000X DSO1000S Series HandHeld Oscilloscope User Manual... - Page 26 Flattop, Rectangular,Bartletta Window Blackman Source Use the FFT Zoom button to adjust the window FFT zoom size. Scale: x1, x2, x5, x10. dBrms Vertical Base Vrms Note: All selected menus are highlighted in orange. DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 27: Math Fft
If you Click the TIME/DIV key to select a faster setting (fewer cycles), the FFT spectrum will display a larger frequency range and reduce the possibility of FFT aliasing. To set the FFT display, follow the steps below. 1. Push the M/R button; DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 28: Displaying Fft Spectrum
Select a type of the FFT window. For more Window Rectangular information, refer to Section 5.3.1.3. Change the horizontal magnification of the FFT FFT Zoom X1, X2, X5, X10 display. For detailed information, refer to Section 5.3.1.6. Vertical Base Vrms dBrms DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 29: Selecting Fft Window
If the number of cycles is nonintegral, the YT waveform starts and ends at different amplitudes and transitions between the start and end points will cause discontinuities in the signal that introduces high-frequency transients. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 30 Better frequency, poorer amplitude accuracy than Hanning Periodic Waveform Flattop Better amplitude, poorer frequency accuracy than Flattop Periodic Waveform Hanning Special-purpose window applicable to Rectangular Pulse or Transient Waveform discontinuous waveforms. This is actually the DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 31: Fft Aliasing
You magnifies the FFT spectrum to the center graticule line when you change the zoom factor. That is, the axis for horizontal magnification is the center graticule line. Click the Horizontal Position Key to move the FFT spectrum to the right. Vertical Zoom and Position DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 32: Using Cursors To Measure Fft Spectrum
Pulse Width, Swap, Slope and Overtime. Refer to the following tables to find a different set of options for each type of trigger. TRIG MENU Push this button to display trigger menus. The edge trigger is in common use. See the table below for details. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 33 Choose a video standard for sync and line number Standard PAL/SECAM count. Note: When you choose Normal Polarity, the trigger always occurs on negative-going sync pulses. If the video signal contains positive-going sync pulses, use the Inverted Polarity DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 34 ＝, ≠: Within a ±5% tolerance, triggers the oscilloscope when the signal pulse width is equal to or not equal to the specified pulse width. ＜, ＞: Triggers the oscilloscope when the source signal pulse width is less than or greater than the specified pulse width. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 35 That is both channels can choose the following four trigger modes. Type Edge Rising Slope Falling select the components of the trigger signal applied to the Coupling Noise Reject trigger circuitry. HF Reject LF Reject DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 36 This is called Overtime Trigger. Options Settings Comments Type O.T. Source Select the trigger source. Positive Polarity Select to trigger on positive or negative pulses. Negative Auto Mode Normal Overtime DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 37: Menu And Option Buttons
DISPLAY: Displays the Display menu. 5.5.1 SAVE/RECALL Press the SAVE/RECALL button to save or recall oscilloscope setups or waveforms. Options Settings Comments Wave Enter the Save Wave menu. Setup Enter the S/R Setup menu. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 38 Select a waveform channel to store. Open File List Open or Close File List. Close Save Save the source waveform to the selected location. Recall Display the reference waveform on the screen Delete Delete waveform. DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 39: Measure
The Root Mean Square voltage over the first cycle in the CRMS waveform Frequency Calculate the waveform frequency by measuring the first cycle. Period Calculate the time of the first cycle. Do not take any measurement. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 40: Acquire
Select the number of averages. (Real Time) LongMem 4K, 40K, 512K, 1M Select the memory depth for different board models. (Real Time) Normal: For the oscilloscope model with the bandwidth of 100MHz, the maximum sample rate is DSO1000S Series HandHeld Oscilloscope User Manual... - Page 41 The acquisition principle is as follows. Input repeated signals First Acquisition Second Acquisition Third Acquisition Fourth Acquisition As shown above, acquire input signals (cycle repeatable) for more than once at a slow sample rate, DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 42: Utility
Select a measurement cursor and display it. Type Voltage Voltage measures amplitude while Time measures time and Time frequency. Select a waveform to take the cursor measurement. Source MATH Use the readouts to show the measurement. REFA DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 43: Display
(horizontal scale); XY format displays a dot DSO Mode between CH1 and CH2 each time when a sample is acquired, where the voltage or current of CH1 determines the X coordinate of the dot (horizontal) DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 44: Fast Action Buttons
Adjusted to DC, Noise Reject or HF Reject Trigger Holdoff Minimum Trigger Level Set to 50% Trigger Mode Auto Trigger Source Adjusted Trigger Slope Adjusted Trigger Type Edge Trigger Video Sync Adjusted Trigger Video Standard Adjusted Vertical Bandwidth Full DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 45: Signal Connectors
See the figure below to find the two signals connectors and a pair of metal electrodes at the bottom of the oscilloscope panel. 1. CH1, CH2: Input connectors for waveform display, through which to connect and input the DSO1000S Series HandHeld Oscilloscope User Manual... - Page 46 The probe compensation ground and BNC shields connect to earth ground and are considered to be ground terminals. To avoid damages, do not connect a voltage source to any of these ground terminals. DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 47: Chapter 6 Application Examples
Press the AUTO button. The oscilloscope will automatically set the waveform to a best display. If you want to further optimize the waveform display, you may manually adjust the vertical and horizontal controls until DSO1000S Series HandHeld Oscilloscope User Manual... - Page 48 Repeat Step 2 and Step 3. Then select other measure items. Totally 4 measure items can be displayed. Note: All readouts change with the measured signals. The figure below shows three measure items as an example. The boxes under them display the measurements in large fonts. DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 49: Example 2: Taking Cursor Measurements
Put Cursor S on the highest peak of the ring. 10. Put Cursor E on the lowest point of the ring. The amplitude of the ring will be displayed at Delta. See figures below for better understanding. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 50 Thus at Delta displays the measured time and at Cursor S and Cursor E displays the time relative to the trigger. See the figure below for better understanding. Measuring Rise Time of Pulse You may need to measure the rise time of the pulse in many application environments, usually, to DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 51: Example 3: Analyzing Input Signals To Eliminate Random Noise
6.3 Example 3: Analyzing Input Signals to Eliminate Random Noise In certain circumstances, to display a noisy signal on the oscilloscope and to get its details, you may follow the steps below to analyze this signal. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 52 Eliminating Random Noise Enter the Acquire menu. Push the Type option button and select Real Time. Push the Average option button. Push the Averages option button and adjust the number of running averages to watch the DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 53: Example 4: Capturing Single-Shot Signal
Push the TRIG MENU button and select Rising for the Slope option. Then adjust the trigger level properly. Select Single mode to start the acquisition. Using this feature can help you to capture occasional events more easily. This is an advantage of the HandHeld oscilloscope. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 54: Example 5: Using X-Y Mode
θ=±arcsin(A/B) or ±arcsin(C/D). If the principal axes of the ellipse are in the first and third quadrants, the phase difference angle DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 55: Example 6: Triggering On Pulse Width
Push the More option button and select Normal for the Mode option. Once triggering on normal pulses, the oscilloscope can give a stable waveform display. 10. When option is set to >, < or ≠ and there appear any aberrant pulses that meet the specified DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 56: Example 7: Triggering On Video Signal
Push the horizontal TIME/DIV and the Vertical Position keys to display on the screen a complete video signal triggering on a video field. The figure below shows a stable signal triggering on a video field. DSO1000S Series HandHeld Oscilloscope User Manual... - Page 57 Adjust the line number (NTSC: 0-525 lines). Click the horizontal TIME/DIV and the vertical VOLTS keys to display on the screen a complete video signal triggering on a video line. See the figure below. DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 58: Example 8: Using Slope Trigger To Capture Particular Slope Signal
Push the TRIG MENU button to see the Trigger menu. Select O.T. for the Type option; push the Polarity option button to select Normal; push the Mode option button to select Auto; push the Coupling option button to select DC. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 59: Example 10: Using Math Functions To Analyze Waveforms
Click the horizontal TIME/DIV and the vertical VOLTS keys to properly scale the waveform for easy check. In addition, the oscilloscope also supports the - and FFT functions. For a detailed analysis on FFT, DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 60: Example 11: Measuring Data Propagation Delay
6.11 Example 11: Measuring Data Propagation Delay When you doubt that there appear instabilities in a serial data propagation control circuit, you can set the oscilloscope to measure the propagation delay between the enable signal and the transfer DSO1000S Series HandHeld Oscilloscope User Manual... - Page 61 Select Cursor S and place it on the active edge of the enable signal. Select Cursor E and place it on the data output transition (See the figure below). 10. Read the data propagation delay in the Delta readout. DATA DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 62: Example 12: Play Video
2． When the HandHold Oscilloscope recognizes the U disk press the key UTILITY and enter the page 2/5 and the press the key F4 to open U disk.After that the user can see the U disk and oscilloscope inner storage card files. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 63: Example 13: Setting Net Ip
4．Press the Enter key of the multi-function keys and F1 to display. 6.13 Example 13: Setting Net IP To set net IP, follow the steps below. 1. Select the menu Utility->System->Pc Set->Mode->NET.Then there pushes up the NetCfg dialog. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 64: Example 14: Charging
Note: The oscilloscope can be charged whatever it is on or off. It needs 5 hours for charging the battery when the oscilloscope is off.It needs about 12 hours for charging the battery when the oscilloscope is on.The length of the charging time depends on the different battery. Battery Type: 7.4V DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 65: Example 15: Back Light Control
3. After reaching the page two, then press F3 to enter the Shutdown menu. 4. Press F1 button to select PowerOff, press F2 to select Time then set the time using the direction button. 5. Press F3 button to confirm. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 66: Chapter 7 Multimeter
Multimeter Chapter 7 Multimeter About this chapter This chapter provides an introduction to the multimeter functions of DSO1000S Series. The introduction gives guides to show how to use the menus and perform basic measurements. Connecting the Meter Use the 4-mm safety banana jack inputs for the Meter functions: 10A , mA, COM,V/Ω/C. - Page 67 3) Connect the red and black leads to the diode and the voltage value of the diode is displayed on the screen in volt. Then, the screen will look like the following figure 7-3. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 68 3) Connect the red and black leads to the tested points. If the resistance value of the tested points is less than 30 O, you will hear beep sound from the test tool. Then, the screen will look like the following figure 7-4. Figure 7-4 On-off Measurement Making a Capacitance Measurement DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 69 2. Insert the black lead into the COM banana jack input and the red lead into the V/O/C banana jack input. 3.Connect the red and black leads to the measured points and the voltage value of measured points is displayed on the screen. Then ,the screen will look like the following figure 7-6. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 70 4) Connect the red and black leads to the measured points and the AC voltage value of measured points will be displayed on the screen. Then, the screen will look like the following figure 7-7. Figure 7-7 AC voltage Measurement DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 71 4) Connect the red and black leads to the measured points and the DC current value of the measured points will be displayed on the screen. 5) Press F2 to return to 600 mA measurement. Then, the screen will look like the following figure 7-9. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 72 4) Connect the red and black leads to the measured points and the AC current value of measured points will be displayed on the screen. Then, the screen will look like the following figure 7-10. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 73 6) Press F2 to return to 600 mA measurement. Then, the screen will look like the following figure 7-11. Figure 7-11 AC Current Measurement for 10A DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 74 F4 key once again. 3) Press F3 key to switch back to the automatic range mode and then Auto is displayed on the top of the screen. DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 75 Multimeter Attention: capacitance measurement without manual range mode. Then,the screen will look like the following figure 7-13. Figure 7-13 The Manual Range Mode DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 76: Chapter 8 Troubleshooting
3） Check the trigger mode to confirm it is a right choice for the input signal. The default trigger mode is edge trigger. However, it is not suitable for all kinds of input signals. DSO1000S Series HandHeld Oscilloscope User Manual... -
Page 77: Chapter 9 Specifications
General Care and Cleaning Chapter 9 Specifications 9.1 Technical Specifications All specifications herein mentioned apply to the DSO1000S series oscilloscopes. Before checking an oscilloscope to see if it complies with these specifications, make sure it meets the following conditions: ... - Page 78 Note: Bandwidth reduced to 6MHz when using a 1X probe. Trigger Coupling Sensitivity DSO1062S Source DSO1202S Trigger Sensitivity DSO1122S (Edge Trigger Type) 1.5div from 10MHz 1div from DC to 10MHz; to 100MHz; 1.5div from 10MHz to 2div from 100MHz to DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 79 Trigger when < (Less than), > (Greater than), = (Equal), or ≠ (Not Equal); Slope Trigger Mode Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 80 Acquisition Stop Time Upon single acquisition on all Normal, Peak Detect channels simultaneously After N acquisitions on all channels Average simultaneously, N can be set to 4, 8, 16, 32, 64 or 128 Inputs DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 81 Operating: 32℉ to 122℉ (0℃ to 50℃) Temperature Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃) Cooling Method Convection +104℉ or below (+40℃ or below): ≤90% relative humidity Humidity 106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity DSO1000S Series HandHeld Oscilloscope User Manual...
- Page 82 ± 1%± 1digit 100uA 6.000A ± 1.5%± 3digit 10.00A 10mA AC Current 60.00mA ± 1.5%± 3digit 10uA 600.0mA ± 1%± 1digit 100uA 6.000A ± 1.5%± 3digit 10.00A 10mA 0.1Ω ± 1%± 1digit Resistance 600.0 6.000K 1Ω DSO1000S Series HandHeld Oscilloscope User Manual...
-
Page 83: Accessories
U_boot Version u-boot-1.1.6 Sourcecode download website www.hantek.com./download/handscope.zip 9.2 Accessories All the following accessories are available by contacting your local HANTEK distributor. Standard Accessories Sketch Description X1, X10 two passive probes. The passive probes have a 6MHz bandwidth (rated 100Vrms CAT III) when the switch is in the X1 position, and a maximum bandwidth (rated 300Vrms CAT II) when the switch is in the X10 position. -
Page 84: Chapter 10 General Care And Cleaning
PC and the oscilloscope. A software installation CD. It contains the user manual of DSO1000S, giving particular descriptions on the DSO1000S series oscilloscopes. Chapter 10 General Care and Cleaning 10.1 General Care Do not put or leave the device in a place where the LCD display will be exposed to direct sunlight for long periods of time. -
Page 85: Chapter 11 Services And Support
General Care and Cleaning Chapter 11 Services and Support Thank you for choosing HANTEK. Please contact us through the following ways should you have any inquiry regarding our products. We shall do our best to help you. 1． Contact your local HANTEK distributor;... -
Page 86: Appendix A Harmful And Poisonous Substances Or Elements
‘0’ indicates that the content of this poisonous and harmful substance in all homogeneous materials of this component is refrained under the limit stated in the SJ/T 11363-2006 standard. This component list contains components approved in the file ‘Management Measures’. DSO1000S Series HandHeld Oscilloscope User Manual...
