INSTRUCTIONS
GT500R/L INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
CAUTION: All wiring MUST comply with local electrical codes and should be installed by qualified electrician.Read entire Installation
Manual before proceeding. TURN OFF POWER BY REMOVING POWER FUSE OR TURNING OFF CIRCUIT BREAKER BEFORE
INSTALLATION. Total lighting load to Gotcha must not exceed: 500W incandescent @ 120V-277V, 500W LED @ 120V-277V with 0.8 pF
Driver. To switch more wattage, an electrician can install an additional relay. Line Carrier Remote Control Systems such as X-10, Leviton
or Radio Shack are incompatible with sensors and can cause false activations. Do not install on circuits feeding motor loads such
as kitchen appliances, HVAC equipment, washer/ dryer or garage door openers Sensor functions best when movement is across its
detection pattern, not towards the sensor. Mount 6'-12' high for optimum range and direction. To switch more wattage, an electrician
can install an additional relay.
MOUNTING
Gotcha floodlight kits come pre-wired and assembled on the
RAB CU4 EZ plate, allowing for mounting on round, rectangular or
octagonal surface or recessed box.
Surface Junction Box Installation:
Attach Cross Bar to Surface Junction Box using three bar
1.
screws (supplied).
Bring sensor wires through the Surface Adaptor Plate.
2.
3. Make connections to the supply wires in the junction box
according to the "Basic Kit Wiring" diagram on pg 2.
Push connected wires into the Surface Junction box.
4.
Place the O-Ring over the 1/4-20 Screw and insert into
5.
the center of the cover plate and tighten. Use Cap to cover
opening.
RECESSED JUNCTION BOX INSTALLATION
Discard the Surface Adaptor Plate when mounting to a
1.
Recessed Junction Box.
Attach Cross Bar to junction box using the screws supplied.
2.
3. Make connections to the supply wires in the junction box
according to the "Basic Kit Wiring" on pg 2.
4. Push connected wires into junction box.
Place the O-Ring over the 1/4-20 Screw and insert into
5.
the center of the cover plate and tighten. Use Cap to cover
opening.

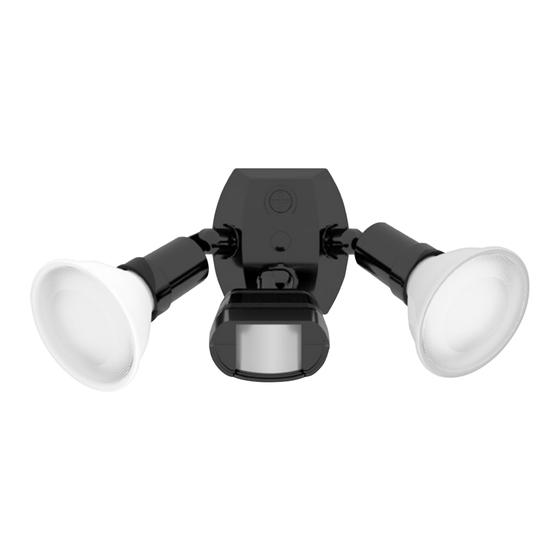

GT500R/L
Fig: 1
Wall
Fig: 2
Cross Bar
& screw
Surface Junction Box
Gasket
Cross Bar
& screw
Surface
Adaptor Plate
Wall
Recessed Junction Box
1/4-20 Screw with
O-Ring and Cap
1/4-20 Screw with
O-Ring and Cap
