Hytronik HBT01 Installation And Instruction Manual

Installation and Instruction Manual
Bluetooth Motion Sensor - Built-in Detachable Version
1. Technical Specifications
Transceiver Node (HBT01 / HBT02)
Sensor principle
Operation frequency
Transmission power
Detection range 1
Detection angle
Operation temperature
Case temperature (Max.)
Storage temperature
Relative humidity
IP rating
Operation frequency (Bluetooth)
Transmission power
2
Range (Typical )
Control Base HCD038)
Mains voltage
Stand-by power
Load rating
Warming-up
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Operation temperature
Case temperature (Max.)
IP rating
3. Wire Preparation
To make or release the wire from the terminal, use a screwdriver to push down the button.
4. HF Occupancy Detection Pattern
10%
1. The detection range is heavily influenced by antenna placement (angle of approch) and
different walking paces. It may be reduced to ( O x H) of 2 x 3m under certain
conditions (walking across).
/
2. Please refer to placement guidance provided later in this document .
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 8m x 3m /
30 º ~ 150º
Ta: -20°C ~ +70°C
Tc: +80°C
-35°C ~ +55°C
0 ~ 90%
IP20
2.4 GHz - 2.483 GHz
Max. 7 dBm
15~30m
220~240VAC 50/60Hz
<0.5W
30mA, 16VDC (max. 15 devices)
20s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489, EN62479, EN300328
-20°C ~ +55°C
Tc: +80°C
IP20
mm
0.5 - 1.5
8mm
30%
50%
75%
HCD038 + HBT01/HBT02
2. Dimensions and Terminals
Transceiver Node (HBT01 / HBT02)
Photocell Advance TM Daylight Sensor
Reset
The cable length is around 30cm.

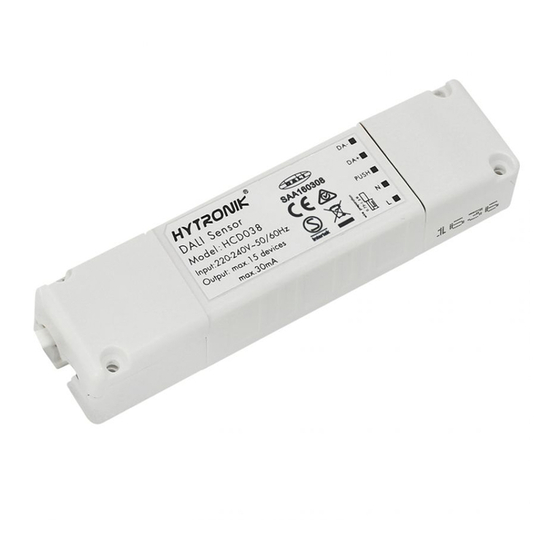

Control Base HCD038 (DALI output)
RJ12 connector
HCD038 + HBT01 / HBT02 - 20190301-A1
Sensor Antenna
Bluetooth Module
RJ12 Connector
DALI
Push
L N
120
110.5
