Front Panel - ProScan PSVR71 User Manual

Reference

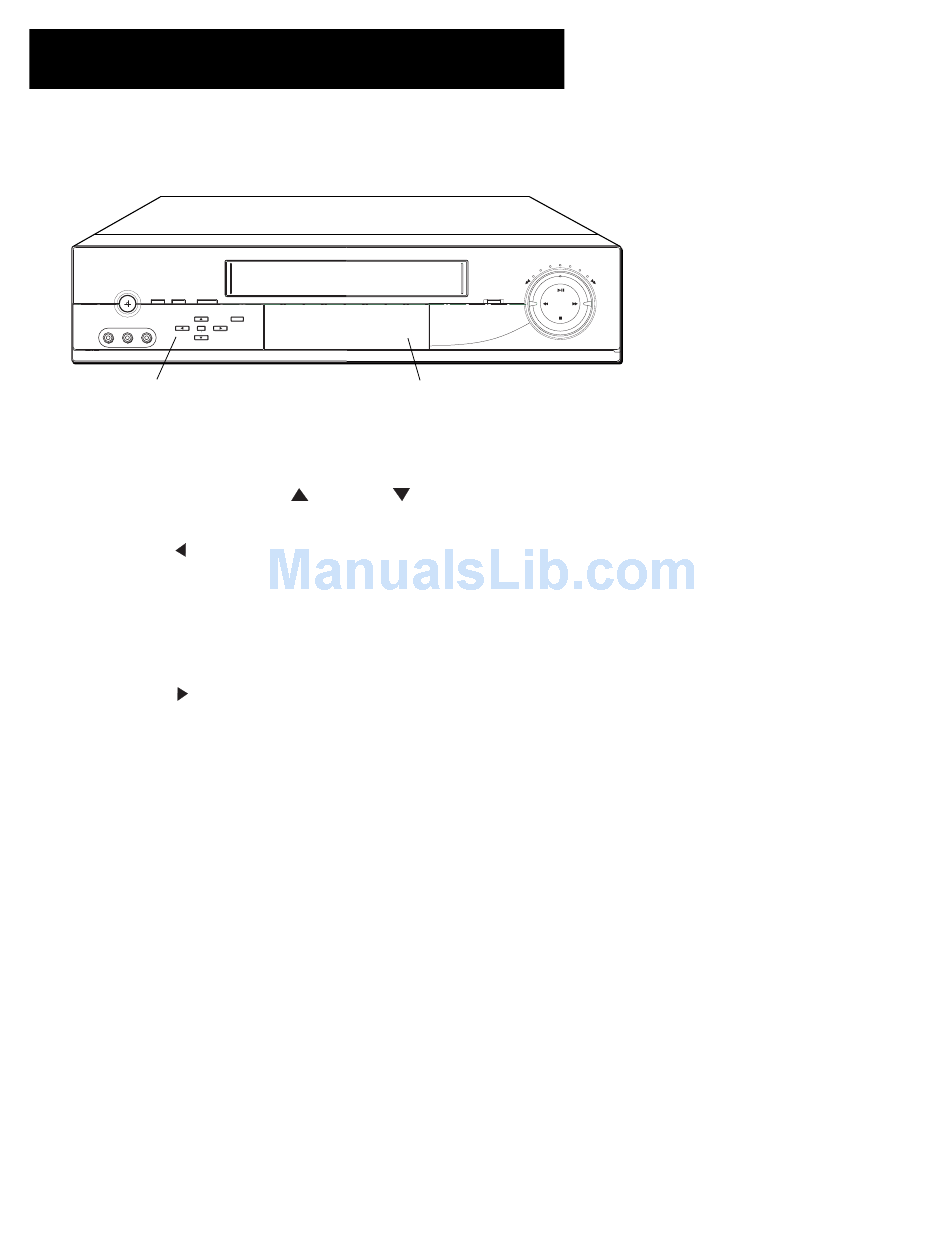

Front Panel

ON . OFF
TV . VCR
INPUT EJECT
CHANNEL
TRACKING
VIDEO L -AUDIO- R
CLEAR
MENU
MONO
CHANNEL
(Front Panel door open)
AUDIO (R and L MONO) and VIDEO In Jacks Receives signals from another component like a VCR or camcorder
when it is connected to these jacks. Use INPUT to select L2 to record from these jacks.
CHANNEL•TRACKING and Up
Adjusts tracking when a tape is playing. Used for program express and moving through menu system.
CLEAR and Left Resets time counter to 0:00:00. Allows you to change entries when setting the clock or programming
the timer. Used for program express and navigating through the menu system.
EJECT Ejects the tape.
FWD Forwards the tape when the VCR is stopped. Searches the picture forward during playback. Starts slow motion
during play-pause and increases slow-motion speed.
INFO and Right Displays information on the TV screen. Used for program express and navigating through the menu
system.
INPUT Selects between the line inputs and VCR's tuner. Line input refers to the signal coming from the component
connected to the audio/video input jacks on the back or front of the VCR.
MENU Displays and accesses VCR's menu system on the TV screen.
PLAY/PAUSE Plays a tape. Pauses action for viewing during playback. Pauses recording to prevent recording of
unwanted scenes.
PROG. EXP. Used for program express.
ON•OFF Turns the VCR on or off.
RECORD Starts VCR recording. Used for express recording.
Remote Sensor Receives signals from the remote control. Aim the remote at this sensor.
REV Rewinds the tape when the VCR is stopped. Searches the picture in reverse during playback. Starts slow motion
during play-pause and decreases slow-motion speed.
Shuttle Ring Turn clockwise to search forward or counterclockwise to search in reverse. Turn farther (over halfway)
clockwise to fast forward or farther counterclockwise to rewind.
STOP Stops the normal functions such as record, playback, rewind, fast-forward, or pause.
TV•VCR Switches the picture signal so that it either comes from the VCR or the TV cable/antenna signal.
66
PROG. EXP.
INFO
and Down
PLAY/PAUSE
RECORD
REV FWD
STOP
Remote Sensor
Selects next higher or lower channel in the VCR's channel memory.
