Connections
TV With RF Jack and Digital Satellite
Receiver
This connection assumes:
• You have a basic digital satellite system and your TV does not have
audio/video input jacks.
This connection provides:
• Mono sound playback from VCR, recording from a satellite
receiver, and recording one off-air or cable channel while
watching another.
To use this connection, you must have:
• (4) coaxial cables and (3) audio/video cables
To connect:

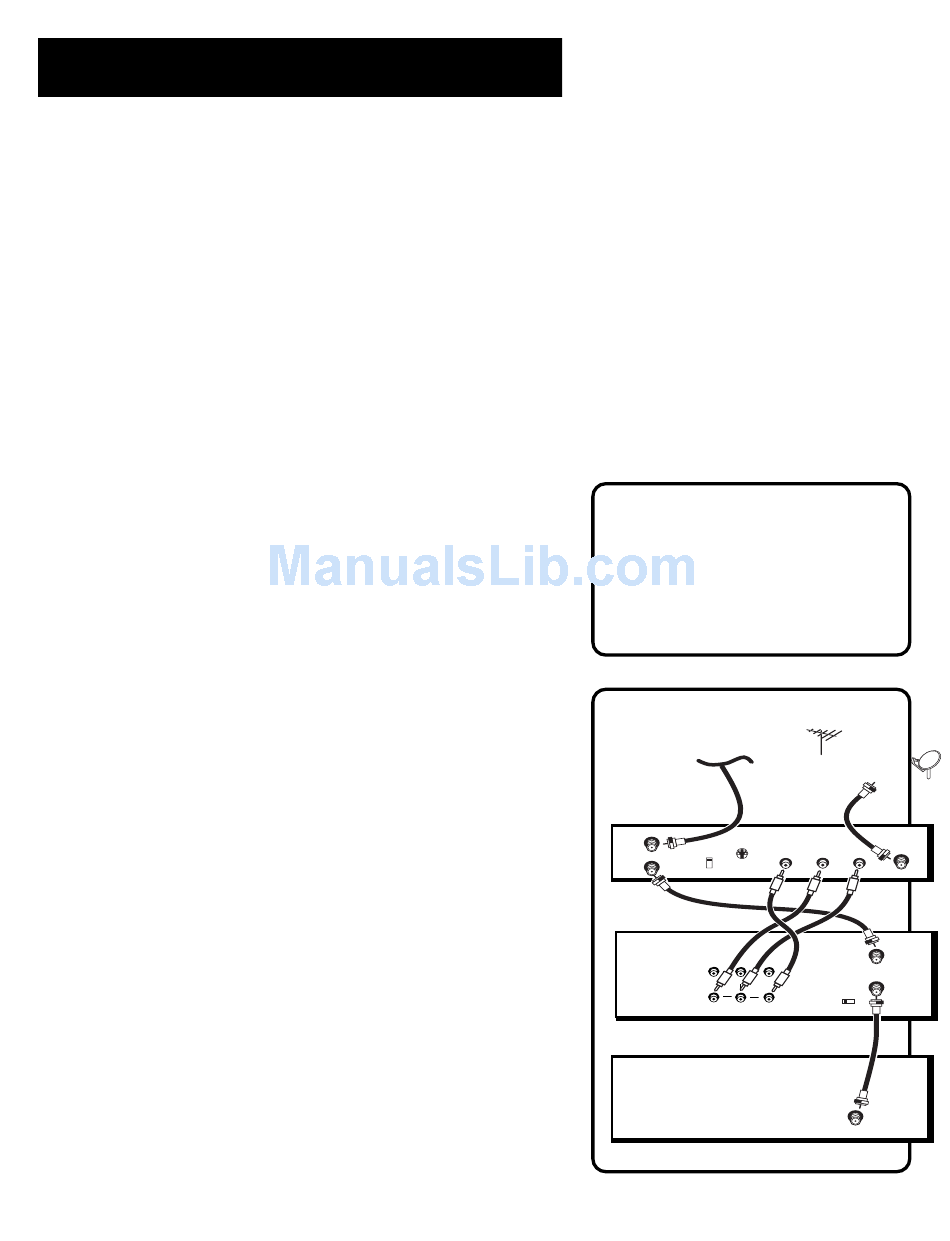

1. Connect cables as shown.
2. Return to the First Things First Section , then follow the steps.
Using This Connection
• Tune your TV to channel 3 or 4, whichever one you selected with
the 3CH.4 switch on the back of the VCR.
• To record and watch off-air or cable, tune your VCR to channel 3
or 4 whichever one you selected with the CH3/CH4 switch on the
back of the receiver. Turn off receiver.
• To watch and/or record from the digital satellite receiver, tune your
VCR to its line input (L1 if you have connected the receiver to the
back jacks or L2 for the front jacks).
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to ON.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one off-air or cable program and watch another
1. Turn off the digital satellite receiver and begin recording a program
using a recording feature.
2. Press TV•VCR on the VCR (ANTENNA on remote) and select a
different channel on the TV.
To record a digital satellite receiver program
1. Turn on the receiver, tune the VCR to its line input, and begin
recording a program using a recording feature.
Caution
The unauthorized recording of
satellite broadcasts, television
programs, or other copyrighted
materials may infringe the rights
of others.
