Connections
TV With Audio/Video Jacks and Cable
Box to Unscramble Pay Channels Only
This connection assumes:
• You are using a cable box only to unscramble premium channels.
• Your TV has audio/video input jacks.
This connection provides:
• Stereo sound playback from VCR.
• Recording a scrambled or unscrambled channel through the cable
box while watching an unscrambled channel.
To use this connection, you must have:
• (3) coaxial cables
• (3) audio/video cables
• (1) splitter
To connect:

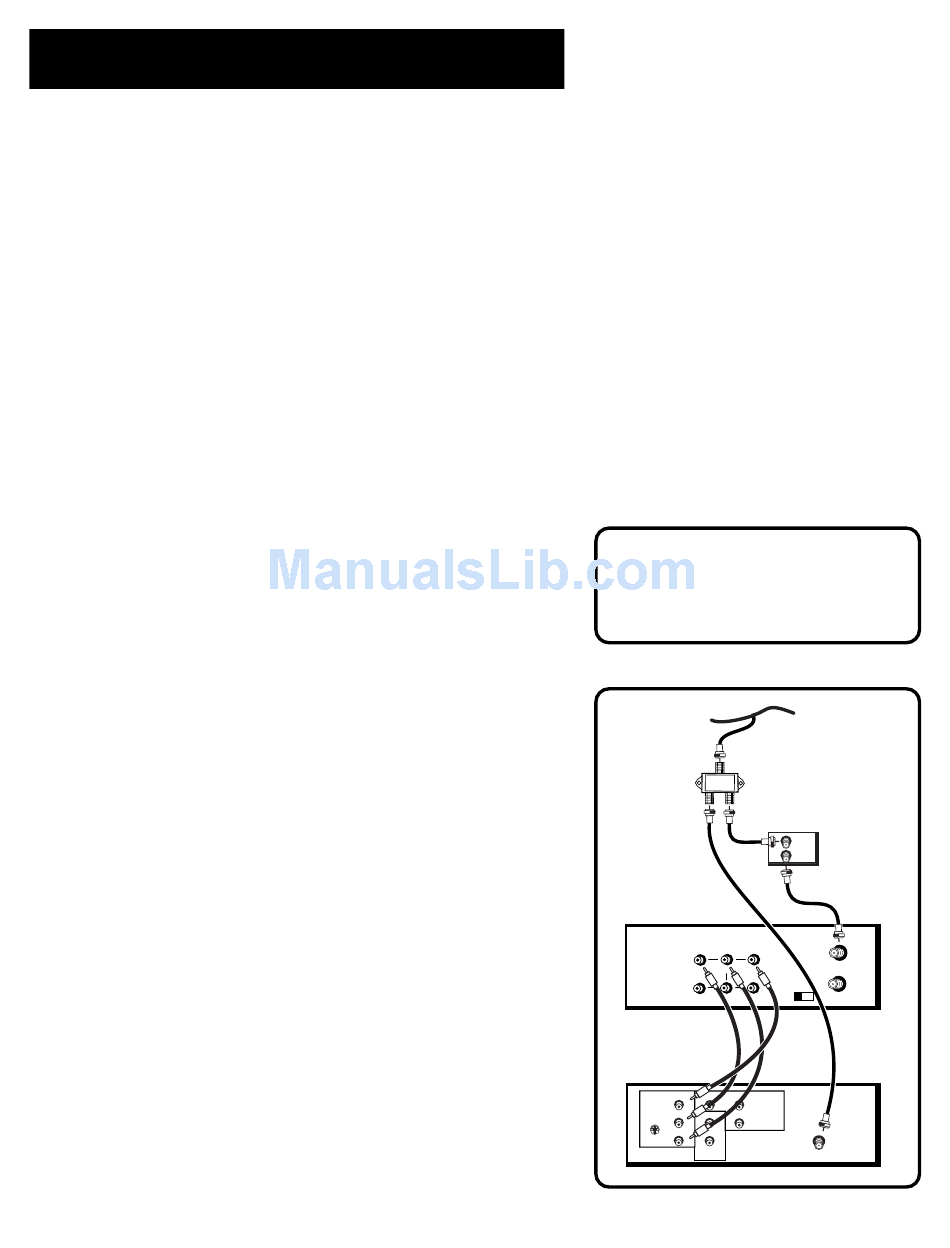

1. Connect cables as shown.
2. Return to First Things First , then follow the steps.
Using This Connection
Tune your TV to its video input channel. Use of TV•VCR button on the
VCR (ANTENNA on remote) is not required.
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to OFF.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record a scrambled or unscrambled program and watch
another unscrambled program:
1. Begin recording a scrambled or unscrambled program through the
cable box using one of the recording features.
2. Select an unscrambled channel on the TV.
62
All scrambled channels must be
viewed through the VCR.
For Cable Box Setup, select ALL
channels (see Setting Up the VCR).
