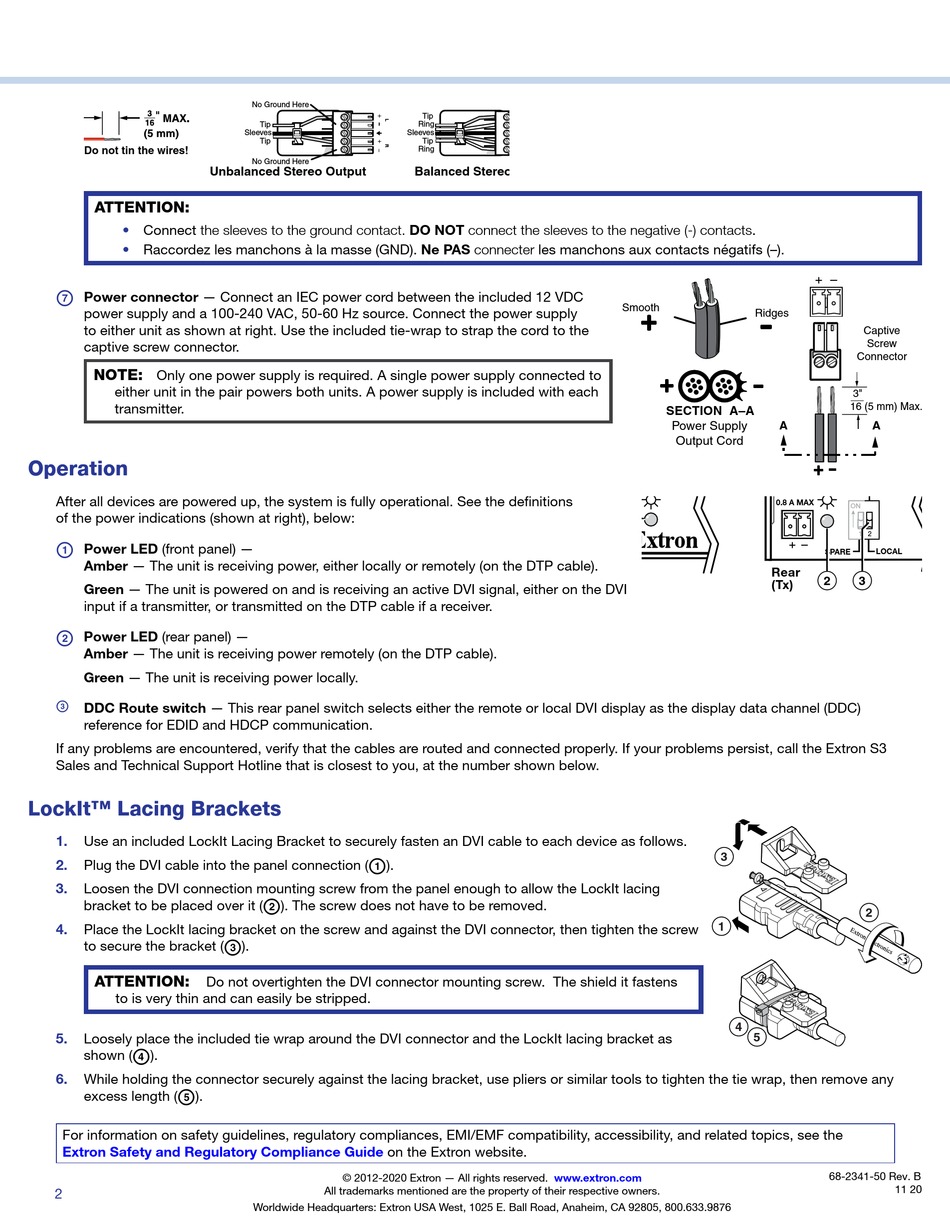

Extron electronics DTP DVI 230 Setup Manual page 2

Do not tin the wires!
ATTENTION:
Connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (-) contacts.
•
• Raccordez les manchons à la masse (GND). Ne PAS connecter les manchons aux contacts négatifs (–).
g
Power connector — Connect an IEC power cord between the included 12 VDC
power supply and a 100-240 VAC, 50-60 Hz source. Connect the power supply
to either unit as shown at right. Use the included tie-wrap to strap the cord to the
captive screw connector.
NOTE:
Only one power supply is required. A single power supply connected to
either unit in the pair powers both units. A power supply is included with each
transmitter.
Operation
After all devices are powered up, the system is fully operational. See the definitions
of the power indications (shown at right), below:
a
Power LED (front panel) —
Amber — The unit is receiving power, either locally or remotely (on the DTP cable).
Green — The unit is powered on and is receiving an active DVI signal, either on the DVI
input if a transmitter, or transmitted on the DTP cable if a receiver.
b
Power LED (rear panel) —
Amber — The unit is receiving power remotely (on the DTP cable).
Green — The unit is receiving power locally.
c
DDC Route switch — This rear panel switch selects either the remote or local DVI display as the display data channel (DDC)
reference for EDID and HDCP communication.
If any problems are encountered, verify that the cables are routed and connected properly. If your problems persist, call the Extron S3
Sales and Technical Support Hotline that is closest to you, at the number shown below.
LockIt™ Lacing Brackets
1.
Use an included LockIt Lacing Bracket to securely fasten an DVI cable to each device as follows.
2.
Plug the DVI cable into the panel connection (
3. Loosen the DVI connection mounting screw from the panel enough to allow the LockIt lacing
bracket to be placed over it (
4.
Place the LockIt lacing bracket on the screw and against the DVI connector, then tighten the screw
to secure the bracket (
ATTENTION:
Do not overtighten the DVI connector mounting screw. The shield it fastens
to is very thin and can easily be stripped.
5. Loosely place the included tie wrap around the DVI connector and the LockIt lacing bracket as
d
shown ( ).
6.
While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any
e
excess length ( ).
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
2
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Stereo Output
a
).
b
). The screw does not have to be removed.
c
).
on the Extron website.
© 2012-2020 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Output
www.extron.com
Smooth
Ridges
SECTION A–A
Power Supply
Output Cord
1
Rear
(Tx)
3
1
3
4
5
Captive
Screw
Connector
3"
16 (5 mm) Max.
A A
DDC ROUTE
POWER
REMOTE
12V
0.8 A MAX
ON
1 2
SPARE LOCAL
2 3
2
68-2341-50 Rev. B
