Lincoln B Series Manual

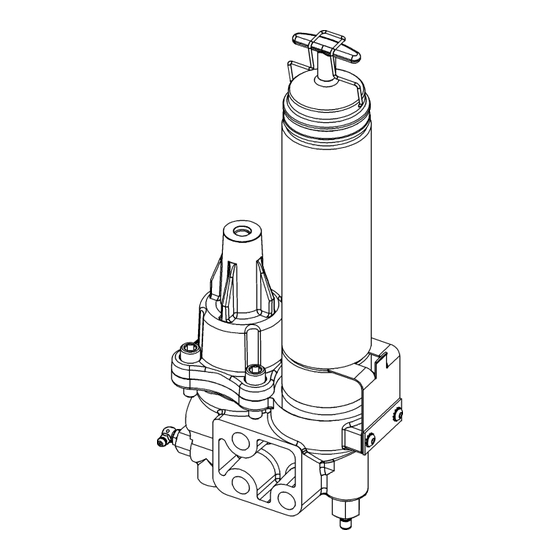

Hydraulic hammer pump
Hide thumbs
Also See for B Series:
- Manual (58 pages) ,
- Service & operating manual (25 pages) ,
- Quick start manual (6 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Lincoln B Series
Summary of Contents for Lincoln B Series

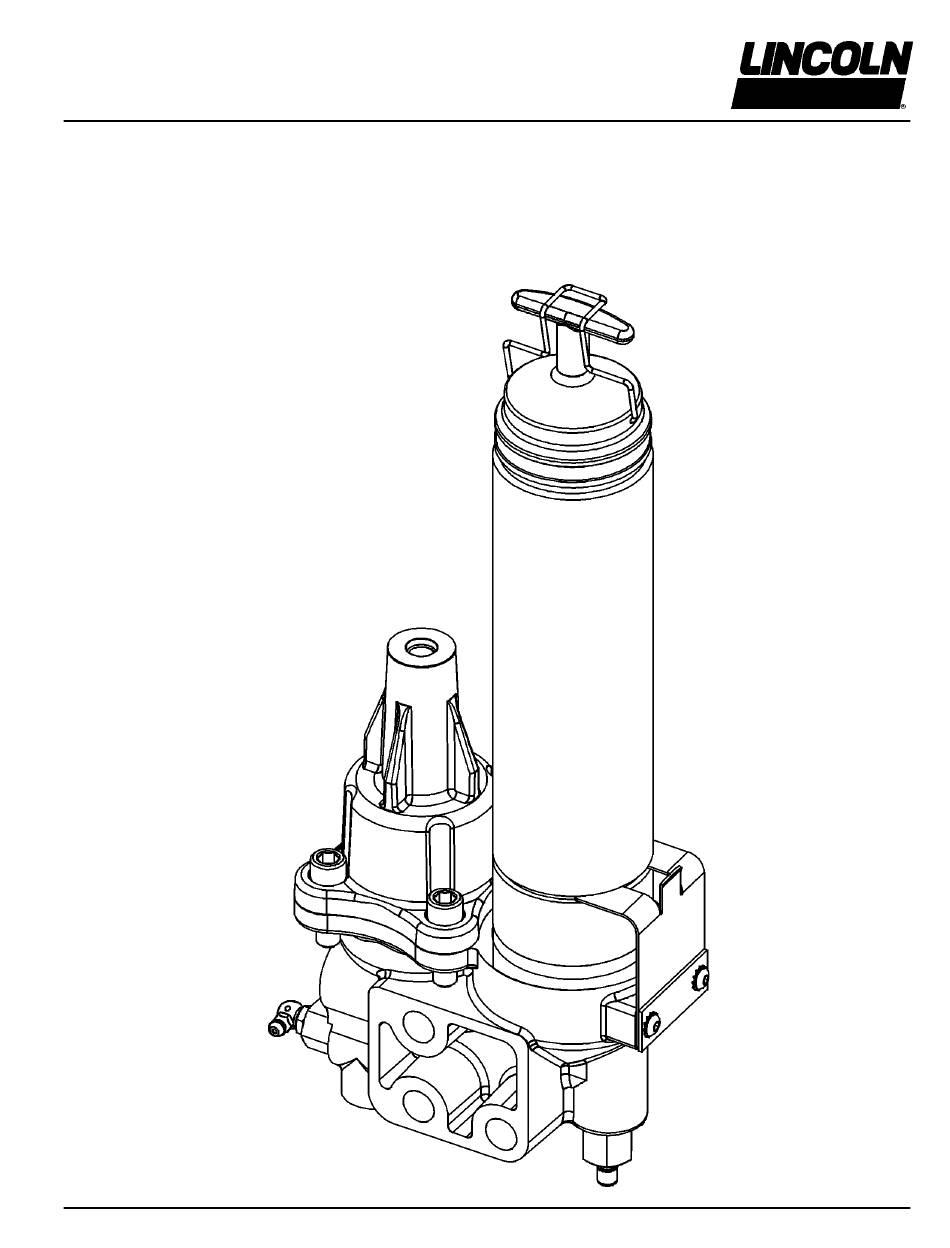

- Page 1 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” - 2A - Q5 Form 402361 March 2002 Section Page...
- Page 2 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Table of Contents Description General Description Safety Appropriate Use • • • • Product Specification Safety Instructions NOTE Page Number - 2 Form 402361...
- Page 3 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Pump Operation Carrier Type Connection Lines Excavator, Backhoe Pressure line Skid Steers Return Line Excavators and Backhoes Connect the Pump to the Pressure Line. Lubricant Recommendations Skid Steers Pump Output Adjustment Connect the pump to the return line. Page Number - 3 Form 402361...
- Page 4 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Maintenance and Repair INSTALLING THE PUMP Filling Pump with Grease Removing Empty Cartridge IMPORTANT Grade 8 Installing Grease Cartridge IMPORTANT: Adjusting the Spring Clip Page Number - 4 Form 402361...
- Page 5 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Removing Empty Cartridge Fig. # 1 Manual (Bulk) Filling Disassembly Procedure (See Exploded View and Fig. #3) Bulk Filling with Filler Pump Page Number - 5 Form 402361...
- Page 6 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Installing Grease Cartridge or Manual (Bulk) Filling Page Number - 6 Form 402361...
- Page 7 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Fig. #2 Page Number - 7 Form 402361...
- Page 8 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” View A View B View C View D Fig. #3 Page Number - 8 Form 402361...
- Page 9 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Fig. #4 Page Number - 9 Form 402361...
- Page 10 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” REPAIR PARTS LIST Item No. Qty. Description Repair Part No. Socket Head Screw (3/8-16 x 1-1/4") 271923 Cylinder Block 271935 U-Cup (polyurethane) (See Note #1) Piston 271921 Spring Retainer 271931 Plunger 271922 Washer 48397 Spring 249966...
- Page 11 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” TROUBLESHOOTING Condition Possible Cause Corrective Action Pump does not operate. No hydraulic pressure to pump. Turn on or connect hydraulic supply. Piston or plunger is stuck. Disassemble pump, inspect for damaged or worn parts. Replace if necessary.
- Page 12 HYDRAULIC HAMMER PUMP MODEL 85429 Series “B” Page Number - 12 Form 402361...
