Lincoln B Series Quick Start Manual

Bulk Capacity - 16 oz. (473 cm³)
Cartridge Capacity - 14-1/2 oz. (429 cm³)
243307
5852 62028
5853
Hydraulic Coupler
with Extension
Extreme pressure may cause nozzle extension or whip
hose to burst. Use only LINCOLN APPROVED hoses and
follow whip hose instructions and warnings.
OPERATING INSTRUCTIONS
Fill the lubricant container Refer to reverse page for
instructions.
Wipe fittings clean before lubricating. Push coupler onto fitting
at slight angle and then center coupler on the fitting Operate
lever gun handle to lubricate taking care not to damage seals
by excessive pressure or lubricant volume After lubricating turn
coupler at a slight angle to release grip of the coupler jaws
TO INSTALL A LUBRICANT CARTRIDGE
1) Loosen the pump head 2-3 rotations.
2) Pull back on the follower handle until the follower rod is
fully extended, approximately 8 inches; pull it sideways to
latch the rod groove into the keyhole slot in the container
cap.
3) Remove the pump head from container tube.
4) If there is an empty lubricant cartridge, carefully release
the follower handle to eject it from the container tube.
5) If an empty lubricant cartridge was expelled, pull back on
the follower handle again and re-lock the rod groove into
the keyhole slot in the container cap.
6) Remove the plastic cap from the end of the new lubricant
cartridge and insert the open end of the cartridge into the
container tube.
OCT - 2009
93499
34793
PART NO. DESCRIPTION
286158
Form 430248
412933

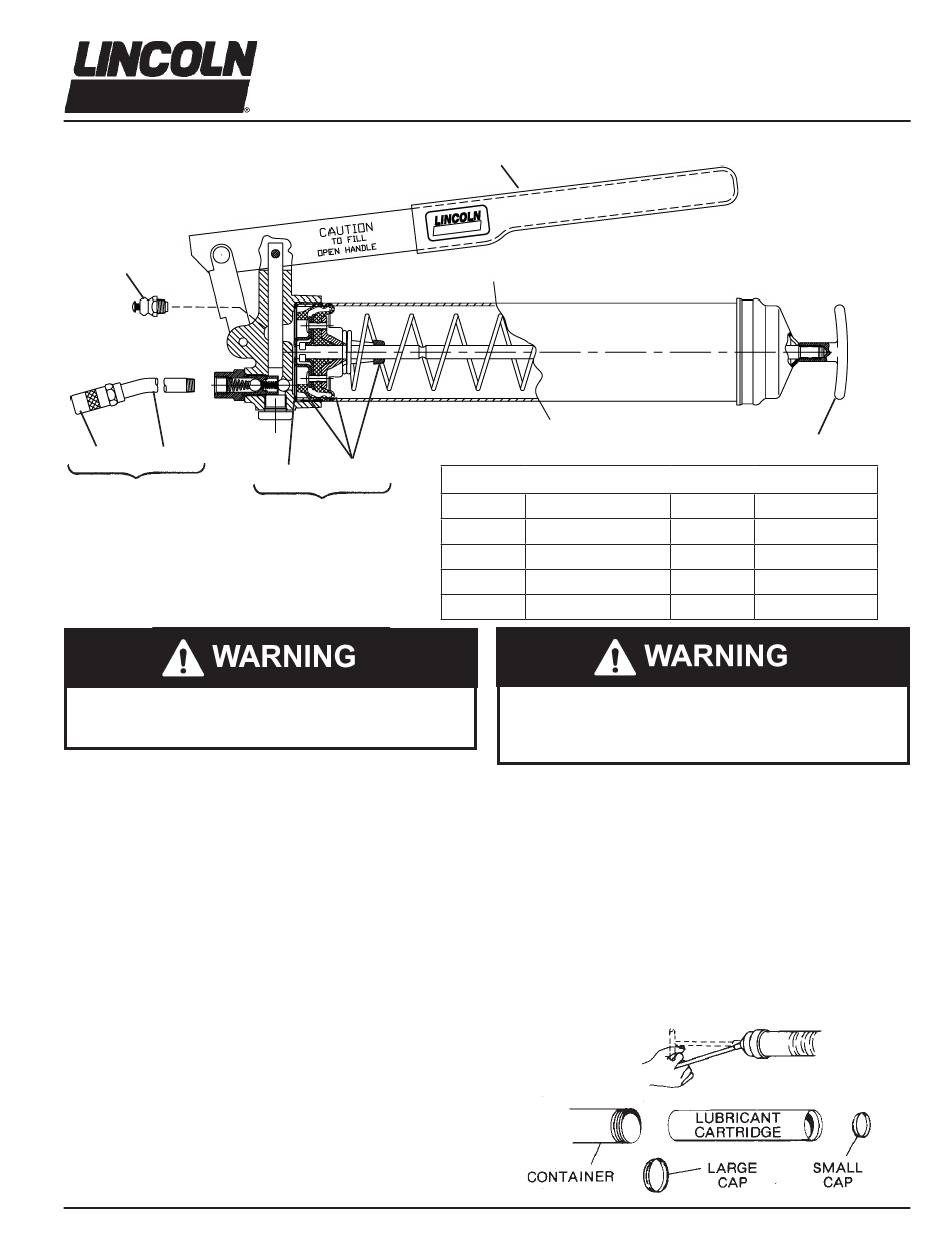

SERVICE PARTS
5852 Hydraulic Coupler
34793 Container Packing
62028 Nozzle Extension
93499 Follower Assembly
Grease gun can develop high pressure up to 7,000 P.S.I.
(483 BAR). Use safety glasses and gloves for protection
during operation. Keep hands clear of the extension during
operation of the grease gun.
7) Remove the metal pull-tab from the lubricant cartridge.
8) Thread the container tube assembly onto the head as-
sembly at least two full turns.
9) Pull the follower handle to release the follower rod from
the container cap.
10) Rotate the follower handle to engage the rod onto the fol-
lower assembly. Slightly push the follower handle forward
to expel air between the thread interface of head and
tube.
11) Finish threading the tube assembly into the pump head
until tight.
12) Disengage the follower rod from the follower by rotating
the follower handle and push the follower rod into the
container.

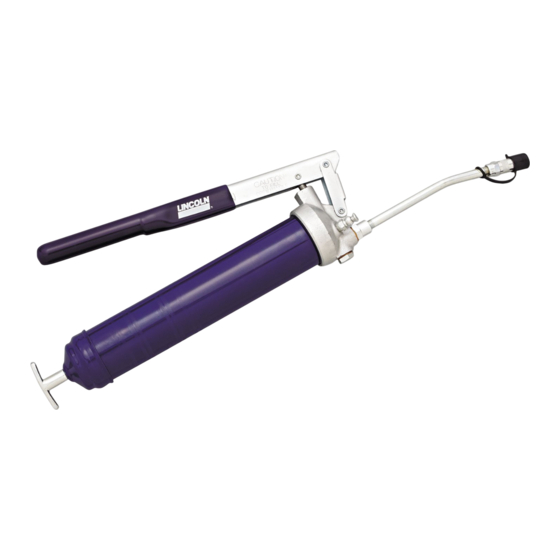

MODEL 1148
GREASE GUN
Series "B"
272078
PART NO. DESCRIPTION
243307 Vent Valve
272078 Follower Handle
286158 Follower Kit
412933 Hand Grip
- D7
Section
Page
- 47B
