GENERAL

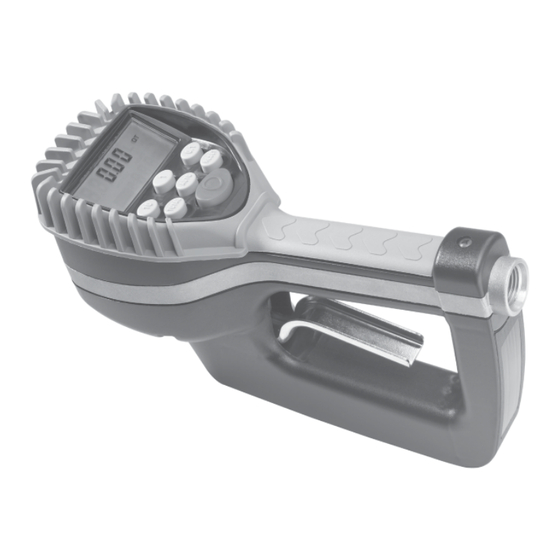

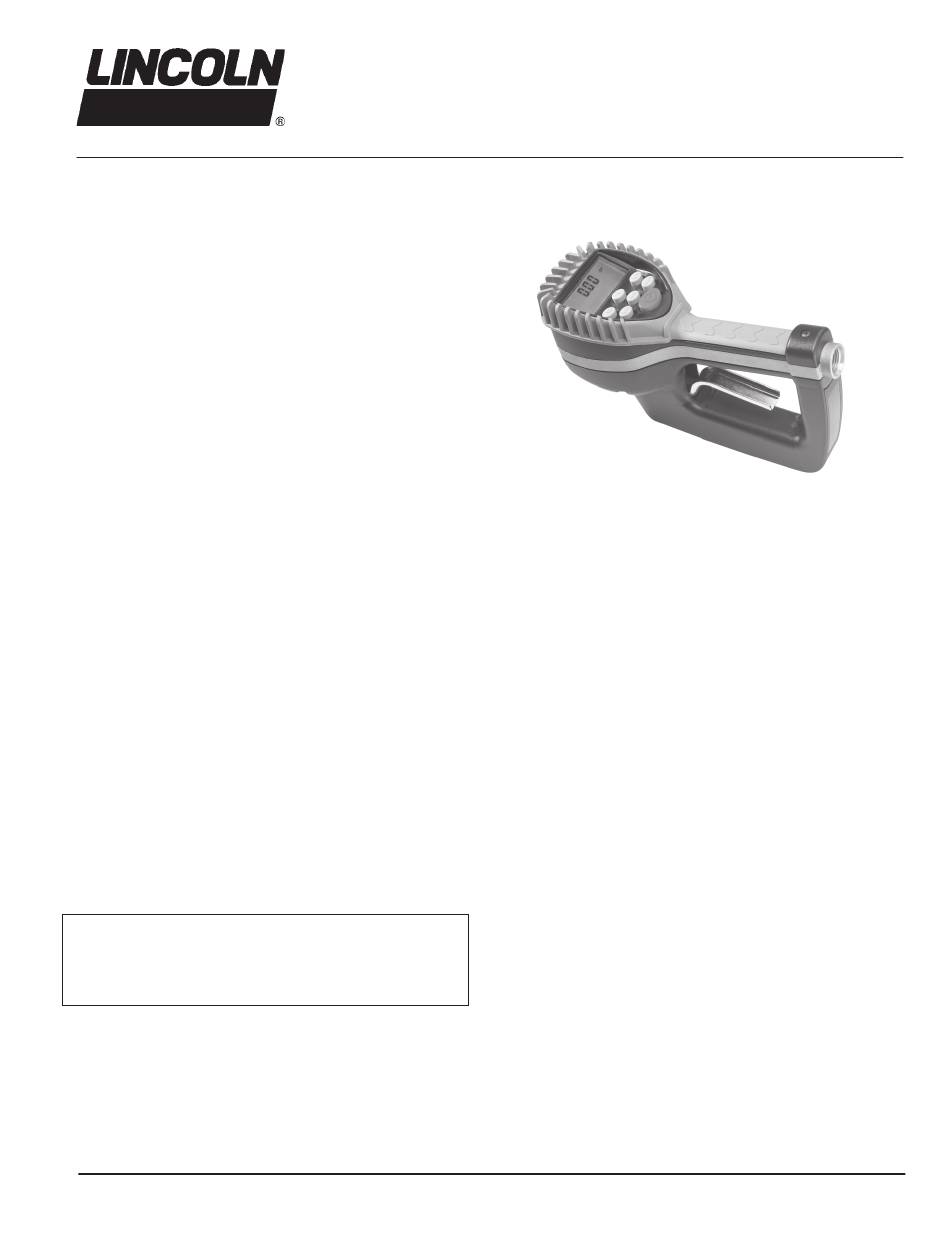

The Electronic Preset Meter (EPM) is designed specifically to
meter and dispense bulk fluids for servicing automobiles,
trucks, buses, construction equipment, and similar applications.
The meter is lightweight, rugged and has a comfortable grip.
The meter is designed specifically to dispense motor oils
(S.A.E. 5-50), gear oils (S.A.E. 80-240), automatic transmission
fluid, antifreeze (Ethylene Glycol) solution, and hydraulic fluid.
A rugged, shock-resistant plastic cover similar to that used for
power tools protects the meter.
METER IS NOT FOR RESALE MEASUREMENT OF FLUID.
OPERATION
The unit is programmed by the user to dispense in quarts,
liters, pints, and gallons. You can program any unit of measure
in a matter of seconds. A 5-digit liquid crystal display, accurate
to the second decimal point, shows the exact amount of fluid
dispensed.
The EPM meter uses 4 replaceable AA batteries and is
calibrated at the factory. The meter can also be recalibrated
easily in the field.
Electronic accuracy will help you save time and money. The
preset feature will allow users to perform other service tasks
while fluid is dispensed.
TYPICAL APPLICATIONS
• Fleet Maintenance Shops
• Industrial Assembly
• Quick Lube Facilities
• Dealerships
• Construction and Mining Equipment
• General Automotive Service Centers
• Specialty Service and Repair Shops
IMPORTANT NOTE: The automatic nozzle requires 60 PSI to
open and function properly. A pump exceeding 60 PSI is
required for adequate flow and proper operation. A pump ratio
of at least 3:1 is recommended.
OCTOBER 2004
OCTOBER 2004
(IOM-088-01 P/N 53400-088)
ELECTRONIC LUBE METER
FEATURES
• Oval Gear Driven Meter
• Durable
• Lightweight
• Large, Easy-to-Read LCD Display
• Ease of Operation
• CE Approved
• Totalization in Liters and Gallons
• Delivery in Liters, Quarts, Pints, Gallons
• Automatic Non-Drip Nozzle with manual shut-off feature
• Max. Totalizer Number: 99,999 Gallons or Liters
• Max. Dispense Volume: 99,999 Units
• Max. Preset Volume: 99.9 Units
• Anticipation Feature for Greater Fill Accuracy
• Calibration Factor for Different Fluids
• Changeable Units of Measure
• One Programmable Preset
• Total and Resettable Total
• Minimum 20,000 Cycles on Battery Life
• Low Battery Indicator
• Low Battery Safety Lock Out Feature
• Ability to Save Settings if Power Interrupted
• Uses Standard AA Batteries
• In-Line Swivel Standard With All Meters
• Automatic Shut-Off at Preset Amount
• Emergency Manual Shut-Off
• Precision Control Valve Operation
FORM 403982
FORM 403982
MODEL 905
Series "B"
Electronic Preset Meter
F22
Section - Page -
23D
1
