Lincoln A Series Owner's/Operator's Manual

NOTE 1: Operating maximum working pressure should not
exceed the pressure rating of the installed hose.
NOTE 2: Bare reel hose models 94100 & 94100M© are
designed to be corrosion resistant when used in applica-
tions using water, antifreeze solutions (ethylene Glycol or
Polypropylene Glycol) and windshield wash solutions (Typi-
cally methyl alcohol diluted with water).
©
NOTE 3: Bare reel hose model 94100M is equipped with
enhanced spring to support a meter.
DESCRIPTION

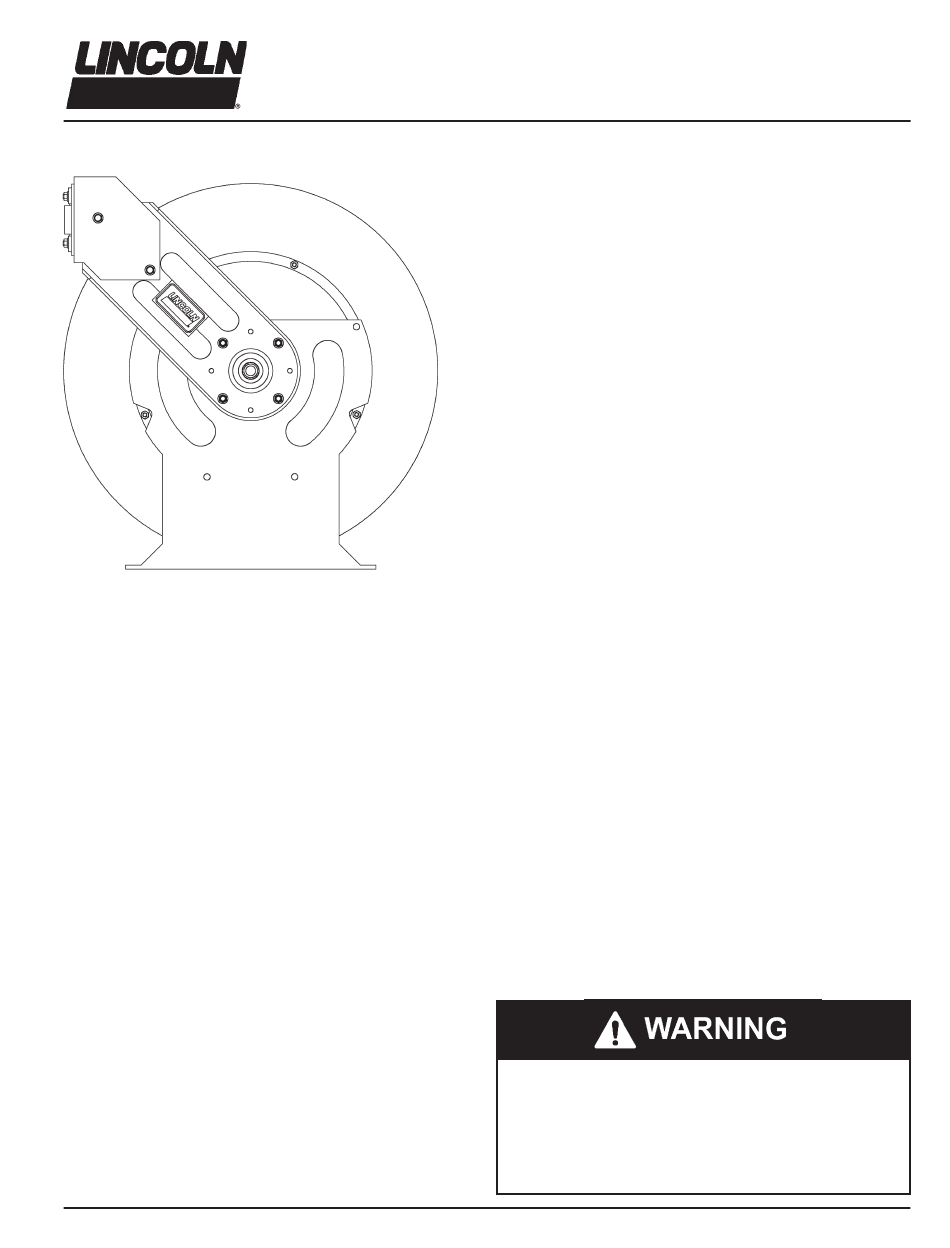

The 94000 Series Reel is designed for hose storage wher-
ever longer length delivery hose is required. The reel can be
installed as a single unit or in multiple configurations.
Reel features include a reel latch that automatically locks at
desired positions as the hose is extended and releases with a
short pull on the hose
OWNER/OPERATOR RESPONSIBILITY
It is the owner/operator responsibility to properly use and
maintain this equipment.
The instructions and warnings contained in this manual shall
be read and understood by the owner/operator prior to operat-
ing this equipment.
If an owner/operator does not under stand English, the con-
tents of this manual shall be explained in the owner/operator
native language to assure the owner/operator comprehends.
© Indicates change
MAR - 2011
Models 94100, 94100M© and 94300, (Series "A")
OWNER/OPERATOR MANUAL
SPECIFICATIONS
Maximum working pressure
Model 94100 (Bare Reel)
Model 94300 (Bare Reels)
Model 94500 (Bare Reel)
Fluid type
Fluid Inlet
Fluid outlet
Sheave width
Sheave diameter
Drum diameter
Overall width
Overall height
Overall depth
Maximum hose capacities (Including hang down):
1/4" ID. Air/water hose
3/8" ID. Air/water hose
1/2" ID. Oil hose
RECOMMENDED REPLACEMENT HOSE SPECIFICATIONS
•
•
•
•
NOTE: Exceeding these capacities voids warranty. Refer to DE-
LIVERY HOSE INSTALLATION for proper hose to reel assembly.
Form 404243
Model 94500 (Series "B")
Models 94300
Models 94500
Models 94100
©
Models 94100M
Models 94300 & 94100
Models 94500
Models 94300, 94100 & 94100M© 1/2" NPT (Female)
Models 94500
Air/water low pressure hose with 250 psi working pressure and
1/2" NPT pipe thread for attachment to reel.
Oil hose medium pressure hose with 1500 psi working pressure
and 1/2" NPT pipe thread for attachment to reel.
Grease high pressure hose 1/4" I.D. with 5000 psi working pres-
sure and 3/8" NPT pipe thread for attachement to reel.
Grease high pressure hose 3/8" I.D. with 4000 psi working pres-
sure and 3/8" NPT pipe thread for attachement to reel.
It is the owner/operator responsibility to maintain the legibility
of all warning and instruction labels.
The owner/operator shall retain this manual for future refer-
ence to important warnings, operating and
maintenance instructions.
Systems which will be dispensing fluids under pressure may
need to be protected by using a thermal relief kit, which will
safely limit the pressures caused by thermal expansion.
Please contact your local Lincoln distributor and refer to
Service Page Section K5, Page 31 for more details. Failure
to include thermal relief protection may cause damage not
covered under Lincoln's warranty policy.
Section
BARE REEL
1000 PSI
4000 PSI (See Note 1)
8000 PSI (See Note 1)
Oil
Grease
Air & Water (See Note 2)
Air & Water (See Note 2 & 3)
1/2" NPT (Female)
3/8" NPT (Female)
3/8" NPT (Female)
4-1/2"
19-1/2"
12-5/8"
6-5/8"
23-3/4"
19-3/4"
60 ft.
60 ft.
50 ft.
- 73G
- E35
Page
