40.2st

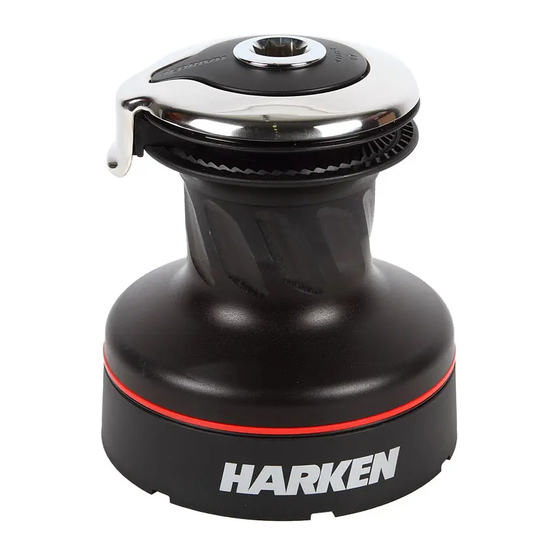

Two Speed Self-Tailing Winch
Required Tools
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease

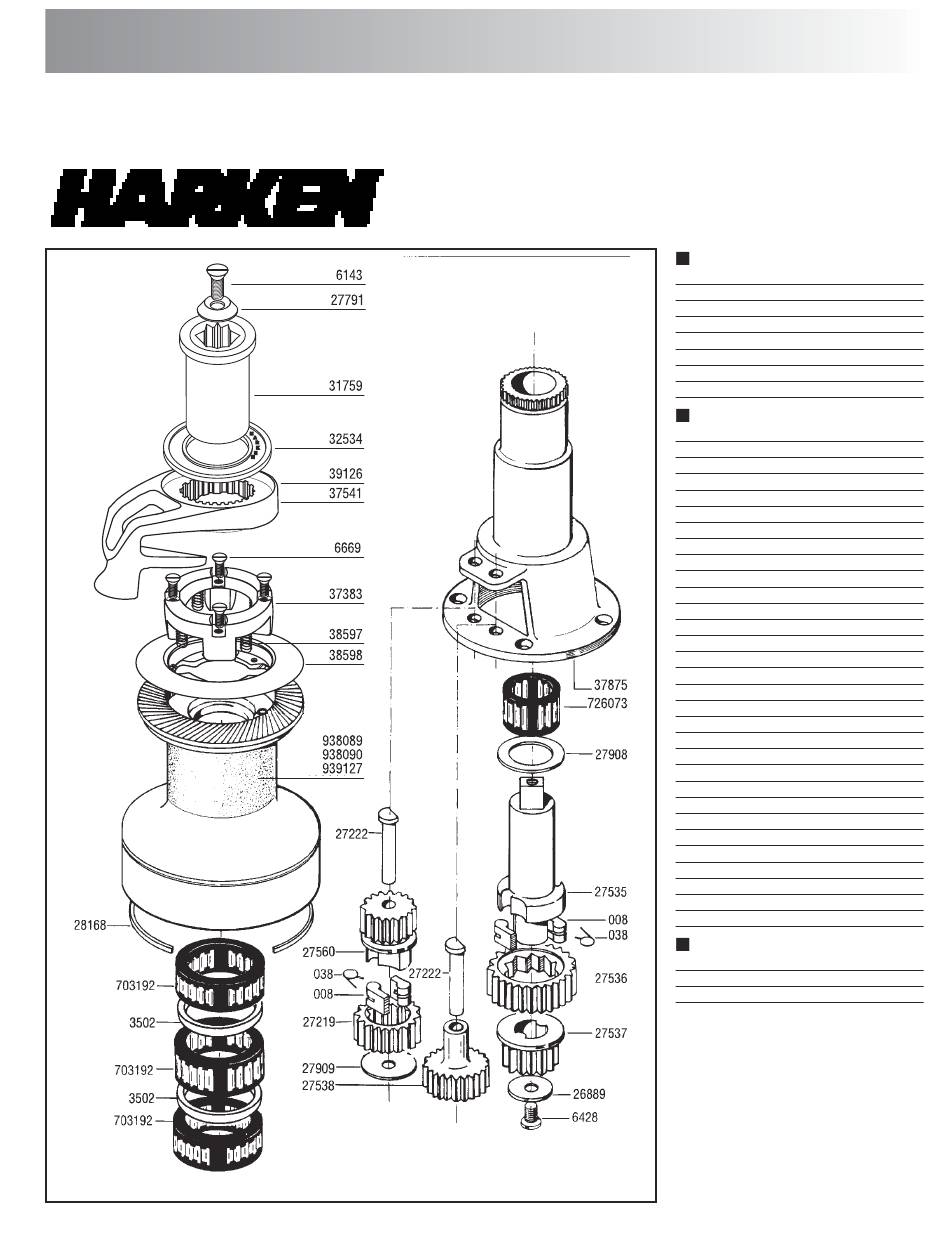

Parts List
008
038
3502
6143
6428
6669
26889
27219
27222
27535
27536
27537
27538
27560
27791
27908
27909
28168
31759
32534
37383
37541
37875
38597
38598
39126
703192
726073
938089
938090
939127
Suggested Service Kits
BK4512
BK4513
When ordering parts, please include a
"B" before each number (i.e. B008).
Winch Parts
Installation
Service
Pawl
Pawl Spring
Bearing Spacer
Top Screw
Screw
Screw
Cover Plate
Ratchet Gear
Gear Shaft
Spindle
Ratchet Gear
Gear
Gear
Pawl Gear
Plastic Washer
Washer
Cover Plate
Red Line Ring
Handle Socket
Top Cap
Springs Support
Chrome Stripper Arm
Center Stem
Spring
Upper Jaw
Bronze Stripper Arm
Bearing
Bearing
Aluminum Drum
Chrome Drum
Bronze Drum
10
008 Pawls
10
038 Springs
100 ml Grease
