Summary of Contents for Harken 46.2 PTBBB

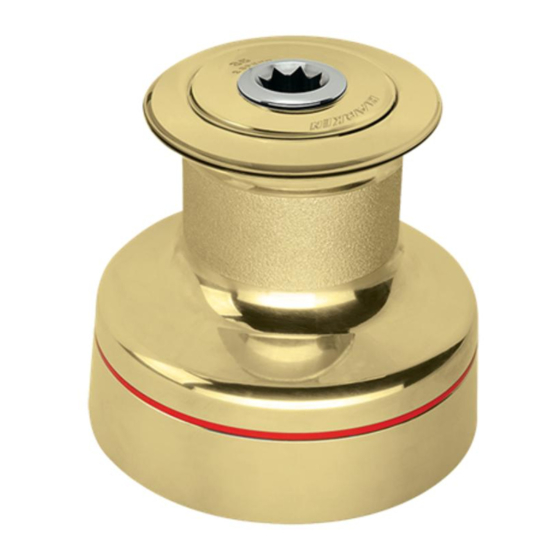

- Page 1 Installation and Maintenance Manual MRW-A Radial Winch 46.2 PT BBB / CCC...
- Page 2 Procedure Installation procedure Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts List Radial Winch 46 PTBBB Radial Winch 46 PTCCC 46.2 PT BBB / CCC Installation and Maintenance Manual - Mod.A...
-
Page 3: Technical Characteristics
In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can ® bear the load. Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed. - Page 5 The winch can be installed following the Procedure below: Procedure To install the winch you must remove the drum and use Socket Head (SH) and Hexagonal Hedaed (HH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
-
Page 6: Installation Procedure
The drilling cut out template is available on the Harken® website, www.harken.com B. Remove the winch and drill the five 8.2 mm diameter holes. C. Bolt the base of the winch to the deck using five M8 bolts (not supplied by Harken ®... -
Page 7: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken ® Tech Service at techservice@harken.it... - Page 8 Carry out the Procedure as shown in the paragraph on winch installation and then do the following: 4. Completely unscrew the three screws n° 27 5. Remove the socket support n°21 6. Slide out the central shaft n°19 7. Unscrew the 5 hex screws n°16 ( 8Nm/71 in-lb) 8.
- Page 9 10. Remove the washer n°12 11. Remove the gear n°9 and remove the pawls n°6. To facilitate the operation press the spring 12. Slide off gear n°2 against the pawl with a blade. 13. Remove the pinion n°10. To facilitate 14.
- Page 10 15. Remove washer n°4 Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done this, dry the parts with cloths that do not leave residue. Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
- Page 11 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
-
Page 12: Ordering Spare Parts
Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it ® Harken limited worldwide warranty ®... - Page 13 Manufacturer Harken Italy S.p.A. ® Tech Service Via Marco Biagi, 14 Email: techservice@harken.it 22070 Limido Comasco (CO) Italy Tel: (+39) 031.3523511 Customer Service Fax: (+39) 031.3520031 Tel: (+39) 031.3523511 Email: info@harken.it Email: info@harken.it Web: www.harken.com Headquarters Harken , Inc. ®...
-
Page 14: Exploded View
Exploded view 1/2 Radial Winch 46.2 PTBBB, PTCCC 46.2 PT BBB / CCC Installation and Maintenance Manual - Mod.A Radial Winch... - Page 15 Exploded view 2/2 Radial Winch 46.2 PTBBB, PTCCC 46.2 PT BBB / CCC Installation and Maintenance Manual - Mod.A Radial Winch...
-
Page 16: Parts List
Bushing Ø12xØ14x11 S413330085 S4133200B3 Bushing for support Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 Spacer S413390080 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 PT BBB / CCC Installation and Maintenance Manual - Mod.A Radial Winch... - Page 17 Bushing Ø12xØ14x11 S413330085 S4133200B3 Bushing for Housing Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 Spacer S413390080 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 PT BBB / CCC Installation and Maintenance Manual - Mod.A Radial Winch...
