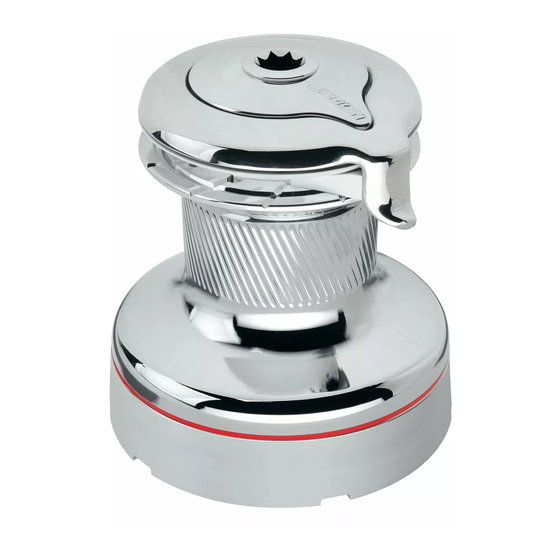

  • Page 1 Installation and Maintenance Manual MRW-D Powered Radial Winch 46.2 ST EL/HY...
  • Page 2 Radial Winch 46.2 STBBB EL/HY Radial Winch 46.2 STCCC EL/HY Exploded view and parts list Horizontal electric motor 12V / 24V Vertical electric motor 12V / 24V Hydraulic motor 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 3: Technical Characteristics

    ® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it ® This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4 Subjecting the winch to loads above the maximum working load can cause the winch to fail or pull off the deck suddenly and unexpectedly during high loads causing severe injury or death. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D...
  • Page 5 Winch 46 ST EL/HY Winch 46 ST EL HO Winch 46 ST EL/HY Winch 46 ST EL HO Outline Winch 46.2 ST EL/HY Horizontal electric motor (12 V / 24 V) Ø184 Ø101 Ø184 Ø101 Ø101 Ø101 Ø184 Ø184 Winch 46 ST EL VT...

  • Page 6: Installation

    Once you have decided the correct mounting position for the winch on the deck and checked the space available below deck, proceed with the installation. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 7 2. Unscrew the central screw ( 2Nm/18 in-lb) 3. Slide off the assy socket n°31 and the cover 4. Unscrew the three screws n°29 n°30. ( 4Nm/35 in-lb) Pay attention to the o-ring in the socket. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 8 See (paragraph on installation) the limits described on page 6 and using socket head (SH) bolts. Torque to apply when assembling 1. Remove the skirt n°2 with the help of the 2. Take off the base n°2 screwdriver placed as shown by the symbol 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 9 Make sure the skirt is correctly clipped on to the base of the winch. Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 6 and using hexagonal headed (HH) bolts. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 10 ® B. Remove the winch and drill the five 8.2 mm and a 80 mm diameter holes. C. Bolt the base of the winch to the deck using five M8 bolts (not supplied by Harken ) as ®...
  • Page 11 2. Tighten six M6 precote coated screws ( 8 Nm/ 71 in-lb) 3. Position the reduction gear and motor 4. Tighten the two screws ( 8 Nm/ 71in-lb). Be sure to align the flange. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 12: Electric Equipment

    Dual Function Control Box manual. WARNING! Before installing and using the device, read carefully the Dual Function Control Box manual available on web site www.harken.com Refer to the following chart for wire size: Total distance between winch and battery Winch Current Under 16.4 ft...
  • Page 13 10 Nm (88 in-lb). NOTICE Note that correct electrical contact sequence is: Nut – Cable Terminal – Self-Locking Washer – Lock 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 14 Input/output pipe thread: G 1/2 – depth 15 mm Drainage pipe thread: G 1/4 – depth 12 mm WARNING! Refer to the Hydraulic Power Unit and Control Box manual. WARNING! Refer to the Digital System Switch manual. 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 15: Maintenance Table

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. WARNING! Make sure that the power is switched off before installing or carrying out maintenance on the winch. In the case of doubt contact Harken Tech Service at techservice@harken.it ® Disassembly procedure Tools needed:...
  • Page 16 8. Unscrew the 6 hex screws n°17 9. Remove the assy housing n°16 ( 20Nm/177 in-lb) Important: washer n°13 may remain inside the drum support! 10. Remove the washer n°13 11. Remove the gear n°10 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 17 12. Remove the pawls carrier n°7 13. Remove the gear n°3 14. Remove the gear n°15 15. Remove the gear n°6 16. Remove the pawls carrier n°11 17 . Remove the washer n°5 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 18 Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease. Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls! 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D...
  • Page 19 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
  • Page 20 Before screw the central screw, check the correct position of the o-ring in the assy socket and apply Harken grease. ® In case of doubt concerning the assembly procedure contact Harken® Tech Service: techservice@harken.it 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 21: Ordering Spare Parts

    Limited Worldwide Warranty in the Harken Catalogue and on the website ® ® www.harken.com Ordering spare parts Spare parts can be requested from Harken ® described in the Harken Limited Worldwide ® Warranty, indicating the part number in the W XXXXX...

  • Page 22: Exploded View

    Exploded view Exploded view Radial Winch 46.2 STA, STC, STCW EL/HY 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 23 Radial Winch 46.2 STA, STC, STCW EL/HY 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 24: Parts List

    Housing Winch 46 S414900080 Bushing Ø12xØ14x8 Bushing Ø12xØ14x11 S413330085 S4133200B3 Bushing for support Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 25 Housing Winch 46 S414900080 Bushing Ø12xØ14x8 S413330085 Bushing Ø12xØ14x11 Bushing for support S4133200B3 Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 26 Housing Winch 46 S414900080 Bushing Ø12xØ14x8 S413330085 Bushing Ø12xØ14x11 Bushing for support S4133200B3 Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 27 Radial Winch 46.2 STBBB, STCCC EL/HY 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 28 Radial Winch 46.2 STBBB, STCCC EL/HY 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 29 Bushing Ø12xØ14x8 Bushing Ø12xØ14x11 S413330085 S4133200B3 Bushing for support Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 Spacer S413390080 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 30 Bushing Ø12xØ14x8 Bushing Ø12xØ14x11 S413330085 S4133200B3 Bushing for support Screw M8x25 UNI 5931 M0606303 Bearing Ø75xØ87x26 A74133700 Spacer S413390080 *Available with service kit; see website www.harken.com **Winch product sticker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 31 Electric Motor Polarity motor sticker Screw stud M6x26 Washer Ø6 Nut M6 UNI5588 M6014206 Key DIN 6885 5x5x15 Polarity motor sticker Identification motor sticker Anti-seize Harken ® Grease Axial Threadlocker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
  • Page 32 Toothed coupling M0620401 Spring pin 5x40 DIN1481 S326490001 Spring S415040080 Bushing S329360082 Washer M0666603 Screw M6x16 UNI 5933 Identification motor sticker Polarity motor sticker Anti-seize Harken ® Grease Axial Threadlocker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...

  • Page 33: Hydraulic Motor

    Spring pin 5x40 DIN1481 M0621503 Washer D.13 U1751 DIN127 S415010080 Bushing M0667103 Screw M12x35 UNI5931 S326490001 Spring S329360082 Washer M0635303 Screw M8x16 UNI6109 Anti-seize ® Harken Grease Axial Threadlocker 46.2 ST EL/HY Installation and Maintenance Manual - Mod.D Radial Winch...
