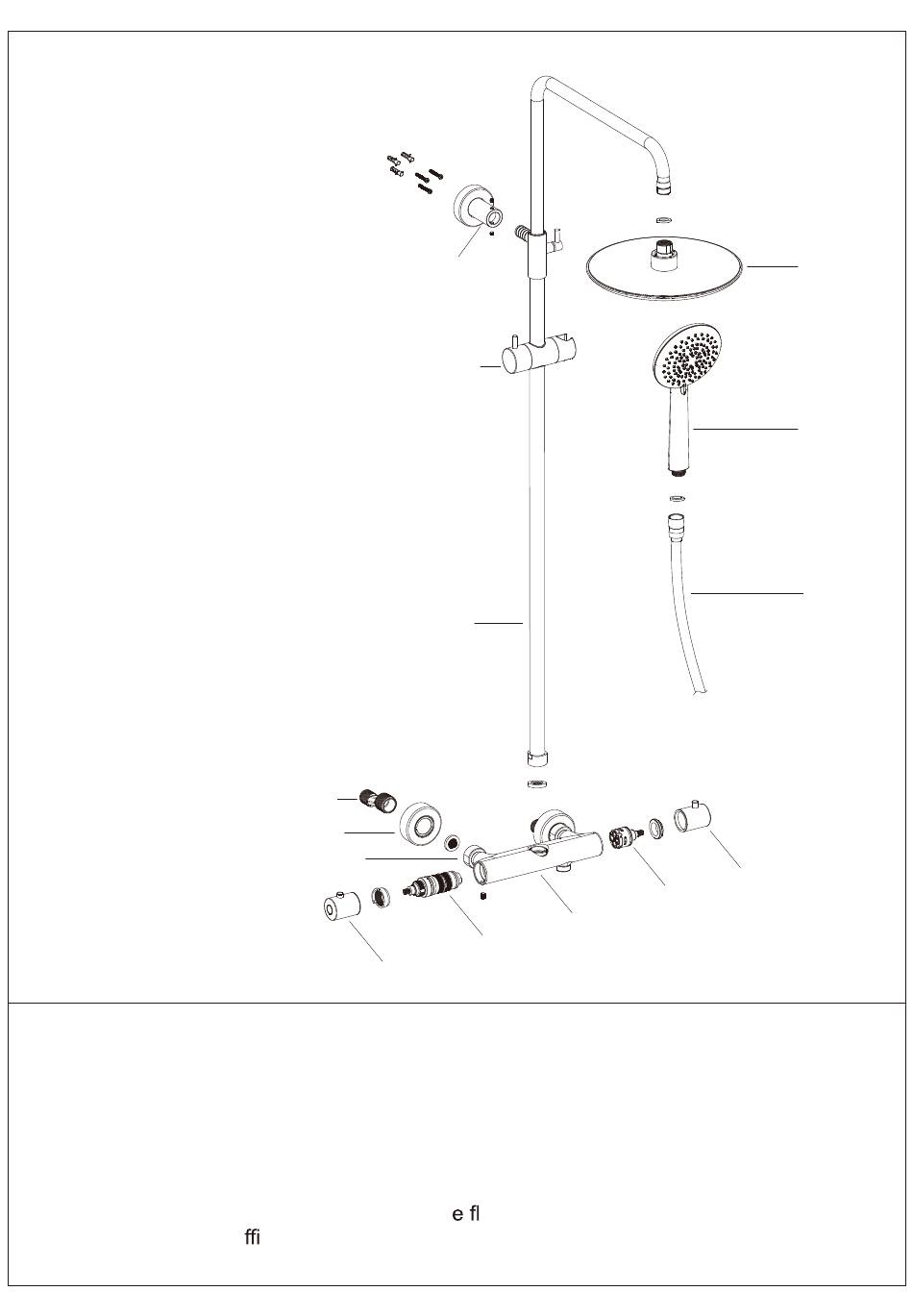

COMPONENTS
Part Description
[ 01 ] Faucet
[ 02 ] Thermostatic Cartridge
[ 03 ] Temp. Control Handle
[ 04 ] Diverter
[ 05 ] Diverter Handle
[ 06 ] Nut
[ 07 ] Cover
[ 08 ] Nipple
[ 09 ] Riser
[ 10 ] Bracket
[ 11 ] Mounting Kit
[ 12 ] Shower Hose
[ 13 ] Hand Shower
[ 14 ] Shower head
Before installation:
1. Please check the product for damage and missing parts immediately upon delivery.
Damage reported later will not be covered by our warranty.
Please handle the product with care.
2. Ensure that all supply lines are free of debris.
3. Ensure water pressure is between 20-125 PSI.
4. Make sure that the wall is strong enough to support the showerpipe.
The wall must be reinforced at the mounting points. The area where the top
mounting piece is to be installed must b
4. If you are having di cuties on installation, please contact a professional plumber .
PG. 2
[11]
Qty.
1
1
[10]
1
1
1
2
2
2
1
1
1
[09]
1
1
1
[08]
[07]
[06]
[03]
[01]
[02]
at and free of protruding grout joints, etc.
[14]
[13]
[12]
[05]
[04]
