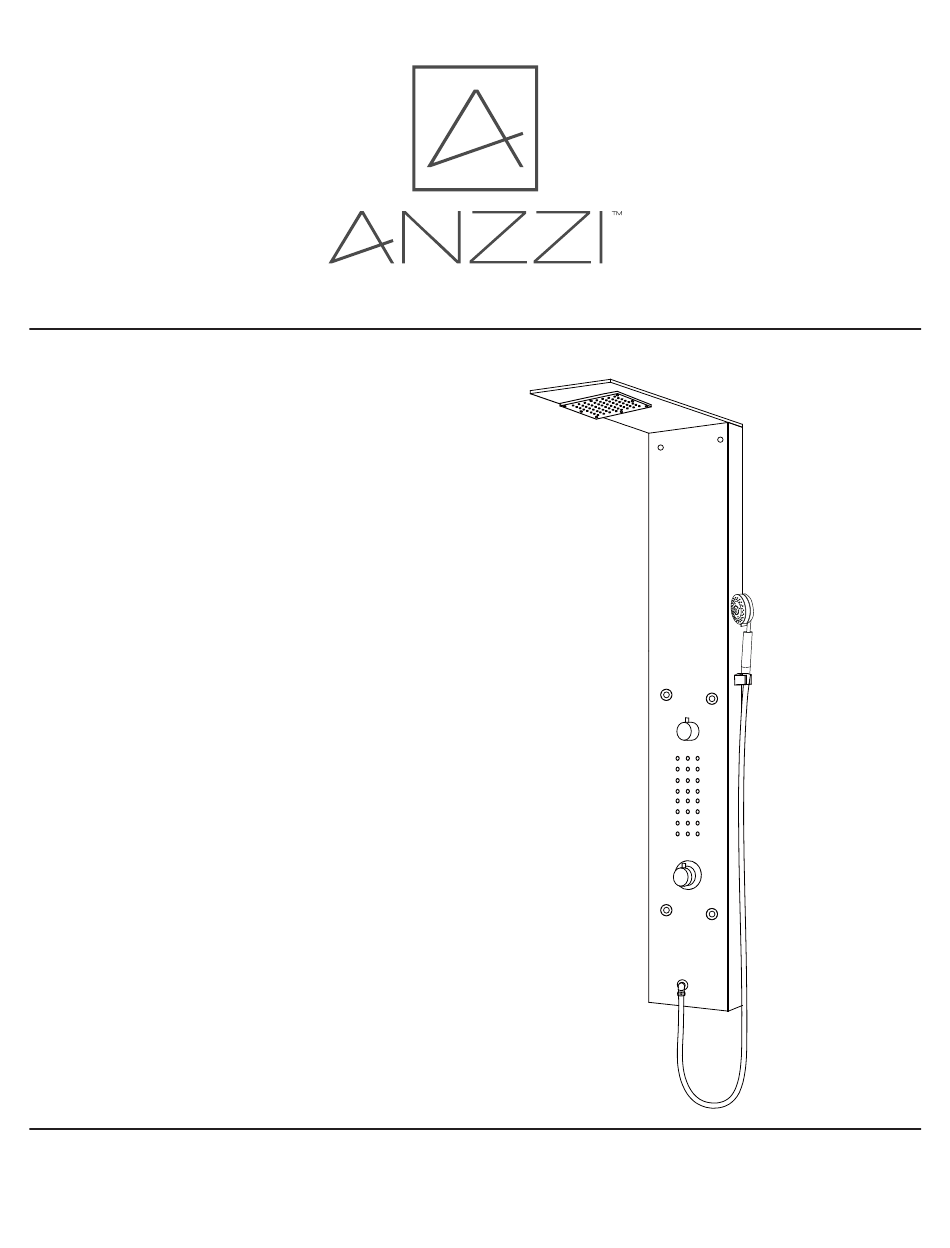

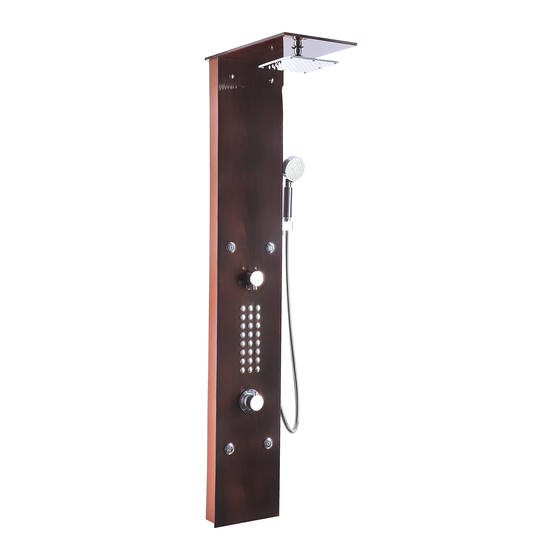

- Page 1 RITE INSTALL GUIDE Model# SP-AZ016 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
Component no. Component Material top part glass nut 1 brass clip screw shim nut 2 backside body connector brass flange front body glass top shower part body jets 1 brass 1. Shower Head knob zinc washer 2 rubber 2. Body Jets cartridge body jets fastener 3. -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING 18.11” Perfection is our Tradition™ RITE SP-AZ016 Material: Tempered Glass Finish: Dark Wood Style Handles: 2 Jets: Shower: 6.89” x 6.89“ Sprayer: 60” reach Weight: 30.42 lbs Height: 59.37” Supply: 1/2” connections Flow: 1.8 gpm Features Heavy Rain™ Fixed Showerhead 9.84”... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver ighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 Figure 1 Step 1A Line up the shower wand holder to the pre-drilled holes and insert the provided screws. Secure the screws by tighting the nuts on the opposite side of the panel wall. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 Standard 3 Setting Hand Hand Shower Shower Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION (SHOWER HEAD) Figure 3 Step 3A Place and align the top shower panel with the pre-drilled holes on the top side of the wall mounted panel. Step 3B Using the screws and washers provided, secure the top panel with the wall mounted panel. Step 3C Add Teflon tape and install the shower head to the top panel, as shown.
- Page 11 Figure 4 Cold Step 4A Screw the cold and hot water from the shower panel to the supply lines in the wall. Step 4B Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. PERFECTION IS OUR TRADITION™ pg.
-
Page 12: Care & Maintenance
CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product. -
Page 13: Warranty
ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. - Page 15 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
- Page 16 Perfection is our Tradition™...
