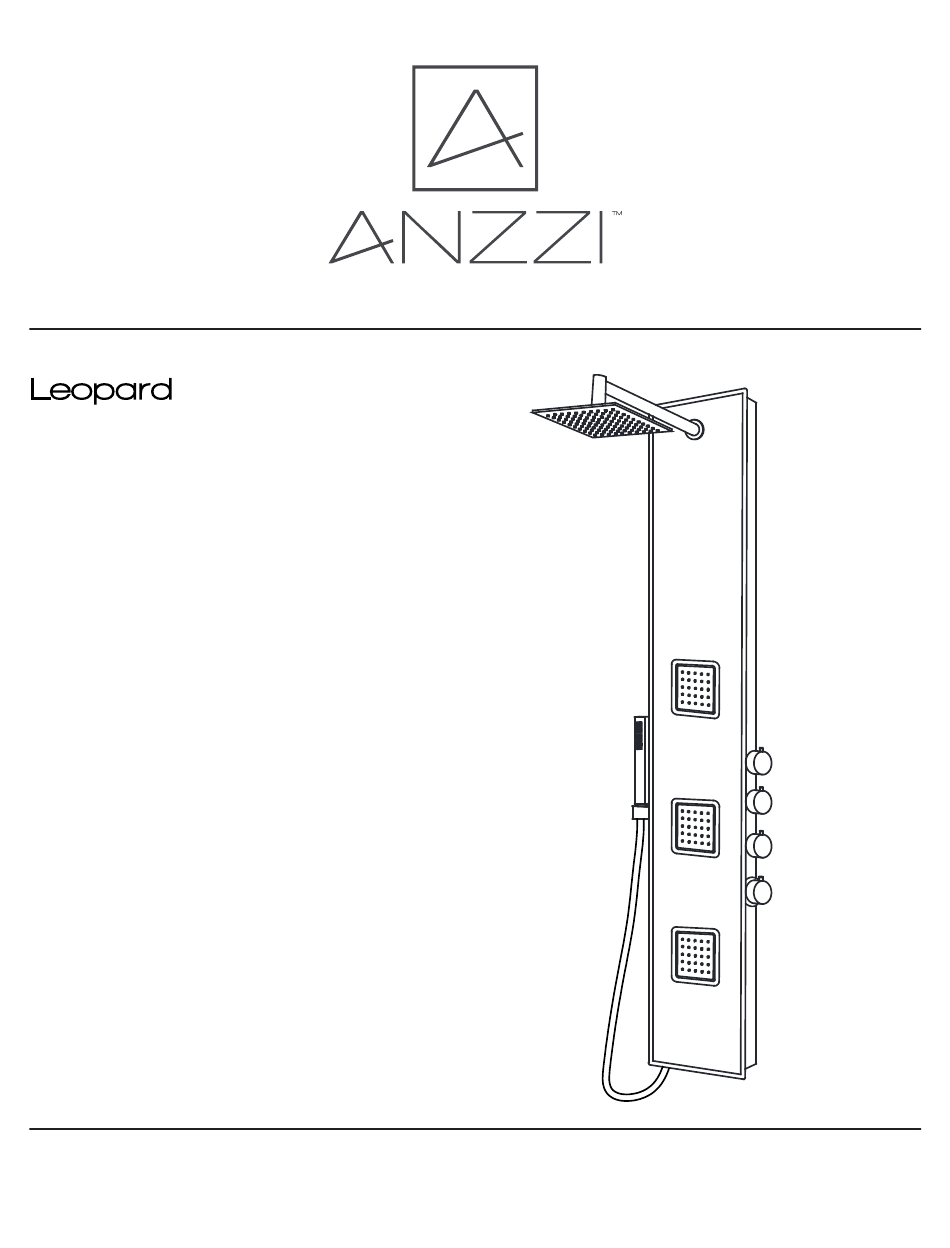

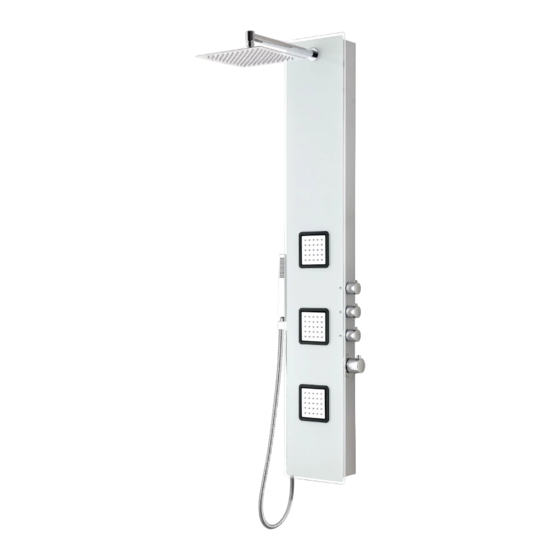

- Page 1 Leopard INSTALL GUIDE Model# SP-AZ032 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST Component no. Component Material head shower arm bar brass flange brass glass tempered glass backside body Aluminium one way joint hand shower hand shower holder 1. Shower Head flexible hose 2. Diverter body jets faucet body 1 brass 3. -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING 22.48” Perfection is our Tradition™ Leopard SP-AZ032 Material: Tempered Glass Finish: White Tempered Glass Handles: 4 Jets: Shower: 9.843”x9.843” Sprayer: 60” reach Weight: 25.8 lbs Height: 59.05” Supply: 1/2” connections 9.84” Flow: 1.8 gpm *when reducer is removed Features 3.58”... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver tighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 INSTALLATION (HANDSHOWER) Figure 1 Step 1A Insert the hand shower holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the hand shower onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the hand shower hose to the holder connection.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 1 Setting 3 Setting Hand Hand Shower Shower Step 2A Finally, install the hand shower to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION (SHOWER HEAD) Figure 3 Step 3A Install the shower arm to the shower panel, using the rubber washer and nut on the opposite side to tighten. Step 3B Makes sure the shower arm is sitting correctly before installed the shower head. Step 3C Screw the shower head onto the shower arm.
- Page 11 INSTALLATION (WALL MOUNTING) Figure 4 Cold Screw the cold and hot water hoese from the shower panel to the supply lines in the wall. Step 4A Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. Step 4B PERFECTION IS OUR TRADITION™...
- Page 12 DO NOT ALLOW THE CLEANER TO SOAK. Following these simple principles will ensure you ANZZI™ product will remain as lustrous and stun- ning as the day it was first received. ENJOY! Sincerely, La Familia ANZZI™...
-
Page 13: Care & Maintenance
ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. - Page 15 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
- Page 16 Perfection is our Tradition™...
