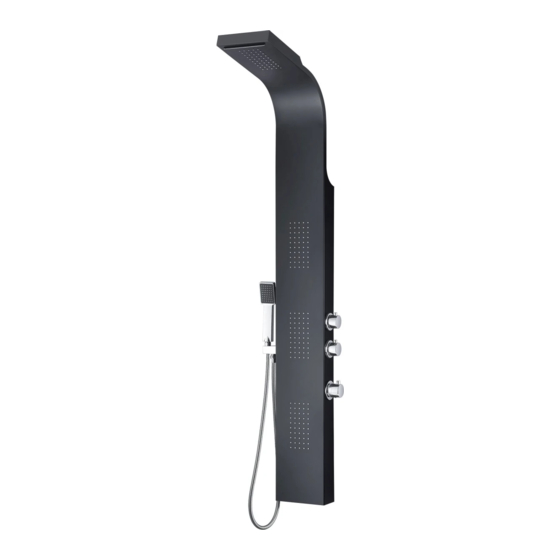

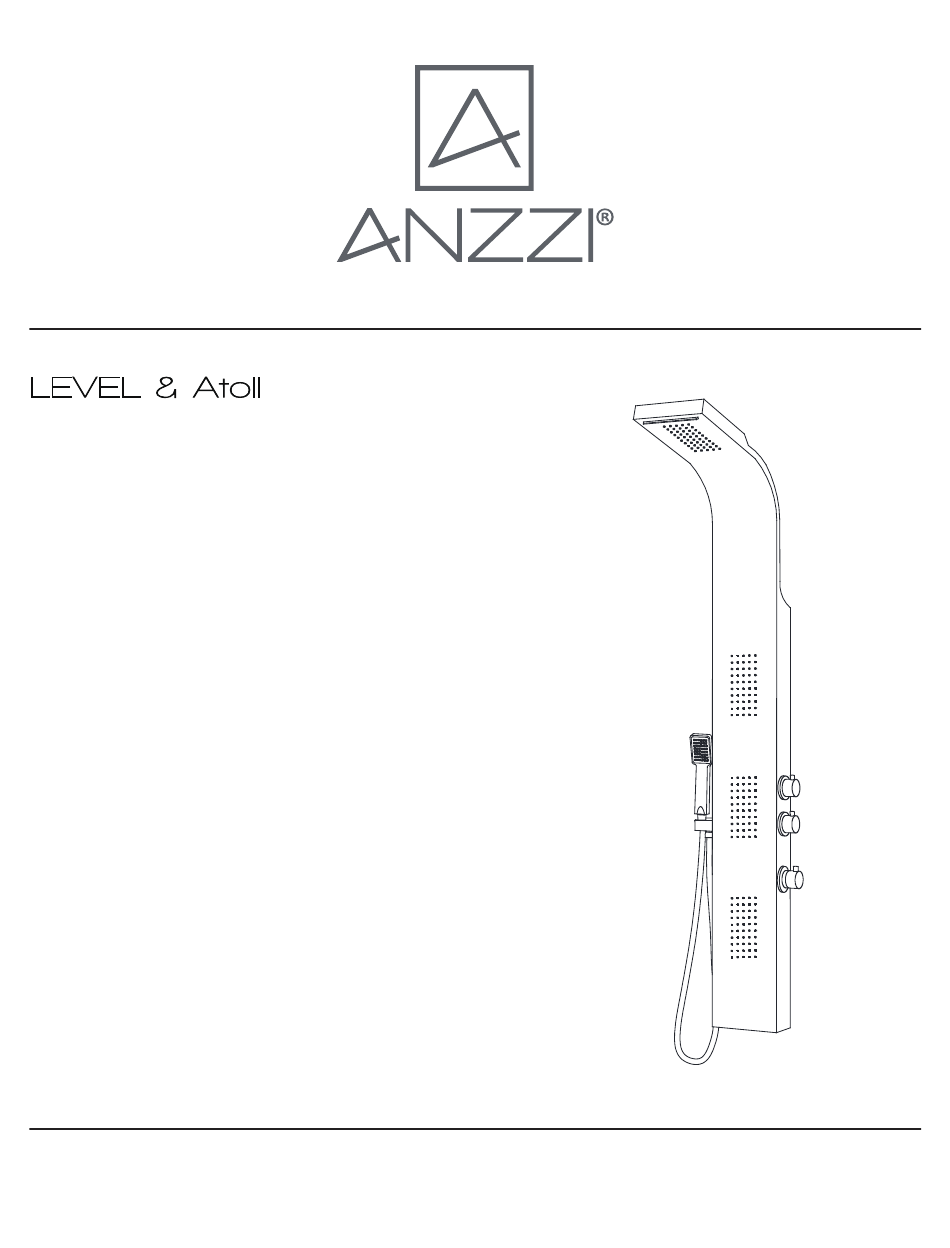

- Page 1 INSTALL GUIDE Model# SP-AZ056 SP-AZ8098 PERFECTION IS OUR TRADITION™ v2.20.12...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI® Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST Component no. Component Material water fall brass head shower clip body PVC hose body jets one way joint fixing bar brass faucet part 1 function cartridge knob plate cover brass knob zinc two way joint faucet part 2 brass 1. -
Page 4: Before You Start
BEFORE YOU START Recommended Items Screwdriver Channel Locks Goggles Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 305-614-4070. -
Page 5: Spec Drawing
SPEC DRAWING 18.90 Perfection is our Tradition™ LEVEL SP-AZ056 Material: Finish: Black Handles: 3 Jets: Shower: 2.99” x 6.535” Sprayer: 60” reach Weight: 14.74 lbs Height: 64.96” Supply: 1/2” connections Flow: 2.5 gpm 7.87 Features Heavy Rain™ Showerhead Acu-Stream™ high pressure body jets Euro-Grip™... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver tighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 INSTALLATION (HANDSHOWER) Figure 1 Step 1A Insert the shower wand holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 1 Setting 3 Setting Hand Hand Shower Shower Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION (WALL MOUNTING) Figure 4 Cold Screw the cold and hot water from the shower panel to the supply lines in the wall. Step 4A Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. Step 4B PERFECTION IS OUR TRADITION™...
-
Page 11: Care & Maintenance
® stun-ning as the day it was first received. ENJOY! Sincerely, La Familia ANZZI ® Perfection is our Tradition™ Perfection is our Tradition™ For more information visit us at www.ANZZI.com For more information visit us at www.ANZZI.com pg. 9... -
Page 12: Warranty
® Perfection is our Tradition™ *Shipping and handling fees are not covered under the ANZZI® Warranty. This warranty is in effect as of January, 2016. This warranty supersedes all previous warranties and/or claims both stated and implied. This warranty is subject to change without notice. - Page 15 PRODUCT AND WARRANTY REGISTRATION To register your product and activate your Limited Lifetime Warranty contact us at 305-614-4070 or email us at support@ANZZI.com. Or, if preferable, fill out the form below then scan/fax/mail us a copy. Email: support@ANZZI.com In need of replacement parts?
- Page 16 Perfection is our Tradition™...
