System Layout - Polycom Vortex EF2241 Application Note

Interfacing vortex® devices to video codecs

Hide thumbs Also See for Vortex EF2241:

Table of Contents

YSTEM

AYOUT

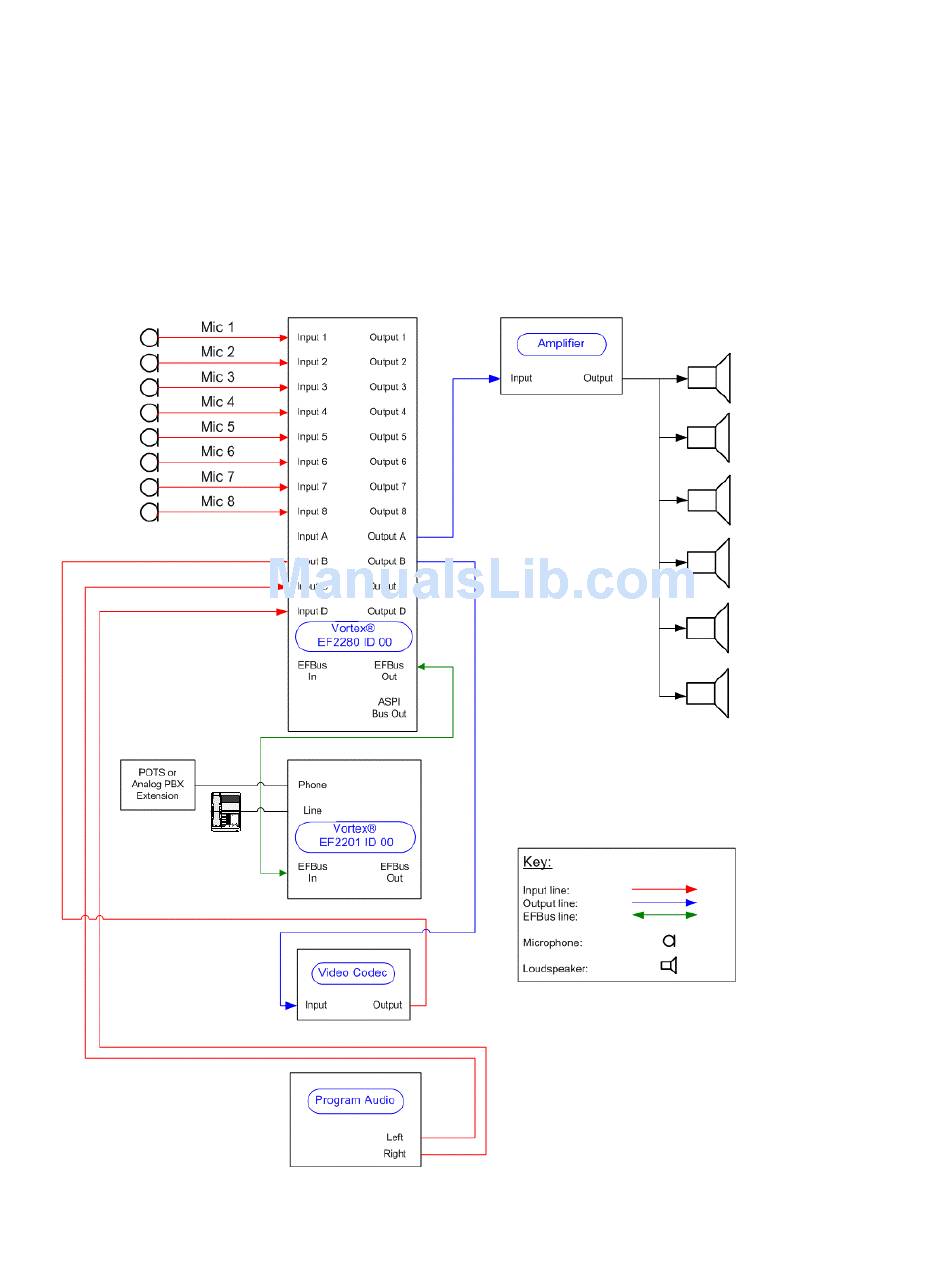

The audio components for the room are 8 tabletop microphones, 1 EF2280, 1 EF2201, 1 video codec, 1

amplifier, 1 program audio source, and 6 ceiling loudspeakers. Each of the microphones will use Inputs 1-

8. The video codec will use Input B / Output B. The program source will use Inputs B and C. The amplifier

will use Output A.
