Wiring From Viewstation Fx To Vortex Device; Input To View Station Fx From Output Of Vortex Device; Output Of View Station Fx To Input Of Vortex Device - Polycom Vortex EF2241 Application Note

4. Go to S
I
YSTEM NFO
W
IRING FROM
The inputs and outputs to most codecs are unbalanced. We recommend keeping the cable
from the Vortex device as short as possible to avoid any common-mode signals that may
corrupt the audio.
I V S
NPUT TO IEW TATION

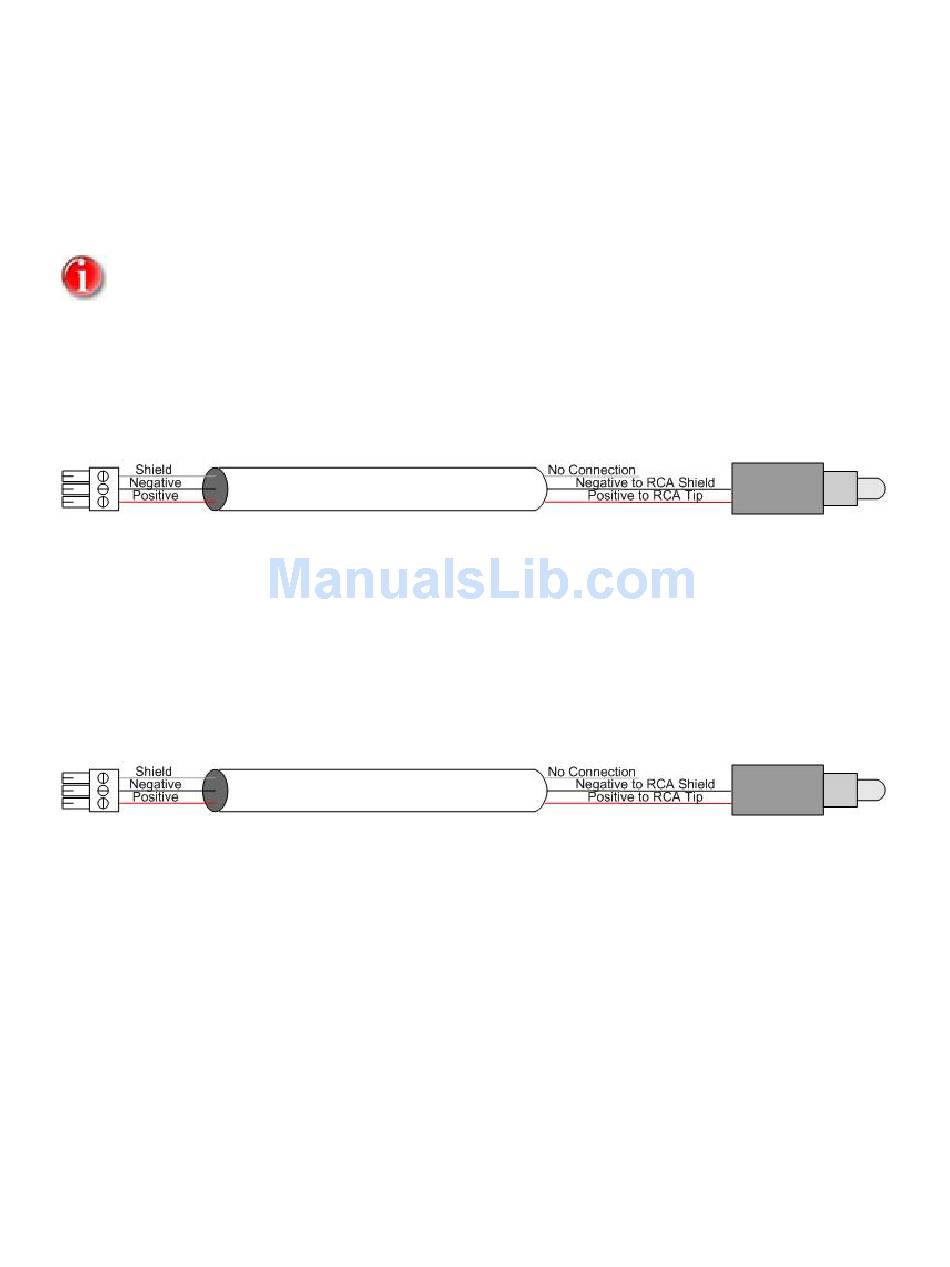

Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
O V S
UTPUT OF IEW TATION
Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
, A S , P A
DMIN ETUP HONE UDIO
V S
IEW TATION
FX O
FROM UTPUT OF
FX I
TO NPUT OF
, and un-check the E
FX V
TO ORTEX
V D
ORTEX EVICE
V D
ORTEX EVICE
C option.
CHO ANCELLER
D
EVICE
40
