1. Go to System, Diagnostics, Audio, Audio Meter and then speak into one of the microphones. Your
level should be around 0 on the Line Input meter. You may also use the loop-back feature to listen
to your own audio in the local room. That feature is under System, Diagnostics, Network, Near End
Loop.
2. Go to System Info, Diagnostics, Audio, Generate Tone to listen to a codec-generated 400 Hz tone.
W
IRING FROM
The inputs and outputs to most codecs are unbalanced. We recommend keeping the cable
from the Vortex device as short as possible to avoid any common-mode signals that may
corrupt the audio.
I VSX 7000
NPUT TO

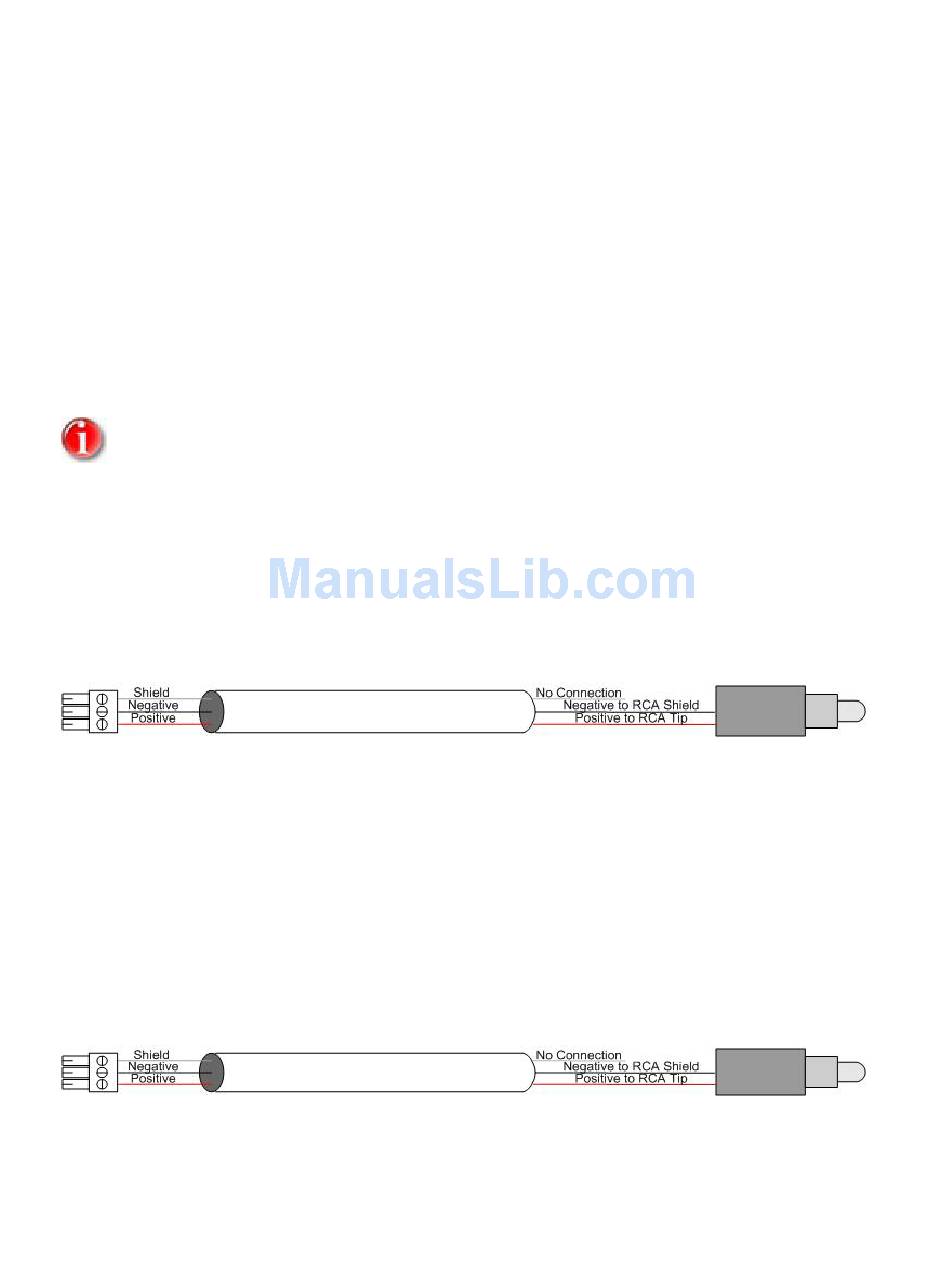

Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
O VSX 7000
UTPUT OF
Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
