Nput To Iower From Utput Of Vortex Device Sing Cbl-Lineaudio ); Nput To Iower From Utput Of Vortex Device Sing Elf Ade Able ); Wiring From Ipower To Vortex Device - Polycom Vortex EF2241 Application Note

W
IRING FROM I
The inputs and outputs to the codec are unbalanced. We recommend keeping the cable
from the Vortex device as short as possible to avoid any common-mode signals that may
corrupt the audio.
I P
NPUT TO I OWER FROM

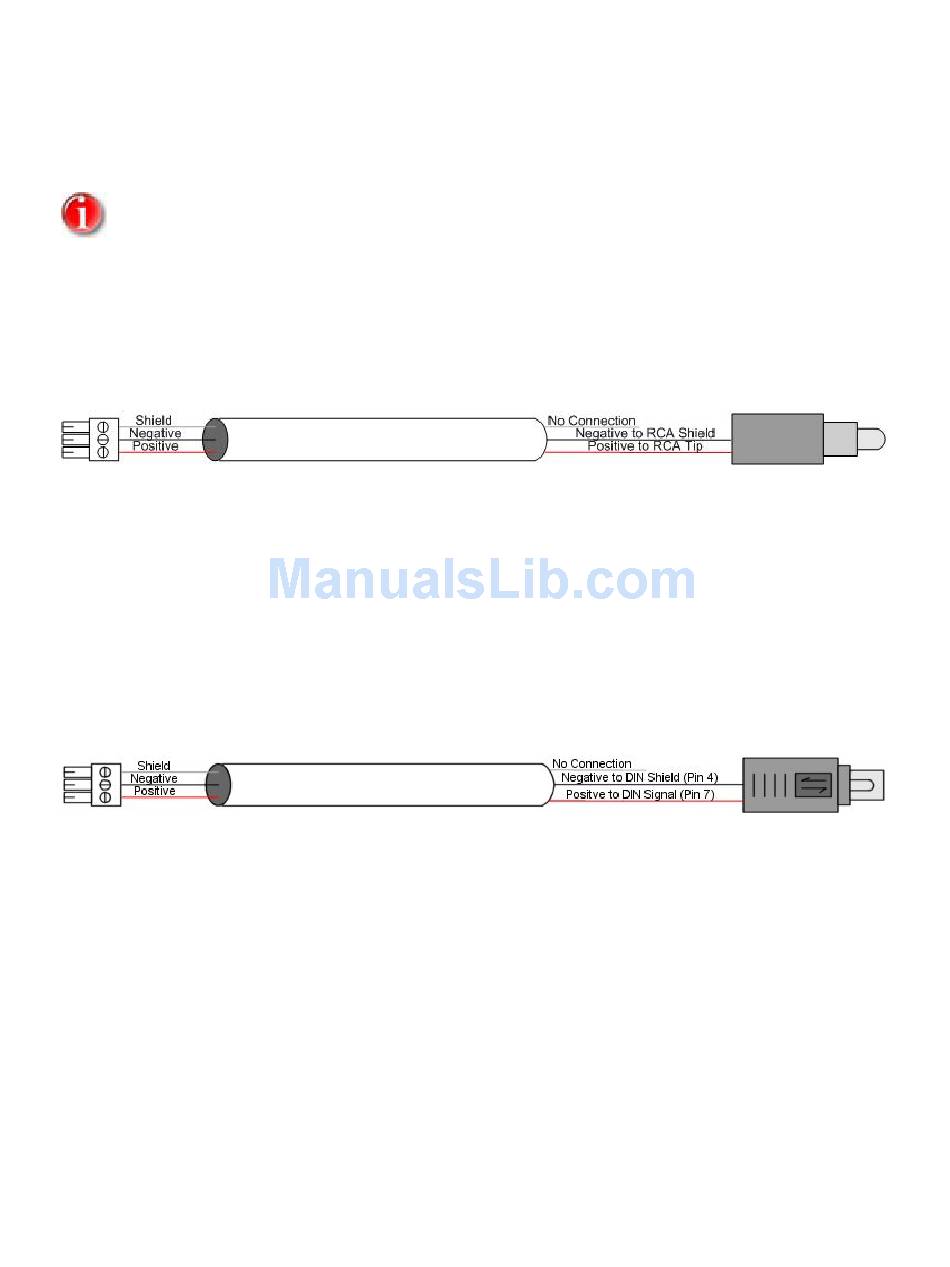

If you are using CBL-LINEAUDIO, connect the Positive conductor of the Vortex device to the Tip of the RCA
connector and the Negative conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
I P
NPUT TO I OWER FROM
Connect the Positive conductor of the Vortex device to Pin 7 of DIN connector and the Negative conductor
of the Vortex device to Pin 4 of the DIN connector.
The shield of the cable is not connected.
P V
OWER TO
O V D
UTPUT OF ORTEX
O V D
UTPUT OF ORTEX
D
ORTEX EVICE
(U CBL-L
EVICE SING
(U S -M
EVICE SING ELF
)
INEAUDIO
C )
ADE ABLE
18
