O P
UTPUT OF I OWER TO
Connect the Positive conductor of the Vortex device to the Tip of the 3.5 mm connector. Connect the
Negative conductor of the Vortex device to the Shield of the 3.5 mm connector. Do not connect the ring of
the 3.5 mm connector to the Vortex device.
The shield of the cable is not connected.
P M C
OWER IC

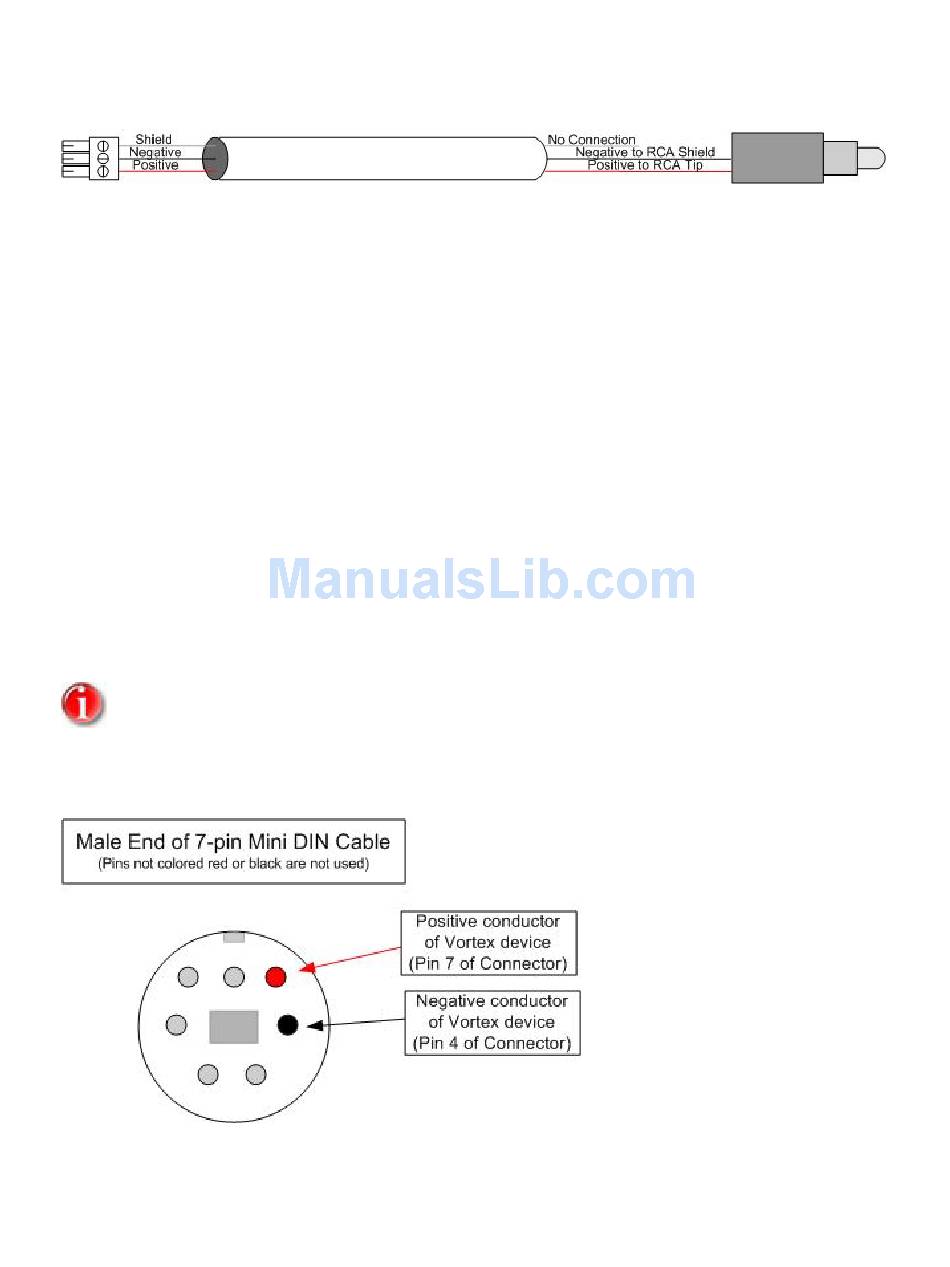

You can make your own PowerMic Interface Cable. You first need a 7-pin Mini DIN connector. Most
electronic supply houses should carry this connector. Once you've obtained the connector, connect the
Positive conductor from the Vortex device to Pin 7 of the DIN connector. Connect the Negative conductor
from the Vortex device to Pin 4 of the DIN connector. Do not connect the shield of the cable to the DIN
connector.
The PowerMic input is unbalanced in this configuration. We recommend keeping the
cable from the Vortex device as short as possible to avoid any common-mode signals that
may corrupt the audio.
I V D
NPUT OF ORTEX
P
ABLE INOUT
EVICE
