Utput Of I Ower To Nput Of Vortex Device; Powermic Cable Pinout - Polycom Vortex EF2241 Application Note

The shield of the cable is not connected.
O P
UTPUT OF I OWER TO

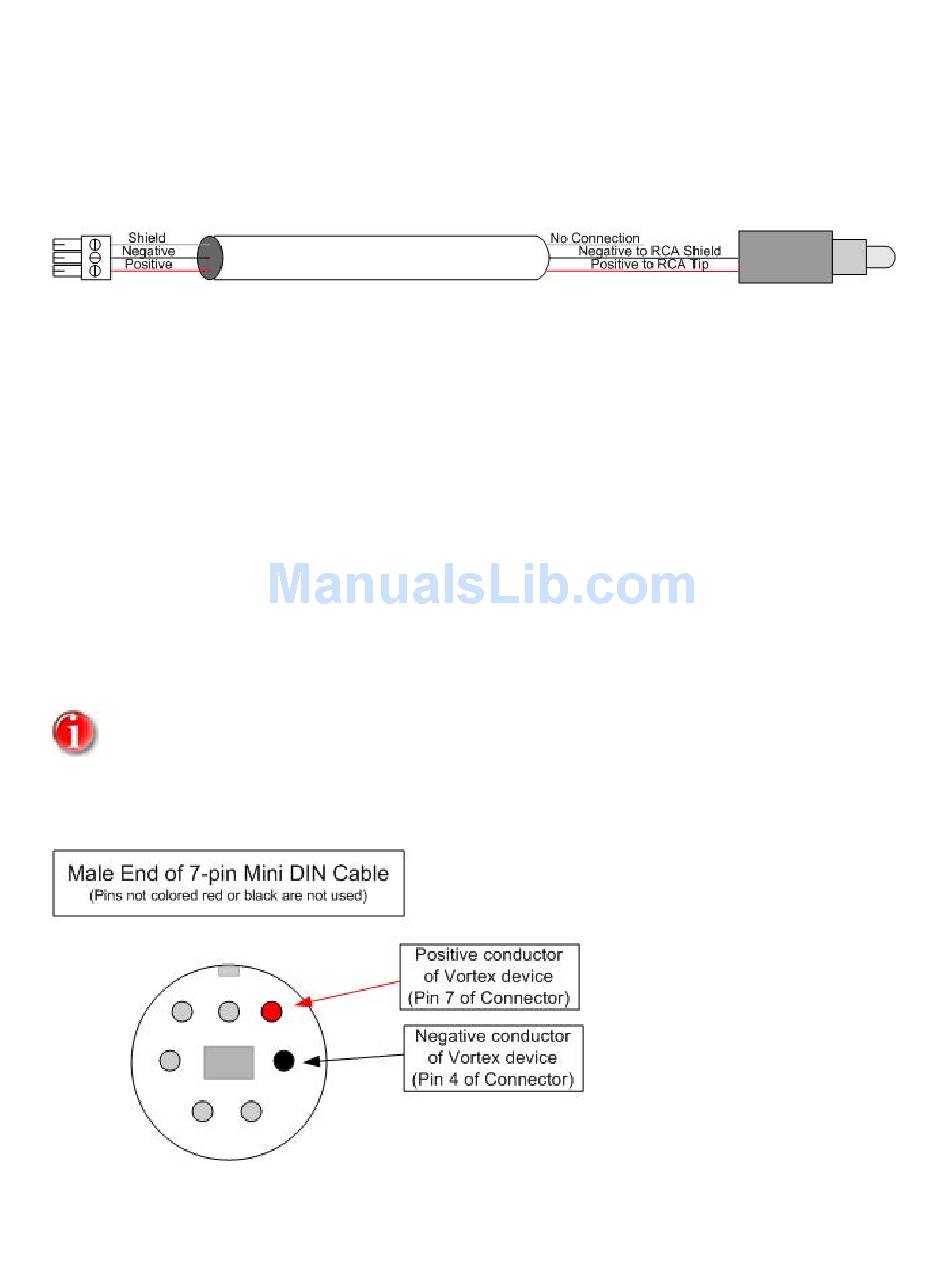

Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
P M
OWER IC
You can make your own PowerMic Interface Cable. You first need a 7-pin Mini DIN connector. Most
electronic supply houses should carry this connector. Once you've obtained the connector, connect the
Positive conductor from the Vortex device to Pin 7 of the DIN connector. Connect the Negative conductor
from the Vortex device to Pin 4 of the DIN connector. Do not connect the shield of the cable to the DIN
connector.
The PowerMic input is unbalanced in this configuration. We recommend keeping the
cable from the Vortex device as short as possible to avoid any common-mode signals that
may corrupt the audio.
